Advanced Dredging Solutions From a Trusted Dredging Equipment Company
Choosing the right dredging equipment company is essential for ensuring efficient dredging performance, long equipment lifespan, and reliable operation in demanding marine and industrial environments. Ace Centro Enterprises (ACE) delivers advanced dredging technologies designed for deep harbor dredging, offshore construction, mining operations, and industrial slurry pumping projects.
One of the leading solutions offered by ACE is the powerful DRAGFLOW DRH400 Self-Propelled Dredge with Steel Cables, engineered to handle the toughest dredging applications with exceptional productivity and durability.
Equipped with the advanced DRAGFLOW HY400 hydraulic dredging pump, the DRH400 provides superior slurry handling capabilities, deep dredging performance, and long-term operational reliability for large-scale dredging projects worldwide.
DRH400 Self-Propelled Dredge With Steel Cables
The DRAGFLOW DRH400 is a modular pontoon dredger designed specifically for heavy-duty dredging operations across marine, mining, oil & gas, and industrial sectors.
Its self-propelled structure and steel cable system ensure excellent maneuverability, operational stability, and precise dredging control in challenging working environments such as ports, canals, offshore platforms, marinas, and industrial waterways.
ACE supplies these advanced dredging systems across the Arabian Gulf, Middle East, and African regions for a wide variety of infrastructure and industrial projects.
Applications of the DRH400 Dredging System
The DRH400 is widely used for:
Deep harbor dredging
Canal and channel cleaning
Offshore platform maintenance
Marina and jetty dredging
Sand reclaiming operations
Mine tailing removal
Quarry dredging
Heavy slurry pumping
Waste pollution control
Oil spill recovery
Bentonite pumping
Sewage and wastewater pumping
Dam and dike construction
Lake and river dredging
Its modular design and robust pumping performance make it suitable for both inland and offshore dredging operations.
Powerful HY400 Hydraulic Dredging Pump Technology

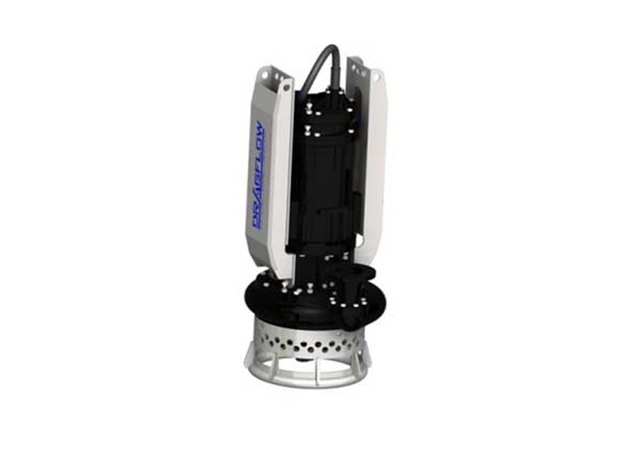

At the core of the DRH400 is the highly efficient DRAGFLOW HY400 hydraulic dredging pump, engineered for handling abrasive and high-density slurry mixtures with ease.
Advanced Agitator System
The innovative agitator design effectively lifts and transfers materials such as:
Mud
Slime
Silt
Sand
Gravel
This ensures continuous dredging performance even in difficult operating conditions.
High-Density Slurry Handling
Dragflow dredging pumps can process slurry mixtures with up to 1.7 specific gravity, making them ideal for industrial, mining, and offshore dredging applications.
Key Technical Features
High Solids Handling Capacity
The DRH400 pump can process solids ranging from 20 mm to 120 mm (5 inches), enabling efficient transfer of abrasive materials.
High Flow Rates
Flow capacities up to 4000 m³/hr support fast and productive dredging operations.
Long Pumping Distances
The system allows pumping distances up to 1500 meters, with extended distances possible using booster pumps.
Deep Dredging Capability
The DRH400 has achieved dredging depths of up to 300 meters in large-scale dam construction and offshore infrastructure projects.
Reduced Wear Operation
Low operating speed reduces wear on internal components, helping extend service life and lower maintenance costs.
Engineered for Durability and Reliability
High Chrome Alloy Wear Parts
All wear components are manufactured from High Chrome Alloy to provide maximum resistance against abrasion and corrosion.
Advanced Seal Protection Technology
The pump incorporates:
Unique lip seal system
Front deflector protection
Teflon layers resistant to high and low pH slurry conditions
These advanced features protect the sealing system from fine particles and extend operational durability.
Precision Machining and Grease Injection
High-precision machining and integrated grease injection points help ensure long sealing system life and improved equipment reliability.
Premium Italian Manufacturing
Pump castings are 100% made in Italy using premium materials and advanced metallurgy for superior long-term performance.
Optional Safety and Monitoring Features
The DRH400 can be equipped with advanced protection systems including:
Embedded motor temperature sensors
Moisture sensors within the oil chamber
These monitoring systems help protect equipment during continuous heavy-duty dredging operations.
Complete Dredging Equipment Solutions From ACE
As a trusted dredging equipment company, ACE also supplies:
Self-propelled dredgers
Telescopic dredgers
Ladder dredgers
Hydraulic submersible dredging pumps
Electric dredging pumps
These systems are widely used for:
Port and harbor maintenance
Offshore construction projects
Canal rehabilitation
Deep-sea dredging
Industrial sediment removal
Mining and quarry operations
ACE delivers customized dredging solutions tailored to the operational requirements of each project.
Why Choose ACE for Dredging Equipment?
Key Advantages
High-performance dredging systems
Advanced HY400 hydraulic pump technology
Deep dredging capabilities up to 300 meters
Long pumping distances up to 1500 meters
Durable High Chrome Alloy construction
Reliable Italian engineering
Reduced maintenance requirements
Strong regional support across the Middle East and Africa
ACE continues to support major marine and industrial infrastructure projects with dependable dredging technologies designed for long-term operational success.
