MX-10 Mixer / Pump: The Ultimate Steel Mill Refractory Repair Equipment for High-Performance Installations

MX-10 Mixer / Pump – Built for Demanding Steel Mill Refractory Repair Equipment Applications

In the steel industry, refractory maintenance is essential for protecting furnaces, ladles, tundishes, and other high-temperature processing equipment. Choosing the right steel mill refractory repair equipment can significantly improve installation quality, reduce downtime, and increase productivity. The MX-10 Mixer / Pump has been the industry standard since 1996, delivering exceptional performance for dense refractory shotcrete and pump cast applications.

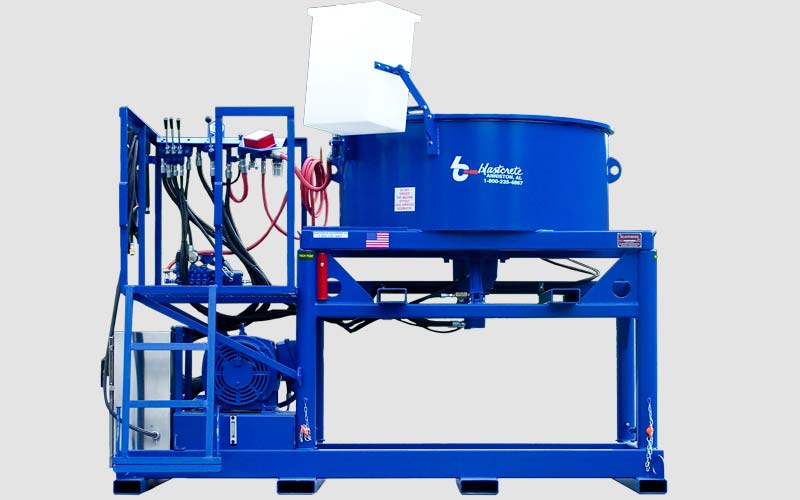

Designed to handle the toughest refractory installation projects, the MX-10 combines a high-torque hydraulic pan mixer with an ultra-high-pressure swing tube piston pump. This powerful combination delivers consistent material flow, superior mixing performance, and production rates of up to 10 tons per hour, making it an ideal solution for steel mills and industrial refractory contractors.

High-Pressure Performance for Critical Refractory Applications

The MX-10 features a 3-inch ultra-high-pressure swing tube pump capable of producing 2,200 PSI piston face pressure, allowing operators to efficiently pump dense refractory materials over 300 feet vertically. This makes it perfectly suited for demanding steel mill maintenance projects where long-distance material delivery is required.

Whether performing refractory pump casting or shotcrete applications, the MX-10 ensures reliable material placement with minimal waste and maximum consistency.

Key Features

The MX-10 Mixer / Pump is engineered to maximize productivity while simplifying maintenance and operation.

Powerful Hydraulic Pan Mixer
2,200 lb. capacity hydraulic pan mixer
High-torque mixing system
Fast 1.5–2 minute mix cycles
Consistent refractory material blending
Ultra High-Pressure Pump
3" × 24" swing tube piston pump
2,200 PSI pumping pressure
Output up to 12 cubic yards per hour
Pumps dense refractory materials over 300 ft. vertically
Easy Maintenance Design

Maintenance is simplified through innovative engineering features including:

Swing-out receiving hopper for quick access
Easy cleaning of swing tube section
Forklift tubing for fast flat-pack removal
Hydraulic hopper agitator for smooth material flow
Reliable Water Control

The MX-10 includes:

Fill Rite water meter
20-gallon dousing bucket
Accurate water introduction for consistent refractory mixes
Engine Power Options

The MX-10 offers multiple power configurations to meet different project requirements.

John Deere 4045T 99 HP water-cooled diesel engine
Deutz BF4M 2012 102 HP water-cooled diesel engine
Dual 40 HP electric motors

These options allow contractors to select the most suitable power source for plant conditions and project demands.

Optional Equipment

Expand the capabilities of your steel mill refractory repair equipment with available options:

2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
Spare tire mounting
Pendant remote control
Wireless remote control
Skid-mounted version with forklift tubing
Technical Specifications
Specification Details
Pump 3" × 24" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Mixer Capacity 2,200 lb. Hydraulic Pan Mixer
Output 0–12 Cubic Yards per Hour
Discharge Size 3"
Hopper Capacity 2,500 lb. Swing-Out Receiving Hopper
Hopper Agitator Hydraulic
Operating Platform 22 sq. ft.
Crane Pickup Central Four-Point Pickup
Electrical System Solid State Valve Control
Trailer Dual 6,000 lb. Axles with Electric Brakes
Dimensions 204" × 88" × 117"
Weight 9,000 lbs.
Why Choose the MX-10?

The MX-10 has earned its reputation as one of the most dependable steel mill refractory repair equipment solutions available. Contractors around the world rely on its:

Proven performance since 1996
High production capacity
Outstanding pumping pressure
Fast mixing cycles
Easy maintenance access
Rugged construction
Reliable solid-state electronics
CE Certification
Exceptional return on investment
Increase Productivity with the MX-10 Mixer / Pump

For steel mills seeking reliable, high-capacity refractory installation equipment, the MX-10 Mixer / Pump delivers unmatched performance. Its advanced mixing technology, ultra-high-pressure pumping capability, and operator-friendly design help reduce maintenance time while improving installation efficiency.

Whether your project involves refractory shotcrete, pump casting, or heavy-duty industrial furnace repairs, the MX-10 is engineered to provide dependable performance in the most demanding environments, making it one of the leading choices for professional steel mill refractory repair equipment worldwide.
