MX-10 Mixer / Pump: Premium Foundry Refractory Equipment for High-Performance Refractory Installations

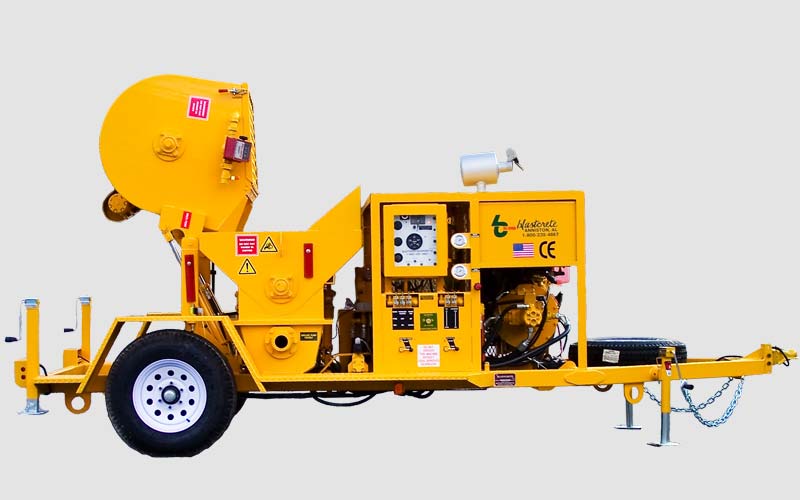

MX-10 Mixer / Pump – Professional Foundry Refractory Equipment

Foundries rely on high-quality refractory linings to protect furnaces, ladles, pouring systems, and heat-processing equipment from extreme temperatures and abrasion. Selecting dependable foundry refractory equipment is essential for efficient refractory installation, reduced maintenance downtime, and long-lasting performance. The MX-10 Mixer / Pump is engineered to meet these demanding requirements, delivering reliable mixing and pumping for dense refractory shotcrete and pump cast applications.

Since 1996, the MX-10 has been recognized as an industry-leading solution for monolithic refractory installations. Its combination of a high-torque hydraulic pan mixer and an ultra-high-pressure swing tube piston pump provides exceptional productivity, material consistency, and durability for foundry maintenance projects.

Built for Demanding Foundry Applications

The MX-10 is designed to handle a wide variety of refractory installation projects within iron, steel, and non-ferrous foundries. It is ideal for applications including:

Induction furnace refractory installation
Cupola furnace refractory repairs
Ladle refractory lining
Tundish refractory maintenance
Pouring spout refractory applications
Holding furnace refractory repairs
Refractory shotcrete installations
Pump cast refractory projects

Its ability to pump dense refractory materials more than 300 feet vertically makes it suitable for complex foundry layouts and elevated installation areas.

Powerful Mixing and Pumping Performance

The MX-10 combines a 2,200 lb. hydraulic pan mixer with a 3-inch × 24-inch ultra-high-pressure swing tube piston pump, generating 2,200 PSI piston face pressure. This powerful combination produces consistent refractory mixes while delivering material at rates of up to 10 tons per hour.

With a fast 1.5 to 2-minute mixing cycle, the MX-10 supports continuous operation, helping maintenance crews complete refractory installations efficiently and minimize production interruptions.

Features Designed for Productivity

The MX-10 incorporates advanced engineering features that improve efficiency while simplifying operation and maintenance.

High-Performance Features
2,200 PSI piston face pressure
3-inch ultra-high-pressure swing tube pump
2,200 lb. capacity hydraulic pan mixer
Production capacity up to 12 cubic yards per hour
Reliable solid-state electronic controls
CE Certified
Easy Maintenance Design

Maintenance is quick and convenient thanks to:

Swing-out receiving hopper for easy access
Simplified cleaning of the swing tube section
Forklift tubing for rapid flat-pack removal
Hydraulic hopper agitator for continuous material flow
Fill Rite water meter for accurate batching
20-gallon dousing bucket for fast water introduction

These features help reduce downtime and improve overall jobsite efficiency.

Flexible Power Options

The MX-10 is available with multiple engine configurations to meet different operating requirements:

John Deere 4045T 99 HP water-cooled diesel engine
Deutz BF4M 2012 102 HP water-cooled diesel engine
Dual 40 HP electric motors

These options allow contractors to choose the most suitable power source for indoor foundries or outdoor maintenance operations.

Optional Equipment

Expand the capabilities of your MX-10 with available accessories, including:

2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
Wireless remote control
Pendant remote control
Spare tire mounting
Skid-mounted version with forklift tubing
MX-10 Technical Specifications
Specification Details
Pump 3" × 24" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Mixer 2,200 lb. Hydraulic Pan Mixer
Output 0–12 Cubic Yards Per Hour
Discharge 3"
Hopper 2,500 lb. Swing-Out Receiving Hopper with Hydraulic Agitator
Operating Platform 22 sq. ft.
Crane Pickup Central Four-Point Pickup (No Spreader Bar Required)
Electrical Controls Solid State Valve Control
Trailer Dual 6,000 lb. Capacity Axles with Electric Brakes and Lights
Dimensions 204" × 88" × 117"
Weight 9,000 lbs.
Why Choose the MX-10 as Your Foundry Refractory Equipment?

The MX-10 has become a trusted solution for refractory contractors and foundry maintenance teams because it delivers outstanding performance in demanding industrial environments.

Key benefits include:

Pumps dense refractory materials over 300 feet vertically
Produces up to 10 tons of material per hour
Fast 1.5–2 minute mixing cycles
High-pressure pumping for refractory shotcrete and pump cast applications
Maintenance-friendly swing-out hopper design
Rugged construction for continuous industrial use
Proven reliability since 1996
Excellent return on investment
Maximize Foundry Productivity with the MX-10 Mixer / Pump

Investing in reliable foundry refractory equipment helps improve installation quality, reduce maintenance downtime, and extend the service life of critical foundry assets. The MX-10 Mixer / Pump combines powerful hydraulic mixing, ultra-high-pressure pumping, and durable construction to meet the demanding requirements of modern foundries.

Whether installing refractory linings in furnaces, ladles, or other high-temperature processing equipment, the MX-10 delivers the efficiency, reliability, and performance needed to complete refractory projects with confidence and precision.
