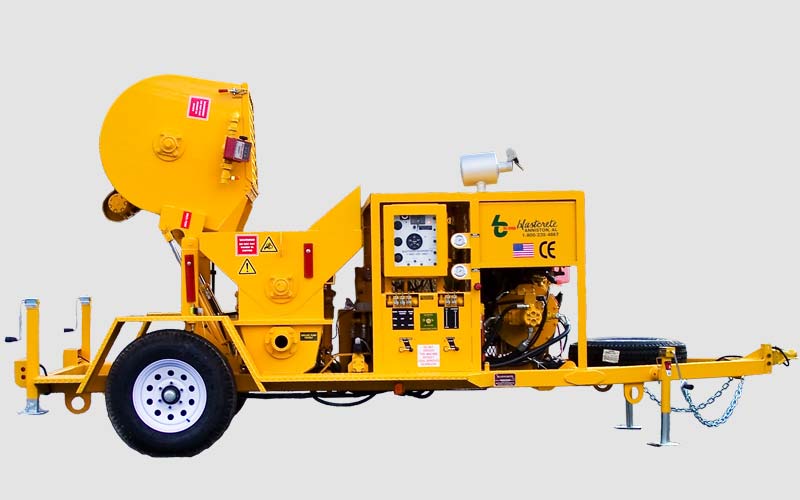

MX-10 Mixer / Pump: Advanced Mining Refractory Installation Equipment for Demanding Industrial Projects

MX-10 Mixer / Pump – Reliable Mining Refractory Installation Equipment

Mining operations rely on high-temperature processing equipment such as furnaces, roasters, smelters, kilns, and converters that require durable refractory linings to withstand extreme heat and abrasive conditions. Choosing dependable mining refractory installation equipment is essential for achieving efficient installations, minimizing downtime, and extending the service life of critical assets. The MX-10 Mixer / Pump is engineered to meet these demanding requirements with exceptional mixing and pumping performance.

Since 1996, the MX-10 has become the industry standard for monolithic refractory installations. Combining a high-torque hydraulic pan mixer with an ultra-high-pressure swing tube piston pump, it delivers consistent refractory material placement for both shotcrete and pump cast applications.

Designed for Mining and Mineral Processing Facilities

The MX-10 is built to support refractory installation and maintenance across a wide range of mining and mineral processing operations, including:

Smelter furnace refractory lining
Roaster refractory installation
Rotary kiln refractory maintenance
Flash furnace repairs
Converter refractory applications
Ore processing furnace maintenance
Refractory shotcrete installations
Pump cast refractory projects

Its ability to pump dense refractory materials more than 300 feet vertically makes it ideal for large mining facilities where equipment is often located at elevated heights or in challenging environments.

High-Pressure Mixing and Pumping Performance

The MX-10 combines a 2,200 lb. capacity hydraulic pan mixer with a 3-inch × 24-inch ultra-high-pressure swing tube piston pump capable of generating 2,200 PSI piston face pressure. This powerful system delivers uniform refractory mixes while producing up to 10 tons of material per hour.

The fast 1.5 to 2-minute mixing cycle helps maintain continuous material flow, allowing maintenance teams to complete refractory installations efficiently during scheduled shutdowns.

Features Built for Productivity

The MX-10 is engineered for durability, ease of operation, and reduced maintenance requirements.

High-Performance Features
2,200 PSI piston face pressure
3-inch ultra-high-pressure swing tube pump
2,200 lb. hydraulic pan mixer
Production rates up to 12 cubic yards per hour
Reliable solid-state electronic controls
CE Certified design
Maintenance-Friendly Construction

Routine servicing is simplified with features including:

Swing-out receiving hopper for easy access
Convenient swing tube cleaning
Forklift tubing for quick flat-pack removal
Hydraulic hopper agitator for smooth material flow
Fill Rite water meter for accurate batching
20-gallon dousing bucket for rapid water introduction

These design elements help reduce maintenance time while improving overall jobsite productivity.

Flexible Power Options

The MX-10 is available with multiple power configurations to suit various mining environments:

John Deere 4045T 99 HP water-cooled diesel engine
Deutz BF4M 2012 102 HP water-cooled diesel engine
Dual 40 HP electric motors

These options provide flexibility for remote mining operations, processing plants, and indoor industrial facilities.

Optional Equipment

Enhance your refractory installation capabilities with available accessories, including:

2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
Wireless remote control
Pendant remote control
Spare tire mounting
Skid-mounted configuration with forklift tubing
MX-10 Technical Specifications
Specification Details
Pump 3" × 24" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Mixer 2,200 lb. Hydraulic Pan Mixer
Output 0–12 Cubic Yards Per Hour
Discharge 3"
Hopper 2,500 lb. Swing-Out Receiving Hopper with Hydraulic Agitator
Operating Platform 22 sq. ft.
Crane Pickup Central Four-Point Pickup (No Spreader Bar Required)
Electrical Controls Solid State Valve Control
Trailer Dual 6,000 lb. Capacity Axles with Electric Brakes and Lights
Dimensions 204" × 88" × 117"
Weight 9,000 lbs.
Why Choose the MX-10 for Mining Refractory Installation?

The MX-10 is trusted by refractory contractors and industrial maintenance professionals because it delivers consistent performance under demanding operating conditions.

Key benefits include:

Pumps dense refractory materials more than 300 feet vertically
Delivers up to 10 tons of refractory material per hour
Fast 1.5–2 minute mixing cycles
Ideal for refractory shotcrete and pump cast applications
Easy-access design for cleaning and maintenance
Heavy-duty construction for continuous industrial use
Proven industry reliability since 1996
Excellent return on investment
Improve Mining Refractory Projects with the MX-10 Mixer / Pump

Selecting the right mining refractory installation equipment is essential for maintaining productivity, reducing downtime, and achieving long-lasting refractory performance. The MX-10 Mixer / Pump combines advanced hydraulic mixing, ultra-high-pressure pumping, and rugged construction to deliver dependable results in the demanding environments of mining and mineral processing.

Whether installing refractory linings in smelters, kilns, furnaces, or converters, the MX-10 provides the power, efficiency, and reliability needed to complete refractory projects safely and successfully.
