Ground stability is a critical factor in mining, tunneling, and infrastructure construction projects. Whether reinforcing rock faces, stabilizing excavation areas, or repairing deteriorating concrete structures, dependable rock stabilization equipment is essential for long-lasting results. The Blastcrete Dampcon Rig is an advanced predampening and dry-process shotcrete system engineered to deliver precise material application for rock stabilization, refractory installations, and concrete rehabilitation.
Designed for productivity, reliability, and ease of operation, the Dampcon Rig helps contractors complete demanding projects with greater efficiency while maintaining high-quality shotcrete placement.
Advanced Shotcrete Technology for Rock Stabilization

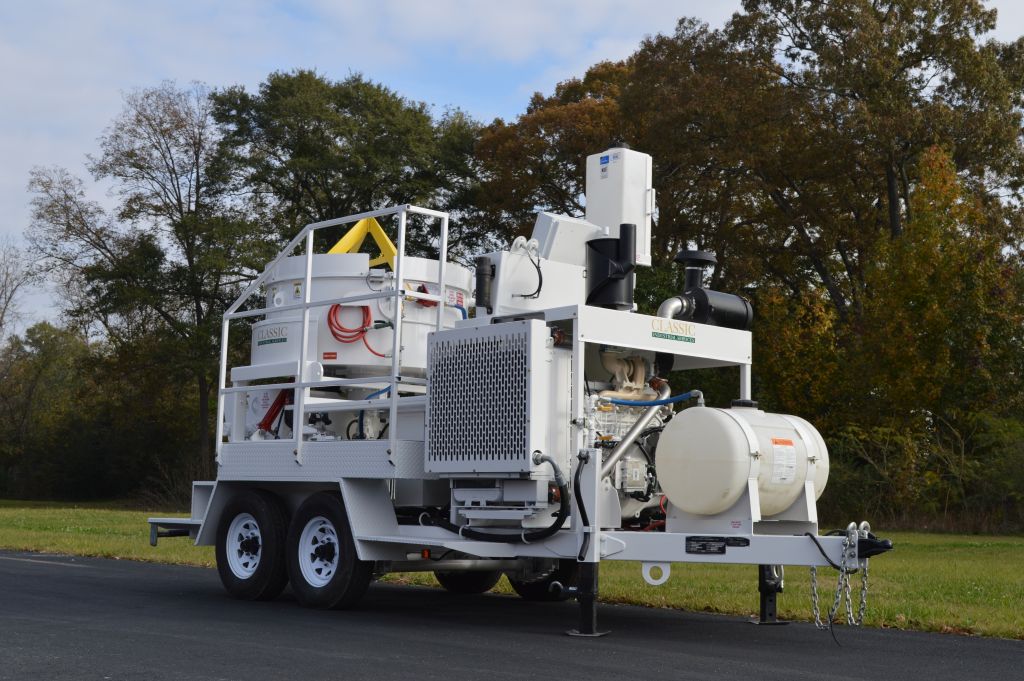

The Blastcrete Dampcon Rig is specifically designed to predampen and install dry-process shotcrete materials. Its integrated system combines a high-capacity paddle mixer, material elevator, and the proven Blastcrete 020 "Piccola" rotary gunite machine to provide consistent material flow and accurate application.
This complete system simplifies the shotcrete process by reducing manual handling, minimizing maintenance requirements, and allowing for quick cleanup after each project.
Why Choose the Dampcon Rig as Rock Stabilization Equipment?
Rock stabilization projects demand equipment that performs reliably in challenging environments. The Blastcrete Dampcon Rig is built to support applications such as:
Rock face stabilization
Underground excavation support
Slope stabilization
Tunnel wall reinforcement
Mine ground support
Retaining wall construction
Structural concrete reinforcement
Infrastructure rehabilitation
Its dry-process shotcrete technology provides excellent control over material placement, helping create durable protective layers that improve the stability of rock surfaces.
Key Features
The Blastcrete Dampcon Rig includes several features that improve productivity and application accuracy:
9 cubic foot capacity paddle mixer with durable rubber wipers for consistent material mixing.
Swing-out mixer for fast and convenient cleaning.
Variable speed controls for the mixer, conveyor, and gunite machine.
Blastcrete 020 "Piccola" rotary gunite machine featuring a reliable single-bolt clamping system.
Production capacity of up to 6 cubic yards of shotcrete material per hour.
These features help operators maintain a steady workflow while producing consistent shotcrete quality throughout the project.
Technical Specifications
The Blastcrete Dampcon Rig is engineered for demanding construction and mining environments with the following specifications:
Length: 205 inches
Width: 75 inches
Charging Height: 51 inches
Weight: 5,500 lbs
Air Requirements: 250 CFM at 80 PSI
Its compact footprint makes transportation and positioning easier on a variety of job sites.
Flexible Power Options
To meet different operational needs, the Dampcon Rig is available with two power configurations:
Kubota V1505 29 HP water-cooled diesel engine
20 HP electric motor with starter and disconnect
These options allow contractors to select the most suitable power source for underground, outdoor, or industrial environments.
Mounting Options
The Blastcrete Dampcon Rig can be configured for greater job site flexibility with:
Dual axle trailer for convenient transportation
Skid-mounted design with forklift pockets for easy relocation
An optional hydraulic water booster pump is also available to support specialized shotcrete applications.
Applications Across Multiple Industries
Beyond rock stabilization, the Blastcrete Dampcon Rig is well suited for a variety of demanding projects, including:
Mining operations
Tunnel construction and rehabilitation
Bridge and highway repairs
Concrete restoration
Refractory gunning installations
Dam maintenance
Industrial infrastructure repairs
Retaining wall construction
Its versatility makes it an excellent investment for contractors handling both underground and surface construction projects.
Benefits of the Blastcrete Dampcon Rig
The Blastcrete Dampcon Rig provides several advantages for construction and mining professionals:
Accurate dry-process shotcrete application
Reliable material mixing and delivery
Reduced equipment maintenance
Faster cleanup between projects
Rugged construction for demanding job sites
Flexible mounting and power options
Proven performance for concrete repair and rock stabilization applications
These benefits help improve operational efficiency while delivering consistent, high-quality results.
