Professional flooring projects require dependable equipment that can efficiently mix, transport, and place gypsum-based materials with precision. A high-quality Gypsum Cement Pump helps contractors achieve consistent results while improving productivity and reducing manual handling.

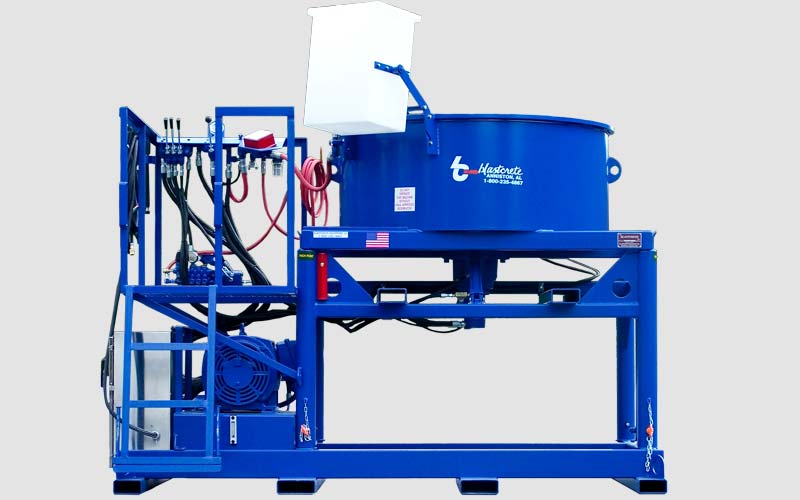

The HBS-1500 Ball Seat Pump from Blastcrete is a powerful mixer and pumping system designed for gypsum flooring applications, underlayment installation, and demanding construction environments. Combining advanced hydraulic pumping technology with an integrated mixer, the HBS-1500 provides reliable performance for professional flooring contractors.
High-Performance Flooring Contractor Equipment
The HBS-1500 is engineered as complete Flooring Contractor Equipment for mixing and pumping gypsum flooring materials over extended distances. Its 4-inch hydraulic ball seat pump delivers up to 1000 PSI line pressure, allowing contractors to pump gypsum materials beyond 600 feet while maintaining consistent flow and performance.
The innovative ball seat pump design helps reduce maintenance costs by minimizing wear on key pumping components. This makes the HBS-1500 a reliable solution for contractors who need durable equipment for continuous flooring operations.
HBS-1500 Ball Seat Pump Technology
The HBS-1500 Ball Seat Pump is designed to deliver powerful pumping performance with reduced maintenance requirements. Its hydraulic pumping system provides dependable material movement for large-scale gypsum and concrete applications.
Key advantages include:
4-inch hydraulic ball seat pump system
Up to 1000 PSI pumping pressure capability
Long-distance material delivery
Reduced wear and maintenance requirements
Easy cleaning and service access
The HBS-1500 can also pump concrete mixes containing aggregate up to 1/2 inch, providing additional versatility for contractors handling different materials.
Integrated Gypsum Cement Pump System
The HBS-1500 combines mixing and pumping into one complete unit, allowing contractors to prepare and place materials efficiently without separate equipment.
The integrated system features:
12 cubic foot hydraulic spiral mixer
30-second mixing cycle
Hydraulic mixer dump capability
26 cubic foot receiving hopper
Hydraulic conveying agitator
The receiving hopper and pump manifold can be easily unclamped from the pumping tubes, allowing quick access for cleaning the ball-seat manifold and pumping lines.
Features of the HBS-1500 Flooring Contractor Equipment
Hydraulic Ball Seat Pump
The 4-inch hydraulic ball seat pump provides strong pressure capability for gypsum cement pumping and long-distance material placement.
Efficient Mixing Performance
The hydraulic spiral mixer ensures consistent material preparation and supports smooth flooring installation processes.
Large Capacity Receiving Hopper
The 26 cubic foot hopper with hydraulic agitator maintains steady material movement and improves pumping efficiency.
Heavy-Duty Construction
The HBS-1500 features a durable tubular frame designed for demanding professional construction environments.
Mobile Trailer Configuration
The dual axle trailer with two braking axles provides stability and convenient transportation between job sites.
Low Maintenance Operation
The ball seat design and economical wear components help reduce downtime and operating expenses.
HBS-1500 Technical Specifications
Length: 234 inches
Width: 92 inches
Height (Water Tank): 93 inches
Height (Mixer Dump Position): 95 inches
Mixer Charging Height: 57 inches
Weight: 8,350 lbs.
Output Capacity: 0–15 cubic yards per hour
Mixer Capacity: 12 cubic feet
Receiving Hopper Capacity: 26 cubic feet
Pump Type: 4-inch Hydraulic Ball Seat Pump
Power Options
The HBS-1500 is powered by:
70 HP Kubota water-cooled diesel engine
Additional configurations are available to support different job requirements.
Available Options
Contractors can customize the HBS-1500 with:
2000 PSI hydraulic pressure washer
Spare tire
Electric power option
Skid mount configuration
Custom paint options
Applications of the HBS-1500 Ball Seat Pump
Gypsum Flooring Installation
The HBS-1500 is ideal for:
Gypsum cement floor applications
Floor underlayment installation
Commercial flooring projects
Self-leveling floor systems
Large-area flooring applications
Professional Construction Applications
The equipment is also suitable for:
Concrete pumping
Floor repair projects
Industrial construction
Specialty material placement
Benefits of Using HBS-1500 Gypsum Cement Pump Equipment
The Blastcrete HBS-1500 helps flooring contractors achieve:
Faster material placement
Consistent gypsum mixing
Long-distance pumping capability
Reduced equipment requirements
Lower maintenance costs
Easy cleaning and servicing
Versatile material handling
