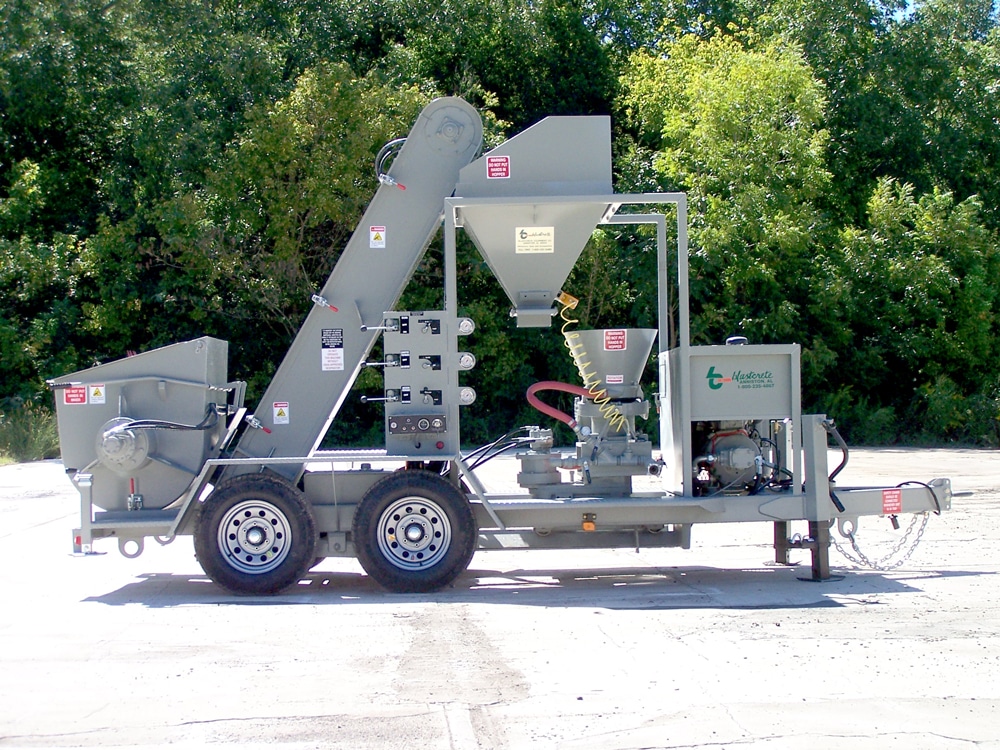

HBS-1500 Ball Seat Pump: Advanced Gypsum Pump Machine for Sale and Concrete Mixing Applications

High-Performance Concrete Mixer Pump for Professional Contractors

The HBS-1500 Ball Seat Pump is a newly engineered mixer and pumping system designed for contractors who need dependable performance, long-distance pumping capability, and efficient material handling. Built for demanding gypsum flooring and concrete applications, this advanced machine combines a powerful hydraulic pump, high-capacity mixer, and durable construction into one complete solution.

For professionals searching for a concrete mixer pump for sale or a reliable gypsum pump machine for sale, the HBS-1500 delivers exceptional versatility, reduced maintenance requirements, and consistent pumping performance.

Powerful Hydraulic Ball Seat Pump System

The HBS-1500 features a 4-inch hydraulic ball seat pump capable of producing up to 1000 PSI line pressure. This high-pressure pumping capability allows contractors to transport gypsum materials over extended distances while maintaining smooth and reliable material flow.

The unique Ball Seat Pump design provides improved durability and helps reduce maintenance costs compared with conventional pumping systems. Lower wear-part expenses and easier servicing make the HBS-1500 a cost-effective choice for professional flooring contractors.

Long-Distance Pumping Performance

Large construction projects often require equipment that can move materials efficiently across challenging job sites. The HBS-1500 is designed for extreme pumping distances and can consistently pump gypsum materials beyond 600 feet.

With production capability of approximately 130 bags per hour, this mixer pump helps contractors complete large flooring installations faster while maintaining consistent material quality.

Integrated Hydraulic Spiral Mixer for Efficient Operation

The HBS-1500 includes a powerful 12 cubic feet hydraulic spiral mixer with an approximate 30-second mixing cycle. This integrated mixing system ensures proper material preparation before pumping, helping contractors achieve uniform results during gypsum flooring installations.

The hydraulic dump function allows quick transfer of mixed material into the receiving hopper, improving workflow and reducing manual handling requirements.

Large Capacity Hopper with Hydraulic Agitation

A 26 cubic feet receiving hopper provides excellent material storage capacity during operation. The built-in hydraulic agitator helps maintain steady material movement and supports uninterrupted pumping performance.

For easier maintenance, the receiving hopper and pump manifold can be unclamped from the pumping tubes, allowing convenient cleaning of the ball-seat manifold and pumping lines.

Versatile Equipment for Gypsum and Concrete Projects

The HBS-1500 is not limited to gypsum applications. It can also pump concrete mixes with aggregate sizes up to 1/2 inch, making it a versatile option for multiple construction requirements.

Typical applications include:

Gypsum flooring installation
Self-leveling floor systems
Commercial flooring projects
Concrete placement work
Industrial construction applications
Large-scale building projects
Features of the HBS-1500 Ball Seat Pump
4-inch hydraulic ball seat pumping system
1000 PSI pump pressure capability
12 cubic feet hydraulic spiral mixer
Hydraulic mixer dump system
26 cubic feet receiving hopper
Hydraulic conveying agitator
Dual axle trailer with two braking axles
Heavy-duty tubular frame design
150-gallon water tank with 2-inch flow meter
Four heavy-duty manual leveling jacks
Low-cost replacement wear parts
HBS-1500 Specifications
Specification Details
Length 234 inches
Width 92 inches
Height (Water Tank) 93 inches
Height (Mixer Dump Position) 95 inches
Mixer Charging Height 57 inches
Weight 8,350 lbs.
Output Capacity 0–15 cubic yards per hour
Mixer Capacity 12 cubic feet
Hopper Capacity 26 cubic feet
Pump Type 4-inch Hydraulic Ball Seat
Power Options and Accessories

The HBS-1500 is equipped with a reliable 70 HP Kubota water-cooled diesel engine to provide strong performance on demanding construction sites.

Available options include:

2000 PSI hydraulic pressure washer
Spare tire package
Electric power option
Skid mount configuration
Custom paint finish
Why Choose the HBS-1500 Concrete Mixer Pump?

Choosing the right pumping equipment can improve productivity, reduce downtime, and increase job-site efficiency. The HBS-1500 combines powerful hydraulic performance with easy maintenance features, making it a practical investment for contractors working with gypsum and concrete materials.

Its long-distance pumping capability, durable design, and versatile application range make it an ideal choice for companies looking for a dependable gypsum pump machine for sale or a professional-grade concrete mixer pump for sale.
