Get a Quote for the HBS-1500 Hydraulic Mixer Pump

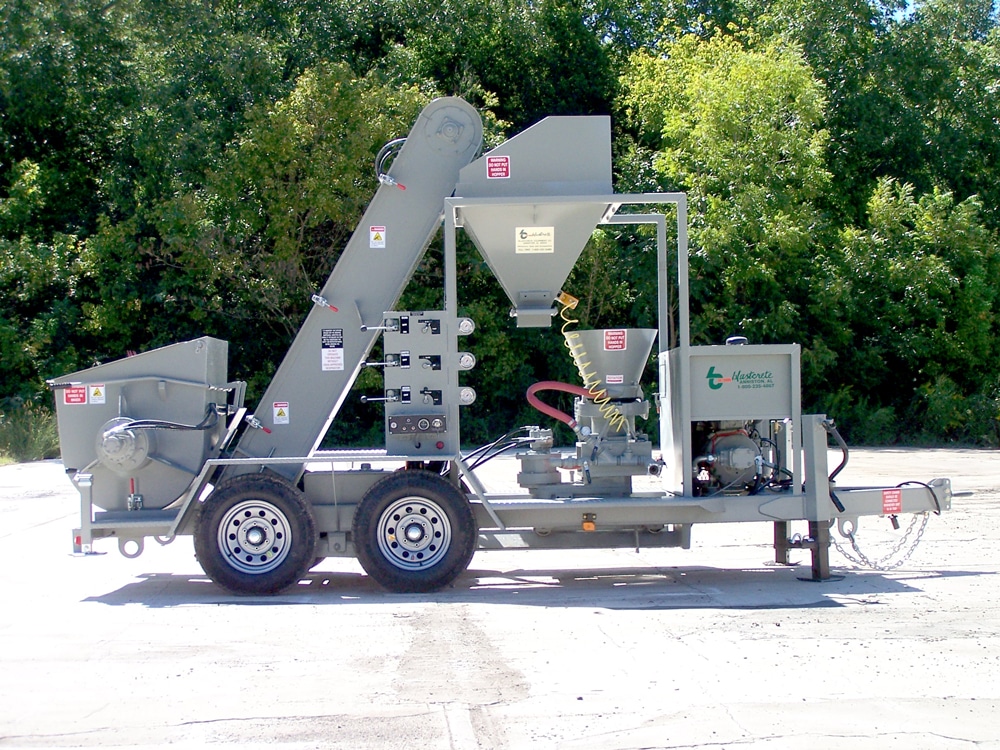

The HBS-1500 Ball Seat Pump is a professional-grade mixer and pumping system designed for contractors who need reliable performance, long-distance pumping capability, and efficient material handling. Built for gypsum flooring and concrete applications, the HBS-1500 combines advanced hydraulic technology with a durable construction design to support demanding commercial and industrial projects.
Contractors looking to request a quote for a concrete pump can rely on the HBS-1500 for consistent output, reduced maintenance requirements, and versatile material pumping performance.
Download the HBS-1500 Brochure for Complete Product Details
The HBS-1500 brochure provides detailed information about the machine’s features, specifications, power options, and available accessories. Reviewing the brochure helps contractors understand how this hydraulic mixer pump can improve productivity and simplify flooring installation operations.
The HBS-1500 is designed to deliver:
High-pressure pumping performance
Long-distance material transportation
Efficient mixing and placement
Easy cleaning and maintenance
Versatile gypsum and concrete applications
Powerful Hydraulic Ball Seat Pump System
At the heart of the HBS-1500 is a 4-inch hydraulic Ball Seat Pump capable of producing up to 1000 PSI line pressure. This high-performance pumping system allows gypsum materials to be transported over extreme distances while maintaining consistent flow and placement quality.
The ball seat design helps reduce maintenance costs by minimizing wear and simplifying service procedures. This makes the HBS-1500 an excellent choice for contractors who need dependable equipment for continuous operation.
Long-Distance Pumping for Large Construction Projects
The HBS-1500 is engineered for applications where pumping distance and reliability are critical. It can consistently pump gypsum materials beyond 600 feet at production rates of approximately 130 bags per hour.
This capability makes the system suitable for:
Large commercial flooring installations
Multi-story construction projects
Industrial facilities
Self-leveling underlayment applications
Professional concrete and gypsum placement work
Integrated Hydraulic Spiral Mixer
The HBS-1500 features a 12 cubic feet hydraulic spiral mixer with an approximately 30-second mixing cycle. The integrated mixer ensures consistent material preparation before pumping, helping contractors achieve uniform installation results.
The hydraulic dump system allows quick transfer of mixed material into the receiving hopper, improving workflow efficiency on busy job sites.
High-Capacity Receiving Hopper Design
The machine includes a 26 cubic feet receiving hopper equipped with a hydraulic agitator. This system helps maintain smooth material movement and supports continuous pumping operations.
The receiving hopper and pump manifold can be unclamped from the pumping tubes, allowing easier cleaning of the ball-seat manifold and pumping lines after completing projects.
HBS-1500 Ball Seat Pump Features
4-inch hydraulic Ball Seat Pump
1000 PSI pump pressure capability
12 cubic feet hydraulic spiral mixer
Hydraulic mixer dump function
26 cubic feet receiving hopper
Hydraulic conveying agitator
Dual axle trailer with two braking axles
Heavy-duty tubular frame
150-gallon water tank with 2-inch flow meter
Four heavy-duty manual leveling jacks
Low-cost wear parts
HBS-1500 Specifications
Specification Details
Length 234 inches
Width 92 inches
Height (Water Tank) 93 inches
Height (Mixer Dump Position) 95 inches
Mixer Charging Height 57 inches
Weight 8,350 lbs.
Output 0–15 cubic yards per hour
Mixer Capacity 12 cubic feet
Receiving Hopper Capacity 26 cubic feet
Pump Type 4-inch Hydraulic Ball Seat
Power Options and Available Accessories
The HBS-1500 is powered by a 70 HP Kubota water-cooled diesel engine, providing dependable operation for demanding construction environments.
Available options include:
2000 PSI hydraulic pressure washer
Spare tire
Electric power option
Skid mount configuration
Custom paint finish
Why Request a Quote for the HBS-1500?
Choosing the right pumping equipment can improve job-site efficiency and reduce operational downtime. The HBS-1500 offers contractors a complete solution by combining mixing, pumping, and material handling capabilities in one durable machine.
Whether you need a concrete pump quote or want to download the HBS-1500 brochure, this advanced Ball Seat Pump system provides the performance, flexibility, and reliability required for modern flooring and construction projects.
HBS-1500 Ball Seat Pump: Request Quote and Download Brochure for Advanced Pumping Performance
