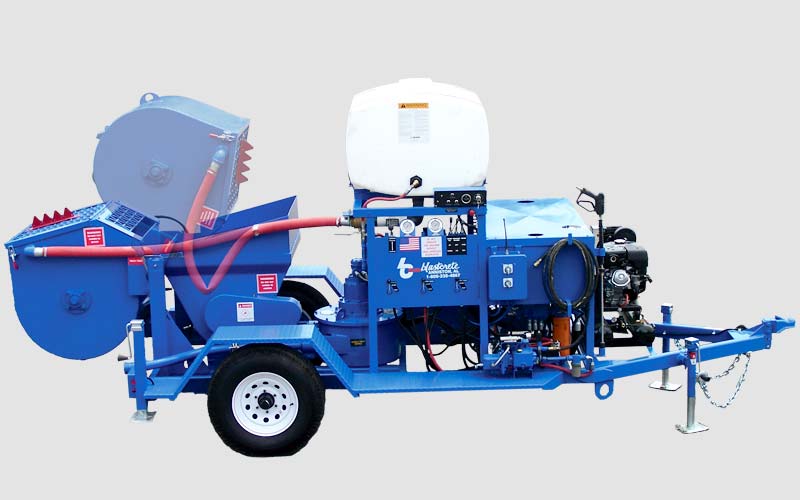

RMX-5000 Trailer Mounted Mixer Pump for Shotcrete and Concrete Applications
The Trailer Mounted Mixer Pump is designed to provide contractors with a powerful, mobile, and efficient solution for mixing and pumping shotcrete, refractory materials, stucco, plaster, and concrete mixtures. The RMX-5000 Mixer/Pump combines an ultra high-pressure 3-inch swing tube pump with advanced hydraulic mixing technology, making it ideal for demanding construction and industrial applications.
Mounted on a durable trailer system, the RMX-5000 offers excellent mobility and job-site flexibility while delivering reliable pumping performance over extended distances.
Mobile Trailer Mounted Pumping Equipment
The RMX-5000 is engineered as a complete trailer mounted mixer pump that can be transported easily between job locations. Its heavy-duty trailer design allows contractors to quickly position the equipment where pumping operations are required.
The trailer-mounted configuration provides:
Easy transportation between projects
Fast job-site setup
Improved equipment mobility
Durable construction for demanding environments
Reliable operation on large-scale projects
This makes the RMX-5000 an excellent choice for contractors working in construction, mining, tunneling, refractory installation, and concrete repair.
High Pressure Swing Tube Pump Technology
The RMX-5000 features a 3-inch x 18-inch ultra high-pressure swing tube pump designed for challenging material pumping applications.
Pumping Performance Features
Pump pressure up to 2,200 PSI
3-inch side discharge outlet
Output capacity from 0–5 cubic yards per hour
High piston face pressure for refractory shotcrete
Designed for long-distance material pumping
The advanced swing tube pumping system ensures consistent material delivery and dependable performance in demanding conditions.
Powerful Hydraulic Mixer System
The RMX-5000 trailer mounted mixer pump provides flexible mixing options for different materials and applications.
Hydraulic Paddle Mixer
The 1,000 lb. capacity hydraulic paddle mixer with planetary gearbox drive is designed for:
Refractory applications
Dense conventional shotcrete
High-performance construction materials
Industrial repair projects
The paddle mixing system delivers uniform material blending and supports consistent pumping results.
Hydraulic Spiral Mixer
The 1,000 lb. capacity hydraulic spiral mixer is designed for:
Conventional shotcrete applications
Stucco pumping
Plaster materials
Cement-based mixtures
This system helps maintain proper material consistency for smooth pumping and spraying operations.
Applications of RMX-5000 Trailer Mounted Mixer Pump
The RMX-5000 is suitable for a wide range of industries and construction projects.
Common applications include:
Shotcrete spraying
Concrete pumping
Tunnel construction
Mining ground support
Refractory installation
Industrial furnace repair
Concrete restoration
Stucco application
Plaster pumping
Infrastructure construction
Commercial and industrial projects
Its mobile trailer design allows operators to bring high-performance pumping capability directly to the work area.
RMX-5000 Trailer Mounted Mixer Pump Features
The RMX-5000 includes advanced features designed for productivity, reliability, and easy maintenance.
Standard Features
Ultra high-pressure 3-inch swing tube pump
2,200 PSI piston face pressure
1,000 lb. hydraulic paddle mixer
Planetary gearbox drive system
1,000 lb. hydraulic spiral mixer option
Hydraulic receiving hopper lift
Easy access to swing tube section for cleaning and maintenance
Fill Rite water meter
3-inch HD side discharge
Reliable solid-state electronics
CE Certification
RMX-5000 Specifications
Specification Details
Pump Type 3" x 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Mixer Capacity 1,000 lb.
Output Capacity 0–5 Cubic Yards Per Hour
Discharge 3" Side Discharge
Hopper Capacity 1,200 lb. Receiving Hopper with Hydraulic Agitator
Trailer Single 6,000 lb. Capacity Axle with Electric Braking and Lights
Dimensions 165" x 76" x 63"
Weight 5,000 lbs
Power Options for RMX-5000
The RMX-5000 trailer mounted mixer pump is available with different power configurations to match project requirements.
Available power options include:
Kubota V3600 66 HP water-cooled diesel engine
50 HP electric motor
These options provide flexibility for both remote construction sites and locations with electrical power availability.
Optional Accessories
The RMX-5000 can be customized with additional equipment options to improve efficiency and convenience.
Available options include:
2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
150-gallon water tank with 2-inch flow meter
Spare tire mounting
Pendant remote control
Wireless remote control
Skid-mounted design with forklift tubing
Advantages of a Trailer Mounted Mixer Pump
A trailer mounted mixer pump provides contractors with a complete mobile mixing and pumping system.
Key benefits include:
Easy transportation
High-pressure pumping capability
Efficient material mixing
Reduced setup time
Reliable operation in demanding environments
Flexible application options
Improved project productivity
Why Choose RMX-5000 Trailer Mounted Mixer Pump?
The RMX-5000 Trailer Mounted Mixer Pump is built for professionals who need dependable performance, mobility, and powerful pumping capability. Its combination of a heavy-duty trailer system, hydraulic mixing technology, and ultra high-pressure swing tube pump makes it an ideal choice for shotcrete, refractory, concrete, and industrial applications.
For contractors requiring a durable mobile pumping solution, the RMX-5000 delivers the performance and versatility needed for challenging construction projects.
Trailer Mounted Mixer Pump RMX-5000 High Performance Mixing and Pumping Solution
