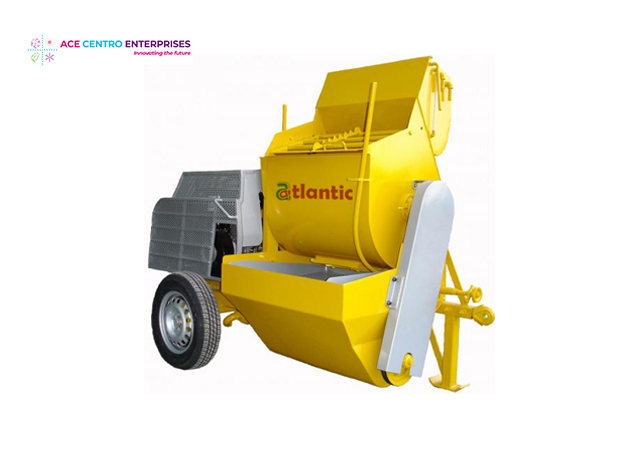

RMX-5000 Dense Refractory Pumping Equipment for Heavy-Duty Applications
The Dense Refractory Pumping Equipment market requires reliable machinery capable of handling high-density refractory materials under extreme operating conditions. The RMX-5000 Mixer/Pump is engineered for demanding refractory applications, providing ultra high-pressure pumping performance, powerful hydraulic mixing, and consistent material delivery.
Designed for refractory installation, dense shotcrete, and industrial repair projects, the RMX-5000 combines a 3-inch swing tube pump system with advanced mixing technology to deliver dependable performance in challenging environments.
Advanced Refractory Material Pumping System
The RMX-5000 is a high-performance refractory pumping equipment solution designed to move dense materials over long distances while maintaining consistent flow and quality.
Its ultra high-pressure pump system delivers:
Up to 2,200 PSI piston face pressure
Reliable pumping of dense refractory materials
Smooth material transfer for shotcrete applications
High-pressure performance for demanding installations
Consistent output during continuous operation
This makes the RMX-5000 suitable for industries requiring precision refractory placement and durable material application.
High Pressure 3-Inch Swing Tube Pump
The RMX-5000 features a 3" x 18" ultra high-pressure swing tube pump designed specifically for heavy-duty pumping operations.
Pump Performance Features
Pump pressure: 2,200 PSI
3-inch side discharge outlet
Output capacity: 0–5 cubic yards per hour
Designed for refractory shotcrete and dense conventional shotcrete
Suitable for extended-distance pumping applications
The swing tube design provides efficient material movement and dependable operation for industrial construction projects.
Hydraulic Mixing System for Dense Refractory Materials
Proper mixing is essential when working with dense refractory materials. The RMX-5000 provides powerful hydraulic mixer options to maintain consistent material quality.
Hydraulic Paddle Mixer
The 1,000 lb. capacity hydraulic paddle mixer with planetary gearbox drive is designed for:
Refractory applications
Dense shotcrete mixtures
Industrial furnace repair
High-temperature material installation
The paddle mixer delivers strong blending performance to achieve uniform refractory mixtures.
Hydraulic Spiral Mixer
The 1,000 lb. capacity hydraulic spiral mixer is designed for:
Conventional shotcrete
Plaster applications
Cement-based materials
General construction mixtures
This flexible mixing system allows the RMX-5000 to support multiple material requirements.
Applications of RMX-5000 Dense Refractory Pumping Equipment
The RMX-5000 is ideal for industries and projects requiring reliable refractory material placement.
Typical applications include:
Furnace and kiln repair
Refractory lining installation
Industrial maintenance
Steel and foundry applications
Power plant repairs
Mining operations
Tunnel construction
Dense shotcrete placement
Concrete restoration
High-temperature industrial projects
The equipment provides contractors with a dependable solution for challenging refractory pumping conditions.
RMX-5000 Features
The RMX-5000 is built with advanced components designed for productivity, durability, and easy maintenance.
Standard Features
Ultra high-pressure 3-inch swing tube pump
2,200 PSI piston face pressure
1,000 lb. hydraulic paddle mixer
Planetary gearbox drive system
1,000 lb. hydraulic spiral mixer option
Hydraulic receiving hopper lift
Easy access to swing tube section for cleaning and maintenance
Fill Rite water meter
Convenient 3-inch HD side discharge
Reliable solid-state electronics
CE Certification
RMX-5000 Technical Specifications
Specification Details
Pump Type 3" x 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Mixer Capacity 1,000 lb.
Output 0–5 Cubic Yards Per Hour
Discharge 3" Side Discharge
Hopper Capacity 1,200 lb. Receiving Hopper with Hydraulic Agitator
Trailer Single 6,000 lb. Capacity Axle with Electric Braking and Lights
Dimensions 165" x 76" x 63"
Weight 5,000 lbs
Power Options for RMX-5000
The RMX-5000 is available with flexible power configurations to meet different job-site requirements.
Available options include:
Kubota V3600 66 HP water-cooled diesel engine
50 HP electric motor
These power options allow the machine to operate effectively in remote construction locations as well as industrial facilities with electrical power availability.
Optional Equipment
The RMX-5000 can be customized with additional accessories to increase efficiency and convenience.
Available options include:
2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
150-gallon water tank with 2-inch flow meter
Spare tire mounted
Pendant remote control
Wireless remote control
Skid-mounted design with forklift tubing
Benefits of Using RMX-5000 Refractory Pumping Equipment
Choosing reliable dense refractory pumping equipment helps improve productivity and material consistency on demanding projects.
Key advantages include:
High-pressure refractory material pumping
Powerful hydraulic mixing capability
Reduced manual material handling
Improved application consistency
Durable industrial construction
Easy maintenance access
Flexible application capabilities
Why Choose RMX-5000 Dense Refractory Pumping Equipment?
The RMX-5000 Mixer/Pump is designed for contractors and industrial professionals who require dependable performance for refractory and dense shotcrete applications. With its high-pressure swing tube pump, heavy-duty hydraulic mixers, and flexible power options, the RMX-5000 provides a complete solution for challenging material placement projects.
For refractory installation, industrial repairs, and heavy-duty construction applications, the RMX-5000 delivers the reliability and performance required in demanding environments.
Dense Refractory Pumping Equipment RMX-5000 High Pressure Mixer Pump for Industrial Applications
