High-Performance Refractory Pump Machine for Shotcrete and Industrial Projects
When looking to buy a shotcrete pump for demanding construction and refractory applications, selecting a reliable machine with powerful pumping capability is essential. The RMX-5000 Mixer / Pump is designed as a heavy-duty refractory pump machine that delivers exceptional performance for refractory shotcrete, dense concrete materials, stucco, plaster, and industrial pumping applications.

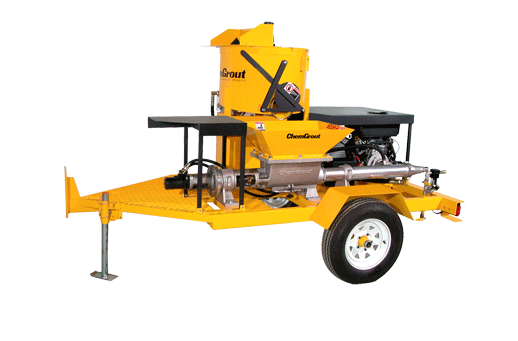

The RMX-5000 combines an ultra high-pressure 3-inch swing tube pumping system with a high-capacity hydraulic mixer, providing contractors with a dependable solution for projects requiring long-distance material placement and consistent output.
RMX-5000 Shotcrete Pump Features
Ultra High-Pressure Pumping Performance
The RMX-5000 is equipped with a 3" x 18" ultra high-pressure swing tube pump designed for challenging applications. With 2,200 PSI piston face pressure, this refractory pump machine provides the power needed for:
Refractory shotcrete applications
Dense conventional shotcrete
Industrial concrete repair
Long-distance pumping operations
Advanced Hydraulic Mixing System
The RMX-5000 provides flexible mixing capabilities with:
1,000 lb. capacity hydraulic paddle mixer with planetary gearbox drive for refractory applications
1,000 lb. capacity hydraulic spiral mixer for conventional shotcrete and plaster applications
This high-capacity mixing system ensures proper material consistency before pumping.
Hydraulic Hopper Lift for Easy Maintenance
The hydraulic receiving hopper lift allows quick access to the swing tube section for cleaning and maintenance. This helps operators improve service efficiency and reduce downtime on active jobsites.
Reliable Construction and Operation
The RMX-5000 includes durable features designed for professional use:
Fill Rite water meter for accurate water control
Convenient 3-inch HD side discharge
Reliable solid-state electronics
CE certification
RMX-5000 Mixer / Pump Specifications
Specification Details
Pump Type 3" x 18" Ultra High Pressure Swing Tube
Pump Pressure 2,200 PSI
Output Capacity 0–5 Cubic Yards Per Hour
Mixer 1,000 lb. Hydraulic Paddle Mixer / 1,000 lb. Hydraulic Spiral Mixer
Discharge 3" Side Discharge
Hopper Capacity 1,200 lb. Receiving Hopper with Hydraulic Agitator
Trailer Single 6,000 lb. Capacity Axle with Electric Braking and Lights
Dimensions 165" x 76" x 63"
Weight Approximately 5,000 lbs
Power Options Available
The RMX-5000 refractory pump machine is available with reliable power configurations:
Diesel Engine Option
Kubota V3600 66 HP water-cooled diesel engine
Electric Motor Option
50 HP electric motor
These options allow users to select the ideal setup for mobile construction sites or stationary industrial applications.
Optional Equipment
The RMX-5000 can be equipped with additional options to improve productivity and convenience:
2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
150-gallon water tank with 2-inch flow meter
Spare tire mounted
Pendant or wireless remote control
Skid-mounted configuration with forklift tubing
Applications of the RMX-5000 Refractory Pump Machine
The RMX-5000 is designed for a wide range of professional applications, including:
Refractory furnace and kiln repair
Shotcrete installation
Mining and tunnel construction
Industrial concrete repair
Stucco pumping
Plaster applications
Heavy-duty construction projects
Why Choose the RMX-5000 When Buying a Shotcrete Pump?
Choosing the right shotcrete pump can significantly improve project efficiency, material consistency, and operational reliability. The RMX-5000 offers a combination of high-pressure pumping power, large-capacity mixing, and durable construction designed for demanding environments.
For contractors and industrial users looking to buy a shotcrete pump, the RMX-5000 Mixer / Pump provides a dependable refractory pump machine solution built for professional performance and long-term use.
Buy Shotcrete Pump RMX-5000 Refractory Pump Machine for Professional Applications
