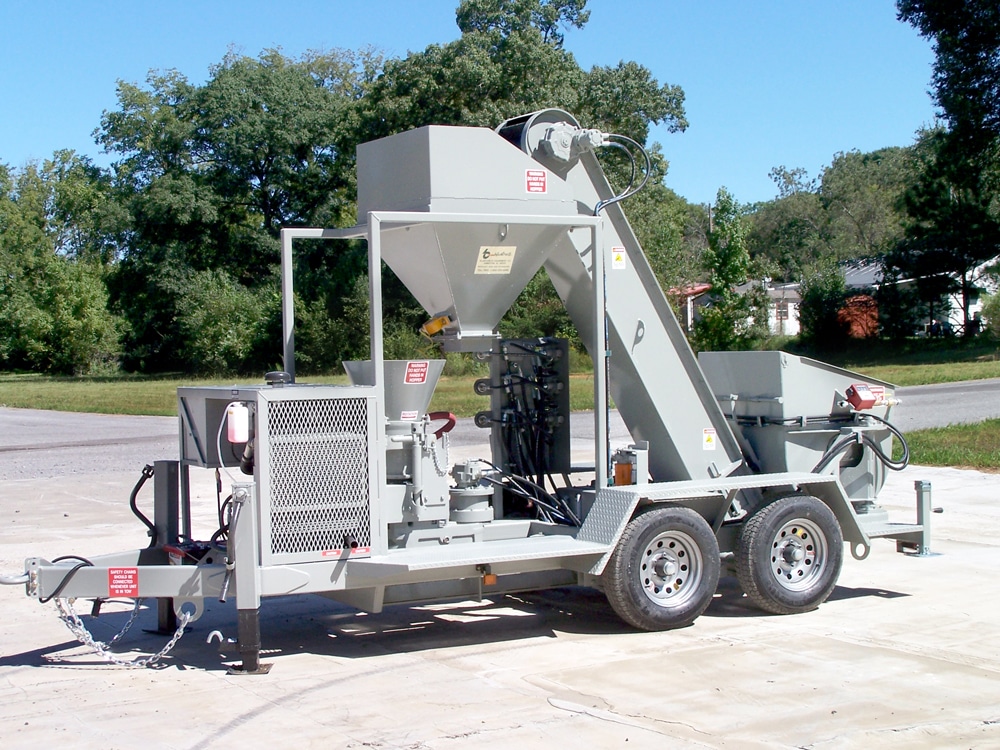

D3522 Grout Mixer Pump: A Durable Squeeze Pump for High-Performance Construction Applications

D3522 Grout Mixer Pump – Efficient Mixing and Reliable Pumping in One Compact Unit

The D3522 Grout Mixer Pump is a powerful all-in-one solution designed for contractors who require dependable mixing and pumping equipment for demanding construction projects. Combining a high-capacity hydraulic mixer with a proven Squeeze Pump system, the D3522 delivers smooth material flow, low maintenance, and exceptional reliability.

Engineered for grout, mortar, cementitious materials, and specialty mixes, the D3522 is ideal for infrastructure, commercial construction, foundation repair, and industrial applications where efficiency and consistent performance are essential.

Advanced Squeeze Pump Technology

At the heart of the D3522 is a 2-inch hydraulic Squeeze Pump that provides infinitely variable pumping speeds from 0 to 6 cubic yards per hour (YPH). Unlike piston pumps that contain multiple wear components, the squeeze pump operates by compressing a durable rubber pumping tube, creating a smooth and continuous flow of material.

This simple yet effective design offers several advantages:

Consistent pumping performance
Reduced maintenance requirements
Lower operating costs
Gentle handling of abrasive materials
Easy replacement of the pumping tube in approximately 20 minutes

These features make the D3522 an excellent choice for contractors seeking dependable equipment with minimal downtime.

High-Capacity Hydraulic Mixing System

The D3522 includes a 9 cubic foot hydraulic spiral mixer that produces uniform material blends for improved pumping performance. The hydraulic dump mechanism allows operators to transfer mixed material quickly into the receiving hopper, helping maintain continuous workflow on the job site.

The machine also features a 12 cubic foot receiving hopper equipped with a hydraulic agitator. This keeps grout and mortar moving smoothly, reducing the risk of material separation or blockages during pumping.

Reliable Power for Demanding Jobs

The standard configuration is powered by a 29 HP Kubota V1505 water-cooled diesel engine, delivering dependable performance in challenging construction environments. For projects where electric operation is preferred, the D3522 is also available with a 20 HP electric motor complete with starter and disconnect.

These power options provide flexibility for both outdoor construction sites and indoor industrial applications.

Key Features of the D3522 Grout Mixer Pump
2-inch hydraulic squeeze pump
Variable output from 0–6 cubic yards per hour
9 cu. ft. hydraulic spiral mixer
Hydraulic dump mixer system
12 cu. ft. receiving hopper
Hydraulic hopper agitator
Heavy-duty planetary gearbox drive
Durable rubber pumping tube
Trailer-mounted for easy transport
Electric braking package
Kubota 29 HP water-cooled diesel engine
Low maintenance and low operating costs
Technical Specifications
Specification Details
Length 204 in.
Width 88 in.
Charging Height 48 in.
Water Tank Height 89 in.
Mixer Dump Height 86 in.
Pump Output 0–6 YPH
Mixer Capacity 9 cu. ft.
Hopper Capacity 12 cu. ft.
Optional Equipment

The D3522 can be customized with accessories that improve productivity and job-site convenience:

Wireless remote control
Pendant remote control
150-gallon water tank with 2-inch flow meter
Hydraulic pressure washer
Dual axle trailer
Mounted air compressor
Spare tire package

These options allow contractors to configure the machine for a variety of project requirements.

Applications

The D3522 Grout Mixer Pump is suitable for numerous construction and industrial applications, including:

Cement grouting
Structural grouting
Foundation stabilization
Void filling
Masonry mortar pumping
Tunnel lining
Bridge rehabilitation
Concrete repair
Infrastructure construction
Industrial flooring
Civil engineering projects
General construction work

Its compact trailer-mounted design makes transportation between job sites fast and convenient.

Why Choose the D3522 Squeeze Pump?

The D3522 stands out because of its efficient squeeze pump design, durable construction, and low lifetime operating costs. Contractors benefit from fewer wear parts, simplified maintenance, and reliable pumping performance, even when handling abrasive materials.

The combination of a hydraulic mixer, receiving hopper with agitator, and heavy-duty planetary gearbox ensures dependable operation throughout long workdays. With its quick tube replacement and user-friendly controls, the D3522 helps maximize uptime and improve overall project efficiency.
