In demanding construction environments, equipment must deliver reliable performance, withstand continuous use, and minimize maintenance interruptions. The D3522 Mixer / Pump is engineered to meet these challenges with a durable pumping tube and a high-performance construction pump designed for efficient material handling. Whether you're pumping grout, mortar, shotcrete, or concrete, the D3522 provides the durability, productivity, and low operating costs that contractors depend on.
Its integrated hydraulic squeeze pump and hydraulic spiral mixer create a versatile solution for projects requiring consistent material flow and dependable operation.
Durable Pumping Tube for Long-Lasting Performance
A durable pumping tube is essential for maintaining consistent pumping efficiency while reducing maintenance expenses. The D3522 features one of the industry's longest-lasting rubber pumping tubes, designed to handle abrasive construction materials with excellent wear resistance.
Benefits of the durable pumping tube include:
Extended service life
Reliable pumping performance
Reduced maintenance costs
Smooth material flow
Simplified replacement procedure
Less jobsite downtime
As the primary wear component of the pump, the rubber pumping tube can be replaced in approximately 20 minutes, allowing operators to quickly resume work and maximize equipment availability.
High-Performance Construction Pump for Demanding Applications
The high-performance construction pump incorporated into the D3522 is built around a 2-inch hydraulic squeeze pump with infinitely variable speed control. This allows operators to precisely adjust pumping output from 0 to 6 cubic yards per hour, making it suitable for a variety of construction applications.
The hydraulic squeeze pump provides:
Consistent material delivery
Efficient hydraulic operation
Reliable pumping under demanding conditions
Lower maintenance requirements
Smooth handling of grout, mortar, concrete, and shotcrete
Its simple design and heavy-duty planetary gearbox contribute to long-term reliability and lower operating costs.

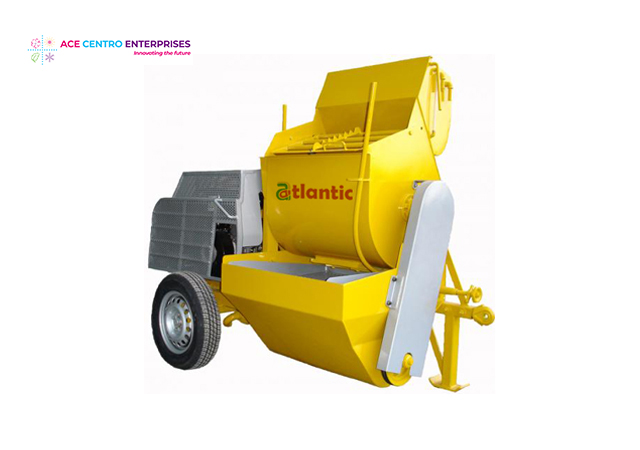

D3522 Mixer / Pump Overview
The D3522 combines mixing and pumping into one compact, trailer-mounted unit for improved jobsite efficiency.
Key components include:
2-inch hydraulic squeeze pump
Variable pumping output from 0–6 YPH
9 cu. ft. hydraulic spiral mixer
Hydraulic mixer dump
12 cu. ft. receiving hopper with hydraulic agitator
High-speed single axle trailer
Electric braking package
Trailer lighting system
This integrated design reduces equipment requirements while improving productivity.
Key Features
The D3522 Mixer / Pump offers a combination of durability, efficiency, and operator convenience.
Hydraulic Spiral Mixer
9 cu. ft. capacity
Hydraulic dump
Clean-out door for easy maintenance
Receiving Hopper
12 cu. ft. capacity
Hydraulic agitator
Convenient clean-out door
Reliable Engine
29 HP Kubota water-cooled diesel engine
Fuel-efficient operation
Dependable hydraulic performance
Efficient Pump Drive
Heavy-duty planetary gearbox
2-inch hydraulic squeeze pump
Smooth and consistent pumping
Long-Lasting Pumping Tube
Durable rubber pumping tube
Approximately 20-minute replacement time
Designed for extended service life
Reduced maintenance downtime
Technical Specifications
Specification Value
Length 204 inches
Width 88 inches
Height (Water Tank) 89 inches
Height (Mixer Dump Position) 86 inches
Charging Height 48 inches
Output Capacity 0–6 YPH
Mixer Capacity 9 cu. ft.
Receiving Hopper Capacity 12 cu. ft.
Power Options
The D3522 Mixer / Pump is available with two dependable power choices.
Kubota Diesel Engine
Kubota V1505
29 HP
Water-cooled diesel engine
Electric Motor
20 HP electric motor
Includes starter and disconnect
Ideal for indoor and enclosed work areas
Optional Equipment
Enhance productivity with available options, including:
Pendant remote control
Wireless remote control
150-gallon water tank with 2-inch flow meter
Spare tire mount
Hydraulic pressure washer
Dual axle trailer
Mounted air compressor
Advantages of the D3522 Mixer / Pump
The D3522 offers numerous benefits that make it a preferred solution for construction professionals:
Durable pumping tube for extended service life
High-performance construction pump with variable output
Quick tube replacement in approximately 20 minutes
Heavy-duty planetary gearbox for dependable operation
Low maintenance requirements
Smooth and consistent material flow
Compact trailer-mounted design
Low ownership and operating costs
Reliable performance on demanding jobsites
Applications
The D3522 Mixer / Pump is ideal for a wide variety of applications, including:
Concrete pumping
Grout pumping
Mortar pumping
Shotcrete projects
Refractory installation
Masonry construction
Foundation repair
Infrastructure development
Industrial maintenance
Durable Pumping Tube and High-Performance Construction Pump: Why the D3522 Mixer / Pump Excels on Every Jobsite
