Construction professionals need equipment that delivers reliable performance, consistent material flow, and low operating costs across a variety of applications. The D3522 Mixer / Pump is engineered as versatile shotcrete equipment and dependable grouting equipment, combining a hydraulic squeeze pump with a hydraulic spiral mixer to provide an efficient all-in-one solution for demanding jobsites.
Designed for pumping grout, mortar, shotcrete, and concrete, the D3522 offers smooth operation, easy maintenance, and the flexibility required for commercial, industrial, and infrastructure projects.
Advanced Shotcrete Equipment for Reliable Performance
As professional shotcrete equipment, the D3522 Mixer / Pump delivers precise and consistent material flow through its 2-inch hydraulic squeeze pump. The infinitely variable pumping speed allows operators to adjust output from 0 to 6 cubic yards per hour, making it suitable for both small repair jobs and large-scale construction projects.
The hydraulic squeeze pump provides several advantages for shotcrete applications:
Smooth and continuous material delivery
Reduced material segregation
Adjustable pumping speed for greater control
Reliable performance during extended operation
Simplified maintenance with fewer wear components
Its durable design helps contractors maintain productivity while reducing equipment downtime.
Efficient Grouting Equipment for Multiple Applications
The D3522 also serves as highly efficient grouting equipment, making it ideal for pumping cement grout, mortar, and other cementitious materials. The integrated hydraulic spiral mixer ensures materials are thoroughly mixed before entering the pumping system, resulting in consistent application quality.
The machine is well suited for:
Foundation grouting
Structural repair
Void filling
Tunnel construction
Bridge rehabilitation
Masonry grouting
Infrastructure maintenance
The rubber pumping tube is the primary wear component and can typically be replaced in approximately 20 minutes, helping minimize service interruptions and maintenance costs.

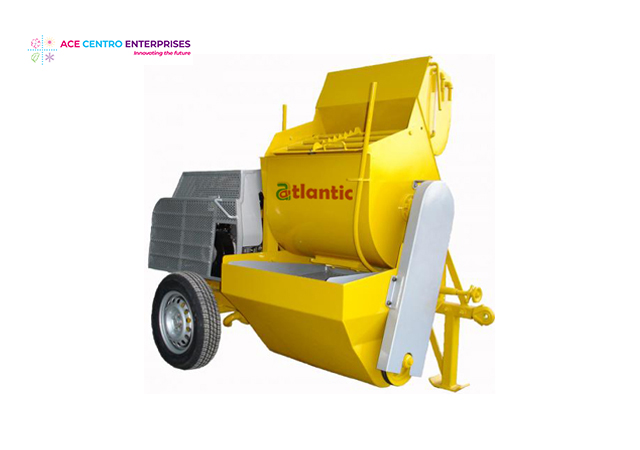

D3522 Mixer / Pump Overview
The D3522 combines mixing and pumping into one trailer-mounted unit for improved efficiency and easier transportation between jobsites.
Key components include:
2-inch hydraulic squeeze pump
Variable pumping output from 0–6 cubic yards per hour
9 cu. ft. hydraulic spiral mixer
Hydraulic dump system
12 cu. ft. receiving hopper with hydraulic agitator
High-speed single axle trailer
Electric braking package
Trailer lighting system
This integrated configuration reduces setup time while improving jobsite productivity.
Key Features
The D3522 Mixer / Pump is equipped with features that support dependable operation in demanding construction environments.
Hydraulic Spiral Mixer
9 cu. ft. capacity
Hydraulic dump
Clean-out door for fast maintenance
Receiving Hopper
12 cu. ft. capacity
Hydraulic agitator
Easy-access clean-out door
Reliable Power System
29 HP Kubota water-cooled diesel engine
Fuel-efficient operation
Proven performance in demanding applications
Hydraulic Squeeze Pump
2-inch pumping system
Heavy-duty planetary gearbox drive
Smooth and efficient material flow
Durable Pumping System
Long-lasting rubber pumping tube
Tube replacement in approximately 20 minutes
Low maintenance requirements
Reduced operating costs
Technical Specifications
Specification Value
Length 204 inches
Width 88 inches
Height (Water Tank) 89 inches
Height (Mixer Dump Position) 86 inches
Charging Height 48 inches
Output Capacity 0–6 YPH
Mixer Capacity 9 cu. ft.
Receiving Hopper Capacity 12 cu. ft.
Power Options
The D3522 Mixer / Pump is available with flexible power options to meet different jobsite requirements.
Kubota Diesel Engine
Kubota V1505
29 HP
Water-cooled diesel engine
Electric Motor
20 HP electric motor
Includes starter and disconnect
Suitable for indoor or enclosed applications
Optional Equipment
Available accessories include:
Pendant remote control
Wireless remote control
150-gallon water tank with 2-inch flow meter
Spare tire mount
Hydraulic pressure washer
Dual axle trailer
Mounted air compressor
Benefits of the D3522 Mixer / Pump
The D3522 delivers numerous advantages for contractors requiring dependable shotcrete equipment and grouting equipment, including:
Combines mixing and pumping in one compact machine
Adjustable pumping capacity from 0–6 YPH
Consistent material flow for shotcrete and grout applications
Heavy-duty planetary gearbox for reliable operation
Durable rubber pumping tube with fast replacement
Low maintenance requirements
Long-lasting wear components
Reduced operating costs
Easy transport between jobsites
High productivity for demanding construction projects
Applications
The D3522 Mixer / Pump is ideal for a wide range of construction and industrial applications, including:
Shotcrete placement
Cement grouting
Mortar pumping
Concrete pumping
Refractory installation
Foundation stabilization
Structural repairs
Tunnel construction
Bridge rehabilitation
Infrastructure development
Masonry projects
Industrial maintenance
