When investing in professional pumping equipment, contractors look for a balance of performance, mobility, durability, and operating cost. The D3522 Mixer / Pump is designed for customers comparing portable grout pump prices and searching for dependable solutions from a concrete pumping equipment distributor.
Combining a hydraulic squeeze pump, hydraulic spiral mixer, and trailer-mounted design, the D3522 provides an efficient all-in-one system for grout, mortar, concrete, and shotcrete applications. Its compact design, low maintenance requirements, and reliable performance make it a valuable choice for construction professionals.
Understanding Portable Grout Pump Price and Value
The portable grout pump price depends on several factors, including pumping capacity, power source, durability, maintenance requirements, and available features. A high-quality grout pumping system should provide long-term value by reducing downtime and operating expenses.
The D3522 Mixer / Pump offers excellent value through:
Integrated mixing and pumping capabilities
Durable hydraulic squeeze pump technology
Long-lasting rubber pumping tube
Simple maintenance procedures
Flexible power options
Easy transportation between jobsites
Instead of purchasing separate mixers and pumps, contractors can use the D3522 as a complete material handling solution.
Choosing the Right Concrete Pumping Equipment Distributor
A reliable concrete pumping equipment distributor helps contractors select equipment that matches their project requirements. The D3522 is engineered to support a wide range of construction applications by providing consistent material delivery and dependable operation.
Important advantages include:
Professional-grade construction
Reliable hydraulic performance
Easy service access
Replacement wear components
Support for multiple pumping applications
The D3522 is designed for contractors who need equipment that performs consistently in demanding environments.

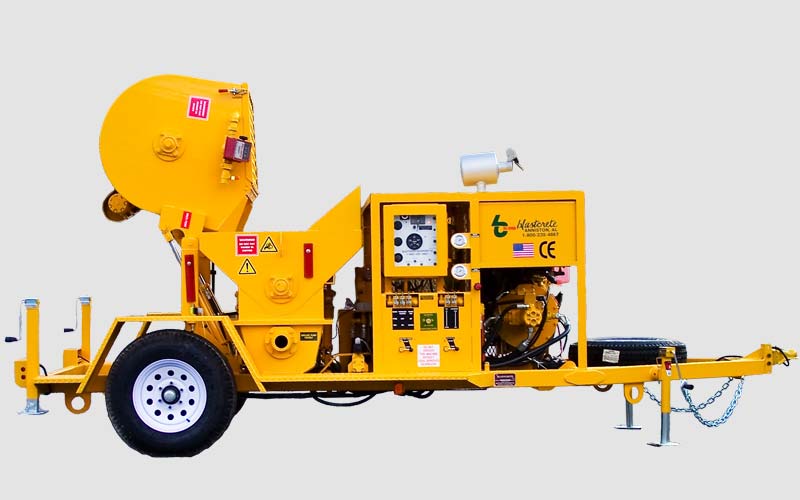

D3522 Mixer / Pump Overview
The D3522 Mixer / Pump combines powerful pumping capability with efficient mixing in a compact trailer-mounted unit.
The system includes:
2-inch hydraulic squeeze pump
Variable speed control from 0–6 cubic yards per hour
9 cu. ft. hydraulic spiral mixer
Hydraulic mixer dump system
12 cu. ft. receiving hopper with hydraulic agitator
High-speed single axle trailer
Electric braking package
Trailer lighting system
The primary wear component is the rubber pumping tube, which can typically be replaced in approximately 20 minutes, helping reduce maintenance downtime.
Key Features
Hydraulic Spiral Mixer
The integrated mixer improves material consistency and productivity.
Features:
9 cu. ft. capacity
Hydraulic dump
Clean-out door for easy maintenance
Receiving Hopper
Designed for efficient material transfer:
12 cu. ft. capacity
Hydraulic agitator
Clean-out door
Reliable Power System
The D3522 provides dependable power options for different jobsite conditions.
Diesel option:
29 HP Kubota water-cooled diesel engine
Efficient hydraulic operation
Suitable for remote construction locations
Hydraulic Squeeze Pump System
The pump system provides:
Smooth material flow
Adjustable pumping speed
Reduced maintenance requirements
Reliable performance with cement-based materials
Durable Pumping Components
The D3522 features:
Long-lasting rubber pumping tube
Approximately 20-minute tube replacement
Reduced operating interruptions
Lower maintenance costs
Technical Specifications
Specification Value
Length 204 inches
Width 88 inches
Height (Water Tank) 89 inches
Height (Mixer Dump Position) 86 inches
Charging Height 48 inches
Output Capacity 0–6 YPH
Mixer Capacity 9 cu. ft.
Receiving Hopper Capacity 12 cu. ft.
Power Options
The D3522 Mixer / Pump is available with multiple power configurations.
Kubota Diesel Engine
Kubota V1505
29 HP
Water-cooled diesel engine
Electric Motor
20 HP electric motor
Starter and disconnect included
Ideal for indoor construction applications
Optional Equipment
Available options include:
Pendant remote control
Wireless remote control
150-gallon water tank with 2-inch flow meter
Spare tire mount
Hydraulic pressure washer
Dual axle trailer
Mounted air compressor
Benefits of the D3522 Mixer / Pump
For contractors comparing portable grout pump prices or selecting equipment through a concrete pumping equipment distributor, the D3522 offers:
Complete mixing and pumping solution
Portable trailer-mounted design
Adjustable pumping output
Reliable hydraulic squeeze pump
Heavy-duty planetary gearbox
Durable rubber pumping tube
Fast tube replacement
Low maintenance operation
Reduced ownership costs
Excellent mobility
Consistent material placement
Applications
The D3522 Mixer / Pump is suitable for:
Grout pumping
Concrete pumping
Mortar pumping
Shotcrete installation
Foundation repair
Masonry construction
Structural rehabilitation
Infrastructure projects
Industrial maintenance
Construction repair applications
