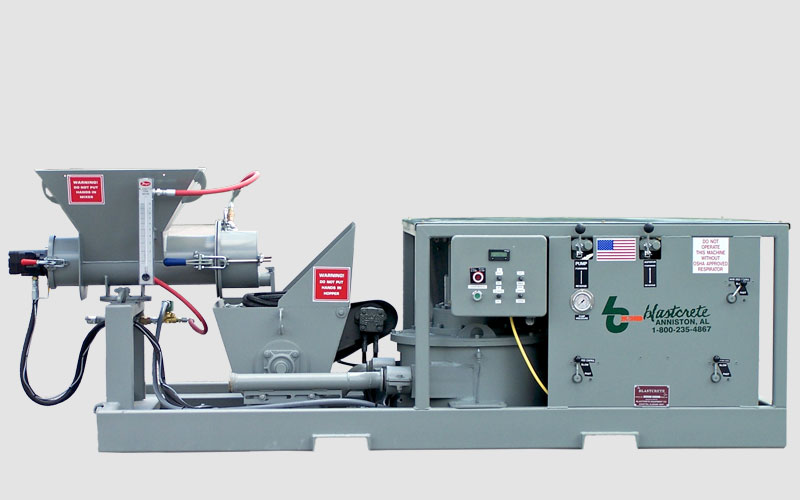

The Blastcrete D3522 Attachment is a specialized pumping solution developed for hot epoxy grouting contractors who already have a hydraulic power unit. Designed for simplicity, durability, and reliable performance, the D3522 Hydraulic Pump can be connected to an existing hydraulic power source to provide variable-speed epoxy pumping.
With a pumping capacity of 0–6 cubic yards per hour and pressure of up to 400 PSI, the D3522 Attachment provides contractors with the performance needed for demanding hot epoxy grouting applications.
D3522 Hydraulic Pump for Professional Grouting Applications
The D3522 Hydraulic Pump is designed around a simple and efficient hydraulic squeeze-pump system. The pump uses a 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox.
This straightforward design makes the D3522 Attachment an attractive option for contractors who want dependable pumping equipment without unnecessary complexity.
The unit is particularly useful for contractors who already own hydraulic power equipment and need an efficient solution for hot epoxy grouting.
How the D3522 Attachment Works
The Blastcrete D3522 Attachment is designed to be coupled directly to a compatible hydraulic power unit. Once connected, the hydraulic system powers the squeeze pump and allows the operator to control the pumping speed.
The pump provides variable output between 0 and 6 cubic yards per hour, giving contractors flexibility when working with different project requirements.
The D3522 Hydraulic Pump can deliver up to 400 PSI pumping pressure, providing substantial pumping capability for professional epoxy grouting work.
Key Features of the Blastcrete D3522 Attachment
1. 2-Inch Hydraulic Squeeze Pump
The D3522 uses a simple 2-inch hydraulic squeeze pump designed for professional pumping applications. The pump is powered through a heavy-duty planetary gearbox.
2. Variable-Speed Pumping
The D3522 Attachment provides variable-speed pumping from 0–6 cubic yards per hour. This allows operators to adjust material flow according to the requirements of the job.
3. Up to 400 PSI Pressure
The D3522 Hydraulic Pump can provide pumping pressure of up to 400 PSI, making it suitable for demanding hot epoxy grouting applications.
4. Hydraulic Power Unit Compatibility
One of the primary benefits of the D3522 Attachment is that it is designed for contractors who already own hydraulic power units. The attachment can be coupled to the hydraulic power source, helping eliminate the need for a separate dedicated power system.
5. Simple Maintenance
The pump is designed for straightforward operation and maintenance. Importantly, epoxy material does not come into contact with the moving parts of the pump. This design helps reduce wear on internal moving components and can contribute to extended equipment life.
6. Long-Lasting Pumping Tubes
The D3522 Hydraulic Pump features durable pumping tubes designed for long service life in demanding pumping environments.
D3522 Attachment Technical Specifications
Specification Details
Model Blastcrete D3522 Attachment
Pump Type 2" Hydraulic Squeeze Pump
Drive Heavy-Duty Planetary Gearbox
Output Capacity 0–6 cubic yards per hour
Maximum Pumping Pressure Up to 400 PSI
Hydraulic Oil Requirement 10 GPM @ 3,000 PSI
Length 76"
Width 37"
Height 39"
Hopper Charging Height 28"
Why Choose a D3522 Hydraulic Pump?
Choosing the right pumping equipment can make a significant difference in the efficiency of a grouting operation. The D3522 Hydraulic Pump is designed for contractors who need a dependable pumping solution while already having access to hydraulic power.
Its simple construction helps make the unit easier to operate and maintain. The variable-speed capability also provides flexibility when different pumping rates are required.
For contractors working with hot epoxy materials, the fact that the epoxy does not come into contact with the moving pump components is another important design advantage.
Applications of the D3522 Attachment
The Blastcrete D3522 Attachment is designed primarily for hot epoxy grouting applications. Its hydraulic-powered design can make it useful for professional contractors working in demanding industrial environments.
Typical application areas can include:
Hot epoxy grouting
Industrial epoxy grouting
Concrete repair
Structural grouting
Industrial maintenance
Heavy-duty epoxy pumping
Professional grouting projects
Hydraulic-powered material pumping
The actual suitability of the equipment should always be evaluated according to the specific material, application, and jobsite requirements.
A Cost-Effective Hydraulic Pumping Solution
For contractors who already own a suitable hydraulic power unit, the D3522 Attachment can provide an economical way to add epoxy pumping capability.
The design focuses on the essential components required for reliable pumping without adding unnecessary complexity. This can help reduce the overall cost of purchasing, owning, and operating the pumping system.
The combination of a hydraulic squeeze pump, heavy-duty planetary gearbox, durable pumping tubes, and straightforward maintenance makes the D3522 Hydraulic Pump a practical option for professional contractors.
Compact Design for Jobsite Use
The Blastcrete D3522 has a length of 76 inches, a width of 37 inches, and a height of 39 inches. The hopper charging height is 28 inches.
Its compact equipment dimensions provide contractors with a manageable pumping unit for professional jobsite applications.
Get Information About the Blastcrete D3522 Attachment
If you are searching for a D3522 Hydraulic Pump or Blastcrete D3522 Attachment for hot epoxy grouting, this equipment provides a hydraulic-powered pumping solution designed for contractors with existing hydraulic power units.
The D3522 offers:
0–6 cubic yards per hour output
Up to 400 PSI pumping pressure
2-inch hydraulic squeeze pump
Heavy-duty planetary gearbox
10 GPM hydraulic oil requirement at 3,000 PSI
Durable pumping tubes
Simple operation and maintenance
No epoxy contact with moving pump components
For pricing and product information, you can use the Quote Now option or review the D3522-A product brochure.
Conclusion
The Blastcrete D3522 Attachment is designed to provide hot epoxy grouting contractors with a reliable hydraulic pumping solution that can work with an existing hydraulic power unit. Its 0–6 cubic yards per hour variable-speed output, up to 400 PSI pumping pressure, and simple squeeze-pump design make it a useful choice for demanding professional applications.
For contractors searching for a D3522 Hydraulic Pump, the D3522 Attachment offers a combination of hydraulic-powered performance, simple maintenance, durable pumping tubes, and a practical design for hot epoxy grouting work.
