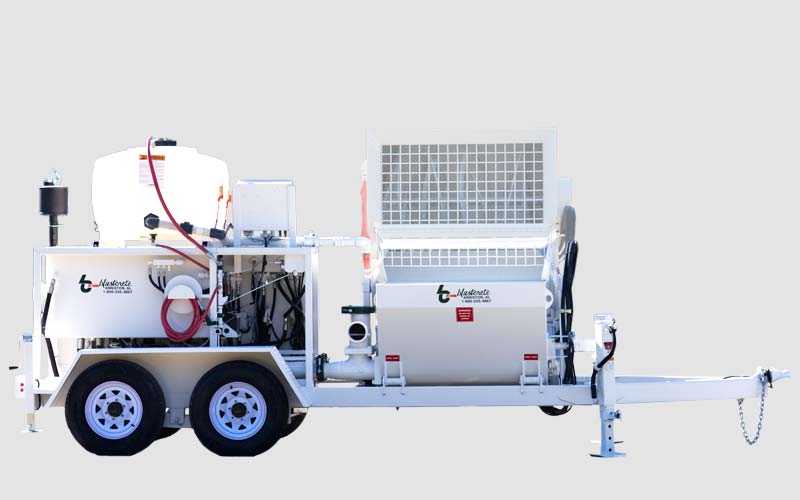

Professional hot epoxy grouting contractors need dependable pumping equipment that can provide controlled material delivery while remaining practical to operate and maintain. The Blastcrete D3522 Attachment is designed for contractors who already own compatible hydraulic power units and need a hydraulic-powered solution for professional hot epoxy grouting applications.
The D3522 provides variable-speed pumping from 0 to 6 cubic yards per hour and delivers up to 400 PSI pumping pressure.
Its Simple Hydraulic Squeeze Pump, heavy-duty planetary gearbox, and long-lasting pumping tubes provide a practical configuration for demanding professional grouting work.
D3522 Attachment for Heavy-Duty Hydraulic Pumping
The D3522 Attachment is designed specifically for hot epoxy grouting contractors who already have compatible hydraulic power equipment.
The attachment can be coupled to a suitable hydraulic power unit and provides adjustable pumping from:
0–6 cubic yards per hour
This variable-speed capability allows operators to control material delivery within the equipment's rated capacity.
For contractors performing professional grouting work, the D3522 offers a straightforward hydraulic-powered pumping configuration.
Heavy Duty Hydraulic Pump Configuration
The D3522 uses hydraulic power to operate its squeeze-pump system.
The specified hydraulic requirement is:
10 GPM @ 3,000 PSI
Contractors should verify that their existing hydraulic power unit meets these requirements before purchasing or operating the attachment.
A compatible hydraulic power source is necessary for the D3522 to operate according to its stated specifications.
Simple Hydraulic Squeeze Pump
One of the main features of the D3522 is its Simple Hydraulic Squeeze Pump.
The pump uses a 2-inch squeeze-pump design driven by a heavy-duty planetary gearbox.
This configuration provides a straightforward mechanism for pumping compatible hot epoxy grouting materials.
The simple design is intended to make the equipment practical to operate and maintain for professional contractors.
Heavy-Duty Planetary Gearbox
The D3522's 2-inch hydraulic squeeze pump is driven by a heavy-duty planetary gearbox.
The gearbox forms an important part of the pumping system and provides the drive mechanism for material delivery.
Combined with long-lasting pumping tubes, the gearbox contributes to the equipment's professional-duty configuration.
Variable-Speed Pumping Capacity
The D3522 provides variable-speed output from:
0–6 cubic yards per hour
The adjustable output gives operators flexibility when controlling material delivery.
The appropriate pumping rate should be selected according to the material specifications, application procedure, and project requirements.
Up to 400 PSI Pumping Pressure
The D3522 can deliver up to:
400 PSI pumping pressure
This provides useful pressure capability for compatible hot epoxy grouting applications.
The maximum pressure should not automatically be considered the required operating pressure. Contractors should follow the epoxy manufacturer's recommendations and applicable project specifications.
Epoxy Material Does Not Contact Moving Pump Parts
An important design feature of the D3522 is that epoxy material does not come into contact with the moving parts of the pump.
This separates the pumped material from key mechanical components.
For contractors looking for a Heavy Duty Hydraulic Pump for epoxy grouting applications, this design characteristic can be an important factor when evaluating equipment for regular professional use.
Long-Lasting Pumping Tubes
The D3522 incorporates long-lasting pumping tubes designed for professional pumping applications.
The pumping tubes work together with the hydraulic squeeze-pump system and heavy-duty planetary gearbox to provide a robust pumping configuration.
For contractors who regularly perform hot epoxy grouting, durable pumping components can be an important equipment consideration.
D3522 Attachment Specifications
Specification D3522 Attachment
Pump Type 2" Hydraulic Squeeze Pump
Drive System Heavy-Duty Planetary Gearbox
Output Capacity 0–6 cubic yards per hour
Maximum Pumping Pressure Up to 400 PSI
Hydraulic Oil Requirement 10 GPM @ 3,000 PSI
Length 76"
Width 37"
Height 39"
Hopper Charging Height 28"
Applications for a Simple Hydraulic Squeeze Pump
The D3522 is designed for hot epoxy grouting contractors. Depending on material compatibility and project requirements, it may be considered for professional applications such as:
Hot epoxy grouting
Industrial grouting
Concrete repair
Structural grouting
Concrete crack repair
Industrial maintenance
Heavy-duty epoxy pumping
Professional construction grouting
Hydraulic-powered material pumping
Contractors should evaluate the specific material and application before selecting the equipment.
Benefits of the D3522 Attachment
Simple Pumping Configuration
The 2-inch hydraulic squeeze pump and heavy-duty planetary gearbox provide a straightforward mechanical arrangement.
Hydraulic-Powered Operation
The D3522 can utilize an existing compatible hydraulic power unit, making it suitable for contractors who already have hydraulic power equipment.
Adjustable Output
The 0–6 cubic yards per hour pumping range provides flexibility in controlling material delivery.
Pressure Capability
The equipment can provide up to 400 PSI pumping pressure for compatible professional applications.
Long-Lasting Pumping Tubes
The D3522 incorporates long-lasting pumping tubes designed for professional pumping applications.
Separation of Epoxy From Moving Components
Epoxy material does not come into contact with the moving pump components, helping isolate the material from important mechanical parts.
Choosing a Heavy Duty Hydraulic Pump
When selecting a Heavy Duty Hydraulic Pump, contractors should evaluate several factors.
Hydraulic Compatibility
The available hydraulic power unit should meet the D3522 requirement of 10 GPM at 3,000 PSI.
Pumping Capacity
The D3522 provides variable output from 0–6 cubic yards per hour.
Pressure Requirements
The pump can deliver up to 400 PSI, while the appropriate operating pressure depends on the selected material and application.
Material Compatibility
The epoxy or grout should be compatible with the pumping equipment and suitable for the intended application.
Maintenance Requirements
Contractors should consider the pump design, pumping tubes, and accessibility of components when evaluating equipment for regular professional use.
D3522 Dimensions
The D3522 Attachment has the following dimensions:
Length: 76 inches
Width: 37 inches
Height: 39 inches
Hopper charging height: 28 inches
These dimensions should be considered when planning transportation, equipment positioning, and jobsite access.
Hydraulic Requirements Before Purchase
Before selecting the D3522 as a Heavy Duty Hydraulic Pump, contractors should confirm that their hydraulic power unit meets the required specifications.
The hydraulic requirement is:
10 GPM @ 3,000 PSI
Contractors should also evaluate:
Epoxy material specifications
Required pumping rate
Required pumping pressure
Material compatibility
Equipment dimensions
Jobsite conditions
Access requirements
Application requirements
Proper equipment selection helps ensure that the pump is suitable for the intended project.
Get Information About the D3522 Attachment
If you are searching for a Heavy Duty Hydraulic Pump or Simple Hydraulic Squeeze Pump, the Blastcrete D3522 Attachment provides a hydraulic-powered pumping solution for contractors with compatible hydraulic power units.
Key specifications include:
Output Capacity: 0–6 cubic yards per hour
Maximum Pumping Pressure: Up to 400 PSI
Pump: 2-inch hydraulic squeeze pump
Drive: Heavy-duty planetary gearbox
Hydraulic Requirement: 10 GPM @ 3,000 PSI
For pricing and product information, visit the Quote Now page.
For additional product information, you can download the D3522-A brochure.
Conclusion
The Blastcrete D3522 Attachment provides a hydraulic-powered pumping solution for professional hot epoxy grouting contractors who already own compatible hydraulic power equipment.
As a Heavy Duty Hydraulic Pump configuration, the D3522 provides variable-speed output from 0–6 cubic yards per hour and pumping pressure of up to 400 PSI.
Its Simple Hydraulic Squeeze Pump, heavy-duty planetary gearbox, and long-lasting pumping tubes provide a practical configuration for compatible professional grouting applications.
The design also keeps epoxy material away from the moving pump components, helping separate the pumped material from key mechanical parts.
Before purchasing or operating the D3522, contractors should verify hydraulic compatibility and confirm that the pump, material, pressure, output, and application requirements are appropriate for the specific project.
