The Blastcrete D6528 is a versatile mixer and pumping machine designed for field batching and material pumping applications. The D6528 concrete mixer pump combines a hydraulic spiral mixer, receiving hopper, and hydraulic squeeze pump into one integrated system.
With a pumping capacity of 0 to 12 cubic yards per hour, the D6528 is designed for contractors who need controlled material output and efficient job-site processing. It is particularly popular for gypsum flooring applications.

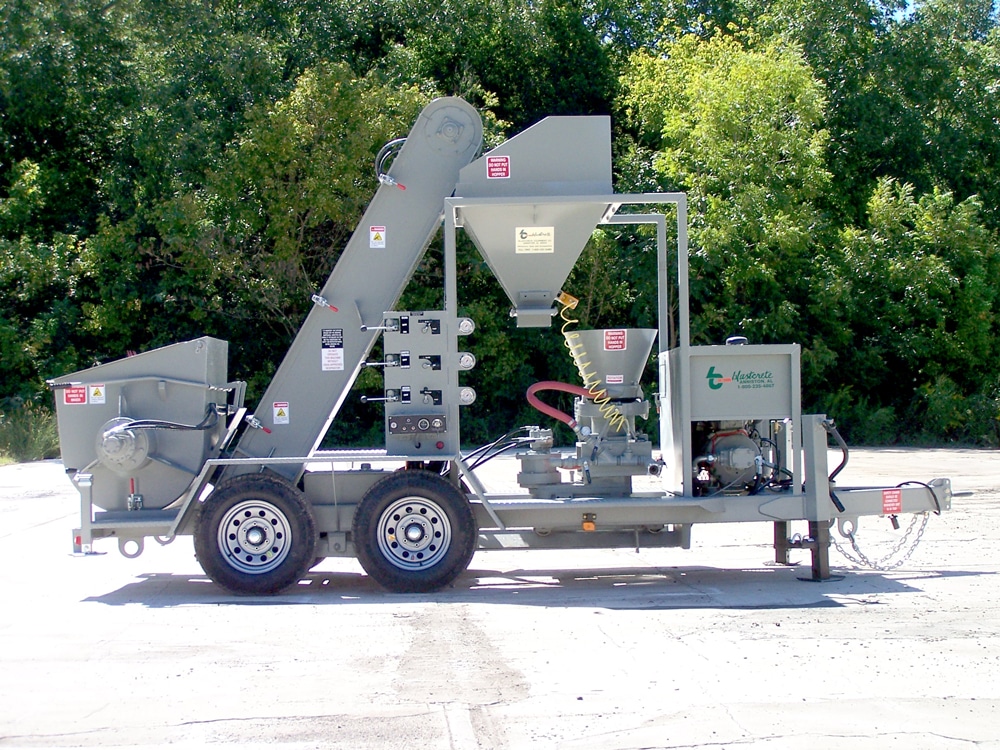

Blastcrete D6528 Concrete Mixer Pump
The D6528 concrete mixer pump is designed to mix and pump material at the job site.
The machine features a 9 cubic foot hydraulic spiral mixer that hydraulically dumps mixed material into a 12 cubic foot receiving hopper. From the receiving hopper, material is pumped using the D6528's 3-inch hydraulic squeeze pump.
This integrated design allows mixing and pumping operations to be performed with one machine.
Up to 12 Cubic Yards Per Hour
The Blastcrete D6528 provides an output range of 0 to 12 cubic yards per hour.
The 3-inch hydraulic squeeze pump features variable-speed operation, allowing operators to adjust pumping output according to project requirements.
This output capacity makes the D6528 suitable for applications requiring consistent and efficient material delivery.
9 Cubic Foot Hydraulic Spiral Mixer
At the beginning of the material-processing cycle is the 9 cubic foot hydraulic spiral mixer.
The mixer features hydraulic dumping and a clean-out door. Once mixing is complete, the hydraulic system dumps material into the receiving hopper.
This arrangement provides an integrated path from material mixing to pumping.
12 Cubic Foot Receiving Hopper
The D6528 incorporates a 12 cubic foot receiving hopper positioned below the hydraulic mixer.
A hydraulic agitator is included in the hopper to help maintain material movement before pumping.
The receiving hopper connects the mixing and pumping stages, supporting continuous material handling during operation.
3-Inch Hydraulic Squeeze Pump
The D6528 uses a 3-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox.
The squeeze-pump system transfers material from the receiving hopper to the delivery line. Variable-speed operation allows the pumping rate to be adjusted from 0 to 12 cubic yards per hour.
This design provides controlled material pumping for professional field applications.
D6528 for Gypsum Flooring
One of the primary applications for the Blastcrete D6528 is gypsum flooring.
The machine's combination of field batching, hydraulic mixing, receiving-hopper agitation, and pumping makes it a practical solution for contractors working with gypsum flooring materials.
Its integrated configuration can simplify job-site operations by combining material preparation and pumping in a single machine.
Blastcrete D6528 Features
The D6528 concrete mixer pump includes:
9 cubic foot hydraulic spiral mixer
Hydraulic mixer dump
Mixer clean-out door
12 cubic foot receiving hopper
Hydraulic hopper agitator
3-inch hydraulic squeeze pump
Heavy-duty planetary gearbox
Variable-speed pumping
0-12 cubic yards per hour output
Field batching capability
Diesel and electric power options
Blastcrete D6528 Specifications
Specification Details
Model D6528 Mixer/Pump
Output 0-12 cubic yards per hour
Mixer Capacity 9 cubic feet
Receiving Hopper 12 cubic feet
Pump 3-inch hydraulic squeeze pump
Length 204 inches
Width 88 inches
Water Tank Height 89 inches
Mixer Height, Dump Position 86 inches
Charging Height 48 inches
D6528 Power Options
The Blastcrete D6528 is available with diesel or electric power.
Diesel Power
The diesel configuration uses a Kubota V1505 29 HP water-cooled diesel engine.
Electric Power
The electric configuration includes a 30 HP electric motor with starter and disconnect.
These power options allow contractors to select equipment according to available job-site power and operating requirements.
Available D6528 Options
The D6528 can be configured with several optional features:
Pendant or wireless remote
150-gallon water tank with 2-inch flow meter
Spare tire mounted
Hydraulic pressure washer
Dual axles
Air compressor mounted
These options can provide additional convenience and flexibility for different project requirements.
Benefits of the Blastcrete D6528
The D6528 combines mixing and pumping capabilities in one machine.
Key features include:
Up to 12 cubic yards per hour output
9 cubic foot hydraulic mixer
12 cubic foot receiving hopper
3-inch hydraulic squeeze pump
Variable-speed pumping
Hydraulic hopper agitator
Diesel or electric power options
Field batching capability
Multiple optional accessories
Suitable for gypsum flooring applications
Why Use a D6528 Concrete Mixer Pump?
A D6528 concrete mixer pump can be useful for contractors who need both field batching and material pumping capabilities.
Rather than using separate equipment for mixing and pumping, the D6528 combines these processes into one integrated machine. Its hydraulic mixer transfers prepared material into the receiving hopper, where the hydraulic squeeze pump delivers it to the application area.
The variable output range provides flexibility for different job-site requirements.
Blastcrete D6528 for Professional Applications
When evaluating a Blastcrete D6528, contractors should consider required production capacity, material type, available power, job-site access, and desired options.
The D6528 offers a 9 cubic foot mixer, 12 cubic foot receiving hopper, and 3-inch hydraulic squeeze pump with output up to 12 cubic yards per hour.
Its configuration is especially suited to gypsum flooring and field-batching applications.
Blastcrete D6528 Concrete Mixer Pump for High-Output Field Batching
