The D6528 is a field batching and pumping machine designed for contractors who need integrated mixing and material delivery. With an output capacity of 0 to 12 cubic yards per hour, the D6528 provides a practical solution for professional applications such as gypsum flooring.
When researching a mixer pump machine price, buyers should consider more than the initial equipment cost. Mixer capacity, pump configuration, power source, optional equipment, transportation, and application requirements can all affect the overall investment.

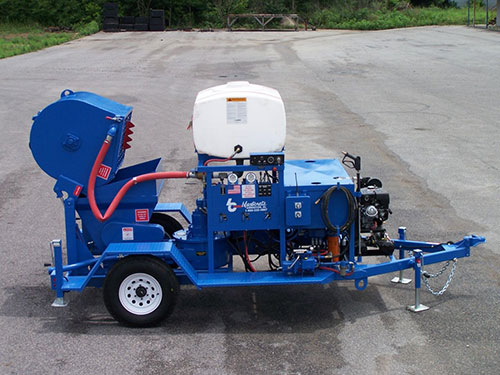

D6528 12 Cubic Yard Per Hour Mixer Pump
The D6528 is designed as a 12 cubic yard per hour mixer pump, combining a hydraulic spiral mixer and hydraulic squeeze pump in one machine.
The equipment includes a 9 cubic foot hydraulic spiral mixer that hydraulically dumps material into a 12 cubic foot receiving hopper. From the hopper, material is transferred through the D6528's 3-inch hydraulic squeeze pump.
The pump provides variable-speed operation from 0 to 12 cubic yards per hour.
12 Cubic Yard Per Hour Pumping Capacity
The D6528 provides a maximum output capacity of 12 cubic yards per hour.
Its variable-speed pumping system allows the operator to adjust output between 0 and 12 cubic yards per hour based on application requirements.
This capability makes the D6528 suitable for field batching and pumping projects where controlled material delivery is required.
9 Cubic Foot Hydraulic Spiral Mixer
The D6528 uses a 9 cubic foot hydraulic spiral mixer for material preparation.
The mixer includes:
Hydraulic spiral mixing
Hydraulic dump
Clean-out door
9 cubic foot capacity
After the material is mixed, the hydraulic system dumps it directly into the receiving hopper.
12 Cubic Foot Receiving Hopper
A 12 cubic foot receiving hopper receives material from the hydraulic mixer.
The hopper includes a hydraulic agitator designed to maintain material movement before pumping.
This arrangement connects the mixing and pumping stages and allows material to move through the machine as part of an integrated process.
3-Inch Hydraulic Squeeze Pump
The D6528 uses a 3-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox.
The variable-speed pump provides an output range of 0 to 12 cubic yards per hour.
The pumping system is designed to deliver mixed material from the receiving hopper to the application area.
D6528 for Gypsum Flooring Applications
The D6528 is a popular solution for gypsum flooring applications.
By combining field batching, hydraulic mixing, receiving, and pumping, the machine provides contractors with an integrated approach to material handling.
The appropriate equipment configuration should be selected according to the specific material and project requirements.
Mixer Pump Machine Price
The mixer pump machine price can depend on the selected configuration, power option, accessories, and other purchasing factors.
For this reason, buyers should request current pricing rather than relying on an outdated published figure.
When evaluating the cost of a D6528, consider:
Base machine configuration
Diesel or electric power
Remote-control option
Water tank
Hydraulic pressure washer
Dual axles
Air compressor
Transportation requirements
Application-specific accessories
Requesting a detailed quotation can help provide a more accurate picture of the total equipment investment.
D6528 Features
The D6528 Mixer/Pump includes:
9 cubic foot hydraulic spiral mixer
Hydraulic mixer dump
Mixer clean-out door
12 cubic foot receiving hopper
Hydraulic hopper agitator
3-inch hydraulic squeeze pump
Heavy-duty planetary gearbox
Variable-speed pumping
0-12 cubic yards per hour output
Field batching capability
D6528 Specifications
Specification Details
Model D6528 Mixer/Pump
Maximum Output 12 cubic yards per hour
Output Range 0-12 cubic yards per hour
Mixer Capacity 9 cubic feet
Receiving Hopper 12 cubic feet
Pump 3-inch hydraulic squeeze pump
Length 204 inches
Width 88 inches
Water Tank Height 89 inches
Mixer Height, Dump Position 86 inches
Charging Height 48 inches
D6528 Power Options
The D6528 is available with diesel or electric power.
Diesel Configuration
Kubota V1505
29 HP
Water-cooled diesel
Electric Configuration
30 HP electric motor
Starter and disconnect
The available configurations allow contractors to select a power source suitable for their operating environment.
D6528 Options
The machine can be equipped with several optional features:
Pendant or wireless remote
150-gallon water tank with 2-inch flow meter
Spare tire mounted
Hydraulic pressure washer
Dual axles
Air compressor mounted
These options can be selected according to project requirements and desired machine configuration.
Benefits of the D6528 Mixer Pump
The D6528 provides an integrated solution for field batching and pumping.
Key characteristics include:
Up to 12 cubic yards per hour output
9 cubic foot hydraulic mixer
12 cubic foot receiving hopper
3-inch hydraulic squeeze pump
Variable-speed material delivery
Hydraulic hopper agitation
Diesel or electric power options
Multiple optional accessories
Suitable for gypsum flooring applications
How to Evaluate a Mixer Pump Machine
When researching a mixer pump machine price, contractors should compare the complete equipment configuration rather than looking only at the base price.
Consider the following:
Production Capacity
Confirm that the machine's output meets the required production rate. The D6528 provides up to 12 cubic yards per hour.
Mixer Capacity
The D6528 features a 9 cubic foot hydraulic mixer.
Hopper Capacity
The receiving hopper provides 12 cubic feet of capacity.
Pump Type
The D6528 uses a 3-inch hydraulic squeeze pump with variable-speed operation.
Power Requirements
Choose the diesel or electric configuration according to the available operating environment.
Optional Equipment
Determine whether remote controls, water tanks, pressure washers, dual axles, or air compressors are needed.
D6528: High-Capacity Mixing and Pumping
The D6528 12 cubic yard per hour mixer pump combines field batching, hydraulic mixing, material receiving, and pumping in one machine.
Its 9 cubic foot mixer and 12 cubic foot receiving hopper work with the 3-inch hydraulic squeeze pump to provide controlled material delivery up to 12 cubic yards per hour.
For contractors comparing equipment and mixer pump machine price, obtaining a current quotation based on the required configuration is the best way to determine the total purchase cost.
12 Cubic Yard Per Hour Mixer Pump: D6528 Mixer Pump Machine
