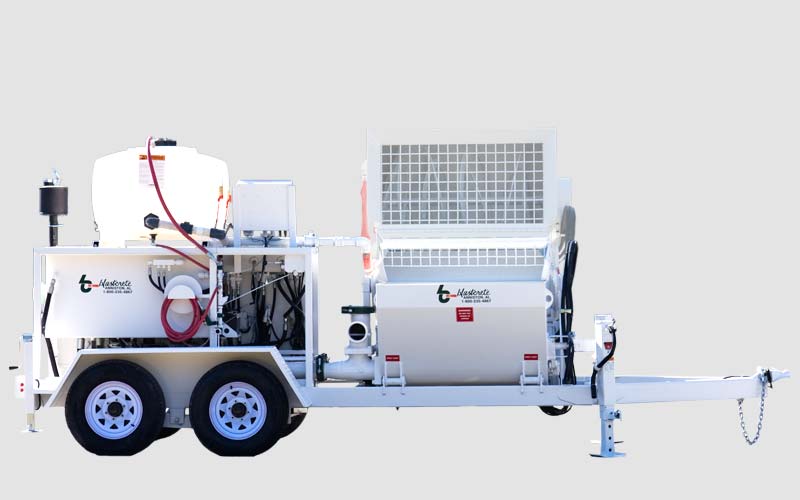

When contractors depend on pumping equipment for demanding field applications, durability and consistent operation are important considerations. The D6528 Mixer/Pump combines field batching and pumping capabilities with durable pumping components, including long lasting pumping tubes designed to support reliable material delivery.
With an output capacity of up to 12 cubic yards per hour, the D6528 integrates a hydraulic spiral mixer, receiving hopper, and hydraulic squeeze pump into one machine. It is a popular solution for applications such as gypsum flooring where efficient material mixing and pumping are essential.
What Is the D6528 Mixer/Pump?
The D6528 is designed for field batching and pumping compatible materials. The machine features a 9-cubic-foot hydraulic spiral mixer that hydraulically dumps material into a 12-cubic-foot receiving hopper.
From the receiving hopper, material is transferred through a 3-inch hydraulic squeeze pump. The pump provides variable-speed operation from 0 to 12 cubic yards per hour, allowing operators to control the material output according to project requirements.
This integrated design combines mixing and pumping into one practical system for field applications.
Long Lasting Pumping Tubes
One of the notable features of the D6528 is its long lasting pumping tubes.
Pumping tubes are an important component of squeeze-pump systems because they are directly involved in the material delivery process. Durable tubes can help support consistent equipment operation and reduce the frequency of tube replacement under suitable operating conditions.
The D6528 is designed with pumping tubes intended for long-term use, helping contractors get dependable service from an important wear component of the pumping system.
For contractors specifically searching for long lasting pumping tubes, the D6528 provides a pumping configuration focused on durability and practical maintenance.
3-Inch Hydraulic Squeeze Pump
The D6528 uses a 3-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox.
The hydraulic pumping system provides variable output from 0 to 12 cubic yards per hour. This allows operators to regulate pumping speed based on the requirements of the project.
The squeeze-pump design, combined with durable pumping tubes, provides an integrated material delivery system for compatible field-batching applications.
9-Cubic-Foot Hydraulic Spiral Mixer
The D6528 includes a 9-cubic-foot hydraulic spiral mixer.
The hydraulic mixer is designed to prepare material before transferring it into the receiving hopper. Once mixing is complete, the mixer hydraulically dumps its contents into the hopper.
A hydraulic clean-out door is also included to make routine cleaning easier and help operators maintain the equipment between jobs.
12-Cubic-Foot Receiving Hopper
The mixed material is transferred into the D6528's 12-cubic-foot receiving hopper.
The hopper is equipped with a hydraulic agitator that helps manage the material before it enters the squeeze pump. The combination of the 9-cubic-foot mixer and 12-cubic-foot receiving hopper provides an integrated workflow from batching to pumping.
This design can help simplify field operations by combining material preparation and delivery in one machine.
Variable Pumping Capacity
The D6528 provides a pumping output range of 0 to 12 cubic yards per hour.
Variable-speed operation allows the operator to adjust material flow to suit the application. Whether a project requires a lower pumping rate or higher production, the adjustable output provides flexibility during operation.
The D6528's pumping system is supported by durable components, including its long-lasting pumping tubes.
D6528 Specifications
Specification D6528
Length 204 inches
Width 88 inches
Water Tank Height 89 inches
Mixer Height – Dump Position 86 inches
Charging Height 48 inches
Output Capacity 0–12 cubic yards per hour
Mixer Capacity 9 cubic feet
Receiving Hopper Capacity 12 cubic feet
These specifications provide contractors with key information when evaluating the D6528 for transportation, jobsite access, and production requirements.
D6528 Power Options
The D6528 is available with both diesel and electric power configurations.
29 HP Diesel Power
The D6528 can be equipped with a Kubota V1505 29 HP water-cooled diesel engine. This configuration provides a diesel-powered option for jobsites where electrical power may not be readily available.
30 HP Electric Motor
A 30 HP electric motor with starter and disconnect is also available for applications where electric power is preferred and accessible.
The two power options allow contractors to choose a configuration appropriate for their operating environment.
D6528 Applications
The D6528 is designed for field batching and pumping and is a popular solution for gypsum flooring applications.
Its integrated configuration allows material to be mixed, transferred to the receiving hopper, and pumped through the hydraulic squeeze pump. This can help streamline operations on suitable projects.
As with any pumping equipment, the material and application should be evaluated for compatibility with the machine and pumping system.
Features Designed for Durability
The D6528 includes several features intended to support practical, reliable operation:
9-cubic-foot hydraulic spiral mixer
Hydraulic mixer dump
Hydraulic mixer clean-out door
12-cubic-foot receiving hopper
Hydraulic hopper agitator
3-inch hydraulic squeeze pump
Heavy-duty planetary gearbox
Long lasting pumping tubes
Variable output from 0–12 cubic yards per hour
Together, these components provide an integrated system for field mixing and pumping.
Available D6528 Options
The D6528 can be configured with several optional accessories, including:
Pendant or wireless remote
150-gallon water tank with 2-inch flow meter
Mounted spare tire
Hydraulic pressure washer
Dual axles
Mounted air compressor
These options can provide additional flexibility for transportation, cleaning, water management, and jobsite operation.
Why Long Lasting Pumping Tubes Matter
For squeeze-pump equipment, pumping tubes are an important wear component. Frequent tube replacement can interrupt production and increase maintenance requirements.
The D6528 is designed with long lasting pumping tubes to support extended service and dependable pumping performance. Proper operation, cleaning, material compatibility, and routine maintenance remain important factors in maximizing tube life.
For contractors looking for a mixer/pump that combines durable pumping components with integrated field-batching capabilities, the D6528 offers a practical solution.
Choose the D6528 for Field Batching and Pumping
The D6528 Mixer/Pump brings together a 9-cubic-foot hydraulic mixer, 12-cubic-foot receiving hopper, and 3-inch hydraulic squeeze pump in one machine.
With output up to 12 cubic yards per hour, diesel or electric power options, and long lasting pumping tubes, the D6528 is designed to provide a dependable solution for suitable field-batching and pumping applications.
Its combination of hydraulic operation, durable pumping components, and integrated material handling makes the D6528 a useful option for contractors seeking efficient mixing and pumping equipment.
D6528 Mixer/Pump with Long Lasting Pumping Tubes for Reliable Field Performance
