For demanding concrete construction, repair, mining, tunneling, and infrastructure projects, reliable Dry Mix Shotcrete Equipment is essential for efficient material preparation and application. The Blastcrete Multi-Rig combines field batching, material mixing, conveying, and gunite delivery in one integrated system designed for dry process shotcrete applications.
With a high-capacity pan mixer, variable-speed conveyor, and rotary Gunite Machine, the Multi-Rig provides contractors with a mobile solution for preparing and delivering dry shotcrete material directly at the jobsite.

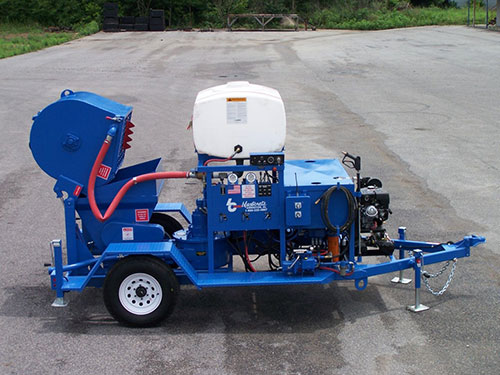

What Is the Blastcrete Multi-Rig?
The Multi-Rig is designed for field batching concrete sand and cement for dry process shotcrete applications. Its integrated design allows materials to be mixed and transferred directly to the rotary gunite machine.
The system is equipped with a 1,500 lb. capacity hydrostatic pan mixer. The mixer can be easily loaded with a skid steer, making it suitable for jobsites where efficient material handling is important.
Once the materials are loaded, the mixer blends them in approximately 1.5 to 2 minutes. The mixed material is then discharged through the bottom slide door onto a rubber belt conveyor.
The conveyor feeds the rotary Gunite Machine, which operates at a variable output of 0 to 6 tons per hour.
Dry Mix Shotcrete Equipment for Field Applications
The Dry Mix Shotcrete Equipment configuration of the Multi-Rig is designed to streamline material preparation and delivery.
Instead of relying on separate equipment for mixing and material transfer, the Multi-Rig integrates these functions into one mobile system. The pan mixer prepares the dry material, the conveyor transfers it, and the rotary gunite machine delivers the material for the shotcrete application.
This integrated approach can be particularly useful for contractors working on projects where mobility and efficient jobsite material handling are important.
Key Features of the Multi-Rig
The Blastcrete Multi-Rig includes several features designed for professional shotcrete and gunite applications.
1,500 lb. Hydrostatic Pan Mixer
The large-capacity mixer provides field batching capability for concrete sand and cement. It can be loaded using a skid steer and blends the material in approximately 1.5 to 2 minutes.
Variable-Speed Rubber Belt Conveyor
After mixing, material is discharged onto the rubber belt conveyor. The conveyor provides a continuous transfer path from the mixer to the rotary gunite equipment.
Variable-Speed Gunite Machine
The integrated rotary Gunite Machine has a variable output range of 0–6 tons per hour. Operators can adjust the production rate according to project requirements.
Mixer Tilt for Easy Cleanup
The mixer is equipped with a tilt function designed to make cleaning and maintenance easier after operation.
Multi-Rig Technical Specifications
The Blastcrete Multi-Rig is configured as a trailer-mounted system for field operation.
Specification Details
Output 0–6 tons per hour
Mixer Capacity 1,500 lbs.
Mounting Trailer mounted
Axles Dual electric braking axles
Lights Included
Dimensions 249" × 76" × 72"
Weight 7,000 lbs.
Power Kubota V1505
Engine Power 29 HP
Cooling Water cooled diesel
Reliable Diesel Power
The Multi-Rig is powered by a Kubota V1505 29 HP water-cooled diesel engine. This power option is designed for field operation and supports the integrated mixing and material-delivery system.
The diesel-powered configuration makes the Multi-Rig suitable for construction environments where dependable equipment performance is required.
Available Options
Contractors can configure the Multi-Rig with additional options depending on their project requirements.
Available options include:
Water booster pump
Skid-mounted configuration
Forklift tubing
These options provide additional flexibility for transportation, material handling, and jobsite setup.
Applications for Dry Mix Shotcrete Equipment
Dry Mix Shotcrete Equipment can be used across a variety of construction and industrial applications. The Blastcrete Multi-Rig can be considered for projects such as:
Concrete repair
Tunnel construction
Mining
Underground construction
Slope stabilization
Structural rehabilitation
Infrastructure construction
Shotcrete spraying
Gunite applications
Concrete restoration
The ability to batch concrete sand and cement in the field can be valuable for projects where material preparation needs to take place directly at the worksite.
Advantages of an Integrated Gunite Machine System
A dedicated Gunite Machine is an important component of dry process shotcrete operations. When combined with an integrated mixer and conveyor, the Multi-Rig provides a coordinated material-handling system.
The 1,500 lb. pan mixer prepares the material, while the conveyor transfers it to the rotary gunite machine. With output adjustable from 0 to 6 tons per hour, operators can control the material delivery rate according to application requirements.
The trailer-mounted design also provides mobility for different field projects.
Why Choose the Blastcrete Multi-Rig?
The Multi-Rig brings together several important functions required for dry process shotcrete production. Its combination of a high-capacity mixer, conveyor, and variable-speed rotary gunite machine provides contractors with an integrated approach to field batching and material delivery.
For companies searching for Dry Mix Shotcrete Equipment, mobile shotcrete solutions, or a professional Gunite Machine, the Blastcrete Multi-Rig offers a configuration designed specifically for dry process shotcrete applications.
Request a Quote for the Multi-Rig
If you are looking for Dry Mix Shotcrete Equipment for construction, mining, tunneling, concrete repair, or other professional applications, the Blastcrete Multi-Rig can be evaluated according to your project requirements.
Visit the Quote Now page to request product information and pricing, or download the Multi-Rig brochure for additional specifications.
