Efficient Field Concrete Batching is important for construction projects where concrete materials need to be prepared directly at the jobsite. Contractors working with dry process shotcrete can benefit from equipment that combines material mixing, conveying, and shotcrete delivery in one mobile system.
The Blastcrete Multi-Rig is designed specifically for field batching concrete sand and cement for dry process shotcrete applications. With a 1,500 lb. capacity pan mixer, variable-speed conveyor, and rotary gunite machine, the Multi-Rig provides an integrated solution for professional Mobile Shotcrete Equipment applications.
What Is the Blastcrete Multi-Rig?
The Multi-Rig is a trailer-mounted system designed to support field batching and dry process shotcrete operations.
Its 1,500 lb. capacity hydrostatic pan mixer can be easily loaded using a skid steer. The material is blended in approximately 1.5 to 2 minutes before being discharged through the bottom slide door.
The mixed material then moves onto a rubber belt conveyor, which feeds the rotary gunite machine. The gunite machine operates at a variable output of 0 to 6 tons per hour.
This integrated arrangement creates a continuous process from field batching to material delivery.
Field Concrete Batching for Dry Process Shotcrete
Field Concrete Batching allows contractors to prepare concrete sand and cement directly at the project site.
The Multi-Rig's 1,500 lb. hydrostatic pan mixer provides the capacity needed for field material preparation. Its skid-steer loading configuration can simplify the process of loading bulk material into the mixer.
The material is mixed for approximately 1.5 to 2 minutes and then discharged onto the conveyor. This direct transfer helps maintain an organized workflow between batching and gunite application.
Mobile Shotcrete Equipment for Jobsite Flexibility
The Mobile Shotcrete Equipment configuration of the Multi-Rig is designed for contractors who need a transportable system for different construction locations.
The trailer-mounted system includes dual electric braking axles and lights. This configuration allows the equipment to be moved between project sites while providing an integrated solution for mixing and gunite material delivery.
For contractors involved in concrete repair, mining, tunneling, and other shotcrete applications, mobile equipment can provide greater flexibility in jobsite setup.
Key Features of the Multi-Rig
1,500 lb. Capacity Hydrostatic Pan Mixer
The pan mixer provides field batching capability for concrete sand and cement. It can be loaded using a skid steer and blends materials in approximately 1.5 to 2 minutes.
Variable-Speed Rubber Belt Conveyor
After mixing, the material is discharged from the bottom slide door onto the rubber belt conveyor. The conveyor transfers the material directly to the rotary gunite machine.

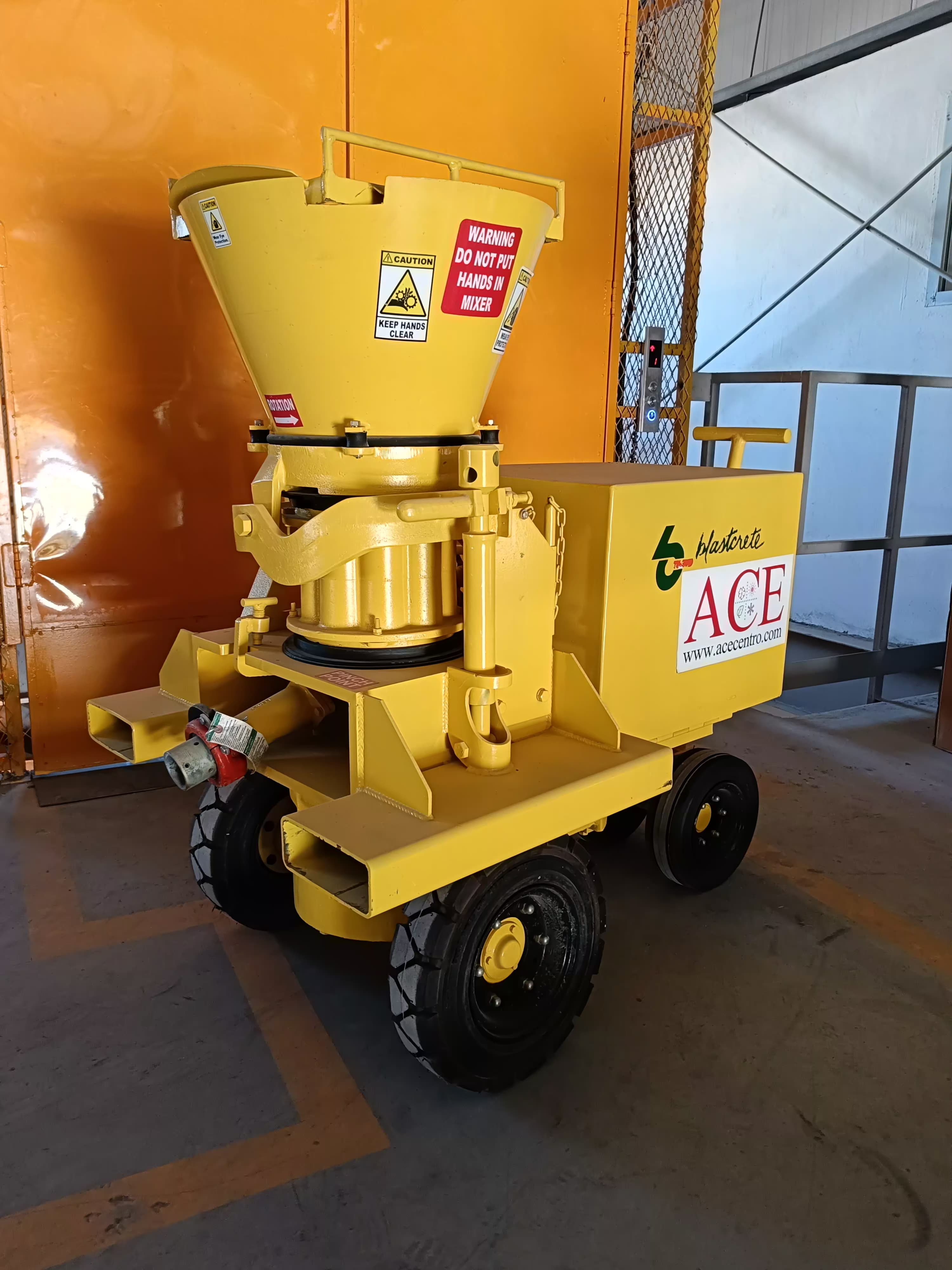

Rotary Gunite Machine
The integrated rotary gunite machine provides variable output from 0 to 6 tons per hour. This allows operators to adjust material delivery based on project requirements.
Mixer Tilt Function
The mixer tilt feature is designed to make cleanup easier after operation, helping simplify routine maintenance.
Multi-Rig Specifications
Specification Details
Output 0–6 tons per hour
Mixer Capacity 1,500 lbs.
Mounting Trailer mounted
Axles Dual electric braking axles
Lights Included
Dimensions 249" × 76" × 72"
Weight 7,000 lbs.
Engine Kubota V1505
Power 29 HP
Cooling Water cooled diesel
Kubota V1505 Diesel Power
The Blastcrete Multi-Rig is powered by a Kubota V1505 29 HP water-cooled diesel engine.
The diesel power option is designed for field operation and supports the integrated functions of the mixing and gunite system.
For professional Mobile Shotcrete Equipment, reliable power is an important factor when operating in demanding construction environments.
Multi-Rig Options
The Multi-Rig can also be supplied with additional options to accommodate different project requirements.
Available options include:
Water booster pump
Skid-mounted configuration
Forklift tubing
These options provide additional flexibility for equipment handling, transportation, and jobsite setup.
Applications of Field Concrete Batching Equipment
The Multi-Rig can support a variety of applications where concrete materials need to be mixed and delivered at the project site.
Potential applications include:
Dry process shotcrete
Concrete repair
Tunnel construction
Mining
Underground construction
Slope stabilization
Structural rehabilitation
Infrastructure projects
Gunite applications
Concrete restoration
Its field-batching capability is particularly useful when concrete sand and cement need to be prepared directly at the worksite.
Benefits of the Multi-Rig System
The Multi-Rig combines field batching, material mixing, conveying, and rotary gunite operation in one system.
The process works in a straightforward sequence:
Concrete sand and cement are loaded into the 1,500 lb. pan mixer.
The materials are blended for approximately 1.5 to 2 minutes.
The mixed material is discharged through the bottom slide door.
The rubber belt conveyor transfers the material.
The rotary gunite machine delivers the material at a variable rate of up to 6 tons per hour.
This integrated approach can help contractors organize material handling and shotcrete production at the jobsite.
Why Choose the Blastcrete Multi-Rig?
For contractors looking for Field Concrete Batching and Mobile Shotcrete Equipment, the Blastcrete Multi-Rig provides an integrated mobile configuration.
Its high-capacity pan mixer provides field batching capability, while the conveyor and rotary gunite machine support the material-delivery stage of dry process shotcrete operations.
The trailer-mounted configuration and available skid-mounted option also provide flexibility for different project environments.
Request More Information About the Multi-Rig
If you are searching for Field Concrete Batching equipment or Mobile Shotcrete Equipment for construction, mining, tunneling, concrete repair, or infrastructure applications, the Blastcrete Multi-Rig can be evaluated for your project requirements.
