If you are searching to Buy Shotcrete Machine equipment for professional construction, concrete repair, mining, tunneling, or dry process shotcrete applications, choosing the right system is an important decision. The Blastcrete Multi-Rig is designed as an integrated field-batching and shotcrete solution, combining a high-capacity pan mixer, material conveyor, and rotary gunite machine.
For companies researching a Shotcrete Machine for Sale, the Multi-Rig offers a mobile configuration designed to batch concrete sand and cement directly at the jobsite before feeding the material into the gunite system.

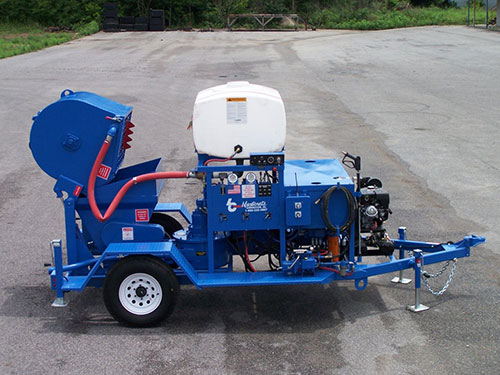

Blastcrete Multi-Rig Shotcrete Machine
The Blastcrete Multi-Rig is designed for field batching concrete sand and cement for dry process shotcrete applications.
The system features a 1,500 lb. capacity hydrostatic pan mixer that can be loaded using a skid steer. The materials are blended in approximately 1.5 to 2 minutes and then discharged through the bottom slide door.
After mixing, the material is transferred onto a rubber belt conveyor. The conveyor feeds the integrated rotary gunite machine, which operates at variable output from 0 to 6 tons per hour.
This integrated design provides a complete material preparation and delivery process for dry process shotcrete applications.
Why Buy a Shotcrete Machine Like the Multi-Rig?
When you Buy Shotcrete Machine equipment, it is important to consider more than the gunite output alone. Mixer capacity, material handling, mobility, power, and jobsite requirements can all affect equipment selection.
The Multi-Rig combines these functions into one system:
Field batching of concrete sand and cement
1,500 lb. hydrostatic pan mixer
1.5–2 minute mixing cycle
Variable-speed rubber belt conveyor
Rotary gunite machine
0–6 tons per hour output
Trailer-mounted configuration
29 HP Kubota diesel power
This integrated approach can help contractors streamline the material preparation process.
Shotcrete Machine for Sale: Key Features
If you are comparing a Shotcrete Machine for Sale, the features of the Multi-Rig make it suitable for a variety of professional applications.
1,500 lb. Capacity Pan Mixer
The hydrostatic pan mixer provides substantial capacity for field batching. It can be loaded with a skid steer and blends concrete sand and cement in approximately 1.5 to 2 minutes.
Variable-Speed Conveyor
The rubber belt conveyor transfers the mixed material from the pan mixer to the rotary gunite machine.
Rotary Gunite Machine
The integrated rotary gunite machine provides variable-speed operation from 0 to 6 tons per hour, allowing the output to be adjusted according to project requirements.
Easy Mixer Cleanup
The mixer includes a tilt function designed to assist with cleanup after operation.
Technical Specifications
Specification Details
Output 0–6 tons per hour
Mixer Capacity 1,500 lbs.
Mounting Trailer mounted
Axles Dual electric braking axles
Lights Included
Dimensions 249" × 76" × 72"
Weight 7,000 lbs.
Engine Kubota V1505
Power 29 HP
Cooling Water cooled diesel
Kubota V1505 Diesel Power
The Blastcrete Multi-Rig is powered by a Kubota V1505 29 HP water-cooled diesel engine.
The diesel power configuration is designed for field operation and provides power for the integrated equipment system.
When evaluating a Shotcrete Machine for Sale, the available power configuration is an important consideration, particularly for contractors working on demanding construction sites.
Multi-Rig Options
The Blastcrete Multi-Rig is available with additional options to meet different jobsite requirements.
Options include:
Water booster pump
Skid-mounted configuration
Forklift tubing
These options can provide greater flexibility for transportation, equipment handling, and installation.
Applications of the Blastcrete Shotcrete Machine
The Multi-Rig is designed for dry process shotcrete applications and can be considered for projects such as:
Concrete repair
Tunnel construction
Mining
Underground construction
Slope stabilization
Structural rehabilitation
Infrastructure projects
Gunite applications
Shotcrete spraying
Concrete restoration
The field-batching capability makes the system useful for projects where concrete sand and cement need to be prepared directly at the jobsite.
What to Consider Before You Buy a Shotcrete Machine
Before deciding to Buy Shotcrete Machine equipment, contractors should evaluate several factors:
Production Requirements
Consider the amount of material that needs to be processed and the required application rate. The Multi-Rig provides variable output from 0 to 6 tons per hour.
Mixer Capacity
The 1,500 lb. pan mixer provides field-batching capacity and should be evaluated against the project's material requirements.
Mobility
The trailer-mounted configuration can be useful for contractors who need to transport the equipment between different project locations.
Power Requirements
The Multi-Rig uses a 29 HP Kubota V1505 water-cooled diesel engine.
Jobsite Handling
The skid-steer loading capability and optional forklift tubing can help contractors plan material handling and equipment setup.
Why Consider the Multi-Rig?
For businesses searching for a Shotcrete Machine for Sale, the Blastcrete Multi-Rig offers an integrated configuration that combines field batching, mixing, conveying, and rotary gunite operation.
Rather than treating each stage as a separate process, the Multi-Rig brings the main material preparation and delivery functions together in one mobile system.
This makes it a potential solution for contractors involved in professional dry process shotcrete work.
Request Pricing and Product Information
If you are ready to Buy Shotcrete Machine equipment for your next project, you can request pricing and additional information about the Blastcrete Multi-Rig.
