Efficient batching and material handling are essential for contractors working with dry-process shotcrete. The Blastcrete Multi-Rig is designed to field-batch concrete, sand, and cement while integrating mixing, conveying, and rotary gunite application into one mobile equipment system.
For contractors searching for a 1500 lb pan mixer shotcrete machine or a 0-6 tons per hour gunite machine, the Multi-Rig provides a practical combination of high-capacity mixing and adjustable gunite production.
1500 lb Pan Mixer Shotcrete Machine
The Multi-Rig features a 1,500 lb. capacity hydrostatic pan mixer designed for field batching. The mixer can be loaded easily with a skid steer, helping contractors handle concrete, sand, and cement efficiently at the jobsite.
The material is blended in approximately 1.5 to 2 minutes before being discharged through the bottom slide door onto the rubber belt conveyor.
This batching and mixing process provides a direct workflow from material preparation to gunite delivery.
Integrated Conveyor and Gunite System

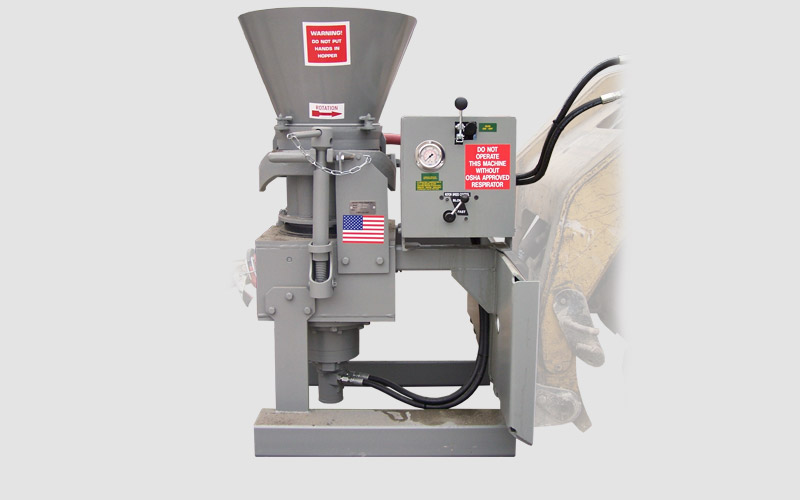

After mixing, the material is transferred from the pan mixer to the variable-speed rubber belt conveyor. The conveyor feeds the 020 rotary gunite machine, creating an integrated material-handling system.
The rotary gunite machine provides variable production from 0 to 6 tons per hour, allowing operators to adjust material output according to project requirements.
Key Features of the Multi-Rig
The Multi-Rig includes:
1,500 lb. capacity hydrostatic pan mixer
Variable-speed rubber belt conveyor
020 rotary gunite machine
Variable output from 0–6 tons per hour
Mixer tilt for easier cleanup
Trailer-mounted configuration
Diesel-powered operation
0–6 Tons per Hour Gunite Machine Specifications
Specification Details
Output 0–6 tons per hour
Mounting Trailer mounted
Axles Dual electric braking axles with lights
Dimensions 249" × 76" × 72"
Weight 7,000 lbs.
Mixer Capacity 1,500 lbs.
Power Kubota V1505, 29 HP water-cooled diesel
Fast Material Blending
One of the important features of the Multi-Rig is its efficient batching process. The 1,500 lb. pan mixer blends concrete, sand, and cement in approximately 1.5 to 2 minutes.
Once the material is ready, the bottom slide door allows it to discharge directly onto the conveyor. This helps create a straightforward workflow between batching and gunite production.
Variable Gunite Production
The 0-6 tons per hour gunite machine provides adjustable production rather than operating at only one fixed output rate.
This variable-speed capability allows contractors to manage material delivery according to the requirements of the application, mix, and jobsite conditions.
The conveyor's variable-speed operation further supports controlled material transfer between the mixer and rotary gunite machine.
Reliable Diesel Power
The Multi-Rig is powered by a Kubota V1505 29 HP water-cooled diesel engine. The diesel power option provides a dedicated power source for field operations.
The trailer-mounted unit also includes dual electric braking axles and lights, supporting transportation between suitable project locations.
Easy Cleanup and Maintenance
The Multi-Rig's mixer includes a tilt function designed for easy cleanup. Convenient cleanup can help contractors maintain the equipment after batching operations and prepare it for subsequent use.
Routine maintenance and cleaning should always be performed according to the equipment manufacturer's recommendations.
Available Options
The Multi-Rig can be supplied with additional options for different jobsite requirements:
Water booster pump
Skid-mounted configuration with forklift tubing
These options provide contractors with additional flexibility when configuring the equipment for particular applications.
Why Choose the Multi-Rig?
The Multi-Rig combines a high-capacity mixer and adjustable gunite production system into a single mobile configuration. Instead of handling the mixer, conveyor, and rotary gunite machine as separate pieces of equipment, contractors can use an integrated system designed to connect these stages of the dry-process workflow.
The 1,500 lb. pan mixer provides field-batching capacity, while the 0–6 tons per hour gunite machine provides adjustable production for the gunite application.
1500 lb Pan Mixer Shotcrete Machine: Multi-Rig 0 -6 Tons per Hour Gunite Machine
