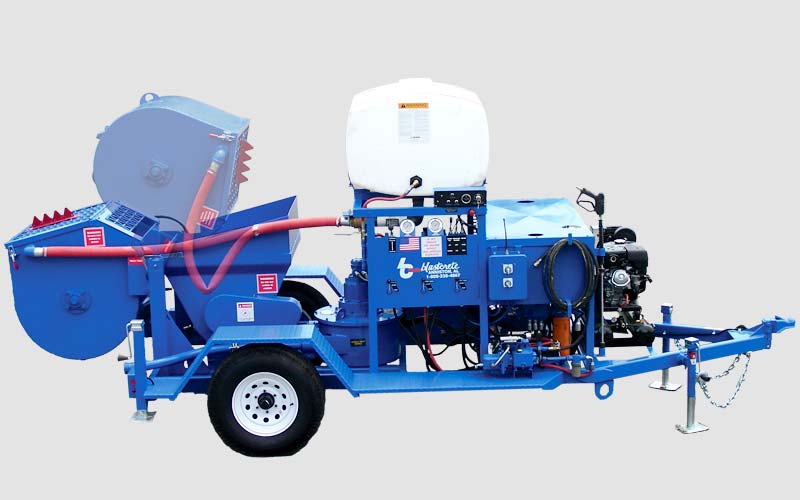

Efficient material handling is essential for contractors working with dry-process shotcrete. The Blastcrete Multi-Rig combines field batching, material mixing, conveying, and gunite application in one mobile system.
Featuring a variable speed rotary gunite machine, a 1,500 lb. capacity pan mixer, and a rubber belt conveyor, the Multi-Rig is designed to provide an integrated solution for dry-process shotcrete applications. Its trailer-mounted configuration also makes it a practical option for contractors who need mobile equipment between suitable project locations.
Multi-Rig Variable Speed Rotary Gunite Machine
The Blastcrete Multi-Rig is designed for field batching concrete, sand, and cement for dry-process shotcrete applications. The system features an 020 rotary gunite machine with variable production from 0 to 6 tons per hour.
The adjustable output allows operators to control material delivery according to the requirements of the application, equipment setup, and project specifications.
The rotary gunite machine is fed by a rubber belt conveyor, which receives material directly from the Multi-Rig's pan mixer.
1,500 lb. Hydrostatic Pan Mixer
The Multi-Rig is equipped with a 1,500 lb. capacity hydrostatic pan mixer. The mixer can be loaded easily with a skid steer, helping contractors prepare concrete, sand, and cement directly at the jobsite.
The materials are blended in approximately 1.5 to 2 minutes before being discharged through the bottom slide door.
The mixer also features a tilt function designed to make cleanup easier after batching operations.
Variable-Speed Rubber Belt Conveyor
After mixing, the material is discharged from the bottom of the pan mixer onto the variable-speed rubber belt conveyor.
The conveyor provides a controlled transfer path to the rotary gunite machine. Its variable-speed operation complements the adjustable production capability of the gunite machine and helps manage material flow through the system.
Trailer Mounted Shotcrete Equipment
The Multi-Rig is designed as trailer mounted shotcrete equipment, providing a mobile configuration for contractors working across multiple suitable job locations.
The trailer includes:
Dual electric braking axles
Lights
Trailer-mounted equipment configuration
The system measures 249" × 76" × 72" and has a listed weight of 7,000 lbs.
Transportation and setup should be performed according to applicable regulations and the manufacturer's operating requirements.
Multi-Rig Specifications
Specification Details
Output 0–6 tons per hour
Mounting Trailer mounted
Axles Dual electric braking axles with lights
Dimensions 249" × 76" × 72"
Weight 7,000 lbs.
Mixer Capacity 1,500 lbs.
Gunite Machine 020 rotary gunite machine
Power Kubota V1505, 29 HP water-cooled diesel
Kubota V1505 Diesel Power
The Multi-Rig is powered by a Kubota V1505 29 HP water-cooled diesel engine. This diesel power option provides a dedicated power source for field shotcrete operations.
The combination of diesel power and trailer-mounted construction is intended to provide contractors with a mobile equipment platform for appropriate dry-process shotcrete projects.
How the Multi-Rig Works
The Multi-Rig follows a straightforward material-handling sequence:
1. Load the Mixer
Concrete, sand, and cement are loaded into the 1,500 lb. hydrostatic pan mixer, typically using a skid steer.
2. Blend the Materials
The materials are blended for approximately 1.5 to 2 minutes.
3. Transfer the Material
The bottom slide door releases the mixed material onto the rubber belt conveyor.
4. Feed the Gunite Machine
The conveyor transfers material to the 020 rotary gunite machine.
5. Adjust Production
The rotary gunite machine can operate at variable production from 0 to 6 tons per hour according to project requirements.
Key Features
The Multi-Rig provides several features for dry-process shotcrete operations:
1,500 lb. hydrostatic pan mixer
Variable-speed rubber belt conveyor
020 rotary gunite machine
0–6 tons per hour variable production
Mixer tilt for easy cleanup
Trailer-mounted configuration
Dual electric braking axles and lights
29 HP Kubota water-cooled diesel power
Available Options
Contractors can select additional options for different project requirements:
Water Booster Pump
A water booster pump is available as an optional configuration for applications where it is required.
Skid Mount with Forklift Tubing
The Multi-Rig can also be supplied with a skid-mounted configuration featuring forklift tubing, providing another handling and installation option.
Benefits of Trailer Mounted Shotcrete Equipment
A trailer-mounted system can offer practical advantages for contractors who need to move equipment between suitable jobsites.
The Multi-Rig combines the batching, conveying, and gunite components into one mobile configuration, reducing the need to coordinate several independent pieces of equipment.
Its adjustable gunite production also provides flexibility for different dry-process shotcrete requirements.
Request a Multi-Rig Quote
If you are searching for a variable speed rotary gunite machine or trailer mounted shotcrete equipment, the Blastcrete Multi-Rig provides an integrated solution for field batching and dry-process gunite operations.
For current pricing, configurations, and purchasing information:
