Finding the right MX-20CM supplier or MX-20CM distributor is an important step when sourcing reliable equipment for refractory placement, shotcrete work, and other demanding material-pumping applications. The Blastcrete MX-20CM Mixer/Pump combines continuous high-shear mixing with a powerful swing tube piston pump to support both smaller refractory installations and high-volume production.

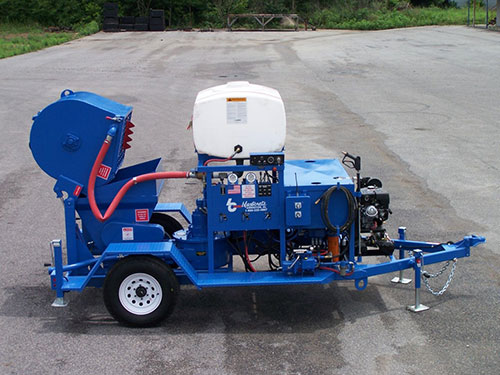

MX-20CM Mixer/Pump for Industrial Applications
The MX-20CM is designed to handle refractory installations ranging from approximately 2–3 tons per hour to a maximum output of 25 tons per hour. Its compact two-stage mixing system hydrates the material in the primary mixer before transferring it to a secondary mixer located in the receiving hopper.
The integrated design provides an efficient material-handling process while helping reduce dust during charging and minimizing cleanup and material waste.
When selecting an MX-20CM supplier, customers should consider the machine configuration, power requirements, available options, delivery requirements, and technical support available for their region.
High-Pressure Swing Tube Pump
At the heart of the MX-20CM is a 4" x 36" ultra-high-pressure swing tube piston pump. The pump provides a stated piston face pressure of 2,200 PSI and is designed for rugged refractory pump-cast and shotcrete applications.
Oversized differential cylinders allow the pumping system to operate with comparatively low hydraulic pressure while maintaining high discharge pressure.
Pump Specifications
Pump: 4" x 36" ultra-high-pressure swing tube pump
Pump output: 0–25 tons per hour
Piston face pressure: 2,200 PSI
Receiving hopper: 1,500 lb. capacity
Hydraulic agitator in receiving hopper
High-Shear Continuous Mixer
The MX-20CM incorporates a high-shear continuous mixer with an output of up to 25 tons per hour. The two-stage configuration is designed to provide effective hydration and consistent material preparation before pumping.
The dry hopper has a 3,000 lb. capacity, supporting continuous material feeding during demanding installation work.
For companies searching for an MX-20CM distributor, it is useful to confirm whether the distributor can provide the required machine configuration, accessories, spare parts, and after-sales assistance.
Key MX-20CM Features
The MX-20CM includes features designed for productivity and straightforward maintenance:
4" x 36" swing tube piston pump
2,200 PSI piston face pressure
High-shear continuous mixer
Up to 25 tons/hour output
Swing-out receiving hopper
Forklift tubing for flat-pack removal
0–20 gallon flow meter
Solid-state electronic controls
Four-point overhead crane pickup
Dual 6,000-lb.-capacity axles
Electric braking and lights
CE certification
Towable configuration without a special license, according to the supplied specifications
MX-20CM Technical Specifications
Specification MX-20CM
Pump 4" x 36" Ultra High Pressure Swing Tube Pump
Pump Output 0–25 tons/hour
Piston Face Pressure 2,200 PSI
Mixer High-Shear Continuous Mixer
Mixer Output 0–25 tons/hour
Dry Hopper 3,000 lb.
Receiving Hopper 1,500 lb. with Hydraulic Agitator
Dimensions 220" x 89" x 108"
Weight 7,500 lb.
Trailer Dual 6,000-lb. axles
Crane Pickup Four-point pickup
MX-20CM Power Options
Depending on the project and installation environment, the machine can be configured with:
99 HP John Deere water-cooled diesel
102 HP Deutz water-cooled diesel
Dual electric motors
A qualified MX-20CM supplier can help determine which power configuration is appropriate for the intended application.
Available MX-20CM Options
Additional equipment can be specified to adapt the machine to different jobsites and operating requirements:
2,000 PSI hydraulic pressure washer
Vogel automatic lubrication system
Mounted spare tire
Pendant remote
Skid mounting with forklift tubing
Choosing an MX-20CM Supplier or Distributor
When evaluating an MX-20CM distributor, buyers should look beyond equipment availability. Important factors can include configuration assistance, quotation support, delivery arrangements, technical information, replacement components, and service support.
Because equipment configurations and commercial terms can vary, prospective buyers should request a current quotation based on their required power option and accessories rather than relying on an old advertised price.
MX-20CM Supplier and Distributor Guide for Advanced Refractory Placement
