A reliable concrete squeeze pump can make material placement easier for contractors working on concrete repair, block fill, plaster, stucco, and other construction applications. The D3522 Pump is a compact pumping solution designed for projects where controlled material delivery and equipment flexibility are important.
The D3522 is a 2-inch hydraulic squeeze pump with variable output from 0 to 6 cubic yards per hour and pumping pressure up to 400 PSI. Its compact design allows the machine to be configured as either a trailer-mounted or lower-profile skid-mounted unit.
What Is a Concrete Squeeze Pump?
A concrete squeeze pump is a type of material pumping equipment that uses a squeezing action to move compatible construction materials through the discharge system. Hydraulic operation provides the power required to operate the pump while allowing variable-speed material delivery.
The D3522 Pump uses a 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. This configuration provides contractors with a compact pumping machine for a variety of suitable construction and repair applications.
D3522 Pump: A Small Concrete Pump Solution
For contractors searching for a small concrete pump, the D3522 offers a compact design with multiple configuration and power options.
The machine provides an output of 0–6 cubic yards per hour, allowing operators to adjust the pumping rate according to project requirements. Its 6 cubic foot receiving hopper provides material capacity while the 2-inch HD discharge supports controlled material delivery.

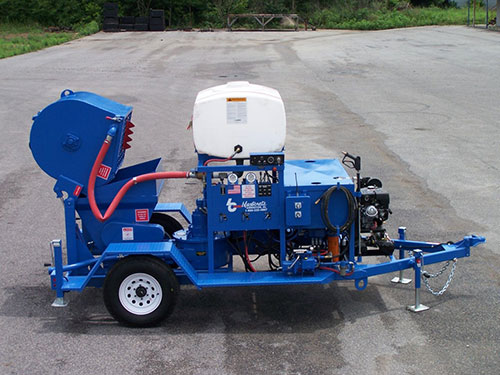

The D3522 Pump can be trailer mounted for transportation or supplied as a lower-profile skid-mounted machine for suitable job-site applications.
Key Features of the D3522 Pump
2-Inch Hydraulic Squeeze Pump
The D3522 uses a 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. The hydraulic design provides the pumping power required for appropriate construction materials.
Variable-Speed Output
The pump provides variable output from 0 to 6 cubic yards per hour, allowing operators to control material delivery according to the job.
6 Cubic Foot Receiving Hopper
The D3522 includes a 6 cubic foot receiving hopper, providing a practical material capacity for pumping operations.
Compact Configuration
The D3522 is designed for contractors who need a compact pumping machine. It can be supplied in trailer-mounted or skid-mounted configurations.
Long-Lasting Pumping Tubes
The equipment is designed with durable pumping tubes intended to support reliable operation and reduce maintenance requirements.
Applications of a Concrete Squeeze Pump
The versatility of the D3522 Pump allows it to be used for several construction and repair applications involving compatible materials.
Concrete Repair
A concrete squeeze pump can be useful for suitable concrete repair work where controlled placement of repair material is required.
Epoxy
The D3522 can support appropriate epoxy applications, making it useful for certain specialized repair and construction projects.
Block Fill
The pump can be used for block fill applications where compatible material needs to be delivered into masonry structures.
Plaster and Stucco
The D3522 is also suitable for various plaster and stucco applications, giving contractors additional flexibility from one pumping machine.
D3522 Pump Specifications
Specification Details
Pump 2" D3522 Hydraulic Squeeze Pump
Pumping Pressure 400 PSI
Output 0–6 Cubic Yards Per Hour
Discharge 2" HD
Hopper 6 cu. ft.
Trailer Single 6,000 lb. capacity axle with electric braking and lights
Dimensions 166" × 88" × 54"
Weight 2,800 lbs.
Power Options for the D3522
The D3522 Pump is available with several power options:
Kubota water-cooled diesel
24 HP Honda gasoline engine
10 HP electric motor
These configurations allow contractors to select a suitable power source based on their equipment requirements and job-site conditions.
Available D3522 Options
The D3522 can be equipped with several optional features:
Hydraulic receiving hopper agitator
Pendant or wireless remote
Spare tire mounted
Skid mounted with forklift tubing
Hydraulic pressure washer
Air compressor mounted
These options provide additional flexibility when configuring the small concrete pump for different applications.
Benefits of the D3522 Small Concrete Pump
The D3522 Pump combines a compact design with variable-speed operation and multiple configuration choices. Key benefits include:
Compact 2-inch hydraulic squeeze pump design
Variable output from 0–6 cubic yards per hour
Pumping pressure up to 400 PSI
6 cubic foot receiving hopper
Trailer or skid-mounted configurations
Diesel, gasoline, or electric power options
Suitable applications including concrete repair, epoxy, block fill, plaster, and stucco
For contractors who need a small concrete pump for specialized repair and construction applications, the D3522 provides a flexible equipment solution.
Choose the Right Concrete Squeeze Pump
Selecting the right concrete squeeze pump depends on factors such as material type, required output, pumping pressure, transportation requirements, and available power.
The D3522 offers variable-speed operation and several mounting and power configurations, allowing contractors to select an arrangement suited to their project needs.
Before purchasing or operating the pump, contractors should confirm that the machine configuration and material are compatible with the intended application.
