Choosing suitable epoxy pumping equipment is important for contractors handling specialized construction, repair, and rehabilitation applications. The D3522 Pump is a compact 2-inch hydraulic squeeze pump designed for a range of applications, including concrete repair, epoxy, block fill, plaster, and stucco.
With variable output from 0 to 6 cubic yards per hour and pumping pressure of up to 400 PSI, the D3522 provides a flexible pumping solution for compatible materials and job-site requirements.
What Is the D3522 Epoxy Concrete Pump?
The D3522 is a compact 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. As epoxy pumping equipment, it can be used for suitable epoxy applications where controlled material delivery is required.
The machine features a 6 cubic foot receiving hopper and a 2-inch HD discharge. Its variable-speed operation allows operators to adjust the pumping rate from 0 to 6 cubic yards per hour.

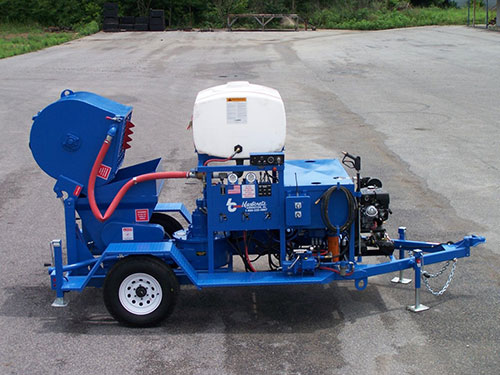

The D3522 can be supplied as a trailer-mounted machine or as a lower-profile skid-mounted unit, providing flexibility for different job sites.
D3522 as Epoxy Pumping Equipment
The right epoxy pumping equipment can help contractors handle compatible materials efficiently and consistently. The D3522 provides variable-speed pumping, allowing the operator to control material delivery according to the application.
Its compact configuration can make it suitable for contractors working on repair and specialty construction projects where a larger pumping machine may not be necessary.
Because epoxy formulations and material properties vary, users should verify compatibility with the pump, tubes, discharge system, and manufacturer's operating requirements before use.
Key Features of the D3522 Pump
2-Inch Hydraulic Squeeze Pump
The D3522 uses a 2-inch hydraulic squeeze pump powered by a heavy-duty planetary gearbox. This provides the main pumping mechanism for suitable construction and repair materials.
Variable Output
The D3522 offers output from 0–6 cubic yards per hour. Variable-speed operation allows the operator to adjust material delivery according to project requirements.
400 PSI Pumping Pressure
The pump provides up to 400 PSI pumping pressure, according to the supplied equipment specifications.
6 Cubic Foot Receiving Hopper
The D3522 includes a 6 cubic foot receiving hopper, providing material capacity before pumping.
Trailer or Skid Mounted
The equipment can be configured as a trailer-mounted unit or as a lower-profile skid-mounted machine, giving contractors flexibility in transportation and job-site setup.
Applications for the D3522 Pump
The D3522 is designed for several applications involving compatible materials.
Epoxy Applications
The D3522 can be used for appropriate epoxy pumping applications in construction and repair work. Contractors should confirm material compatibility before operation.
Concrete Repair
The machine can support suitable concrete repair applications where controlled pumping of repair materials is required.
Block Fill
The D3522 can also be used for compatible block fill applications, providing controlled material delivery into masonry structures.
Plaster and Stucco
The pump is suitable for various plaster and stucco applications, adding versatility for contractors handling multiple types of specialty construction work.
D3522 Pump Specifications
Specification Details
Pump 2" D3522 Hydraulic Squeeze Pump
Pumping Pressure 400 PSI
Output 0–6 Cubic Yards Per Hour
Discharge 2" HD
Hopper 6 cu. ft.
Trailer Single 6,000 lb. capacity axle with electric braking and lights
Dimensions 166" × 88" × 54"
Weight 2,800 lbs.
Power Options for the D3522
The D3522 Pump is available with several power options:
Kubota water-cooled diesel
24 HP Honda gasoline engine
10 HP electric motor
These power configurations give contractors flexibility when selecting equipment for different operating environments.
Available D3522 Options
The D3522 can be configured with additional equipment options, including:
Hydraulic receiving hopper agitator
Pendant or wireless remote
Spare tire mounted
Skid mounted with forklift tubing
Hydraulic pressure washer
Air compressor mounted
These options can help customize the D3522 for specific transportation, operating, and job-site requirements.
Benefits of the D3522 Epoxy Concrete Pump
For contractors searching for an epoxy concrete pump, the D3522 provides a combination of compact design, variable-speed operation, and flexible mounting configurations.
Key characteristics include:
2-inch hydraulic squeeze pumping system
Variable output from 0–6 cubic yards per hour
Up to 400 PSI pumping pressure
6 cubic foot receiving hopper
Trailer or skid-mounted configurations
Diesel, gasoline, or electric power options
Multiple construction and repair applications
The D3522 can therefore be considered for suitable epoxy and concrete-related pumping applications where its specifications meet the project requirements.
Choosing Epoxy Pumping Equipment
When selecting epoxy pumping equipment, contractors should consider the epoxy formulation, viscosity, material compatibility, required pumping rate, discharge size, pumping pressure, power source, and job-site conditions.
The D3522 offers variable-speed operation and a 2-inch discharge, but the suitability of the pump depends on the specific epoxy material and application.
Always confirm material compatibility and operating requirements with the equipment supplier before using the D3522 for a particular epoxy application.
