Reliable stucco pumping equipment can help contractors handle suitable stucco and plaster materials efficiently across residential, commercial, repair, and specialty construction projects. The D3522 Pump is a compact 2-inch hydraulic squeeze pump designed for a variety of applications, including plaster, stucco, concrete repair, epoxy, and block fill.
With variable output from 0 to 6 cubic yards per hour and pumping pressure up to 400 PSI, the D3522 provides a flexible solution for contractors searching for a compact stucco pump.
What Is the D3522 Stucco Pump?
The D3522 is a compact 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. It features a 6 cubic foot receiving hopper and a 2-inch HD discharge.
The pump's variable-speed operation provides an output range of 0–6 cubic yards per hour, allowing operators to adjust material delivery according to project requirements.

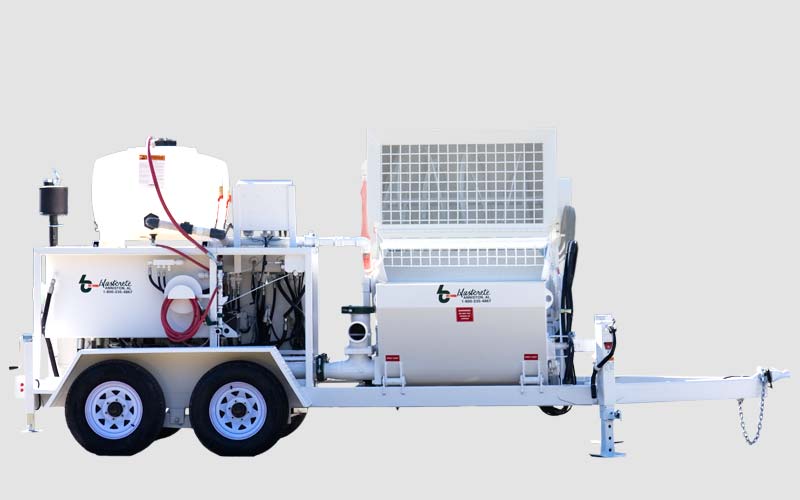

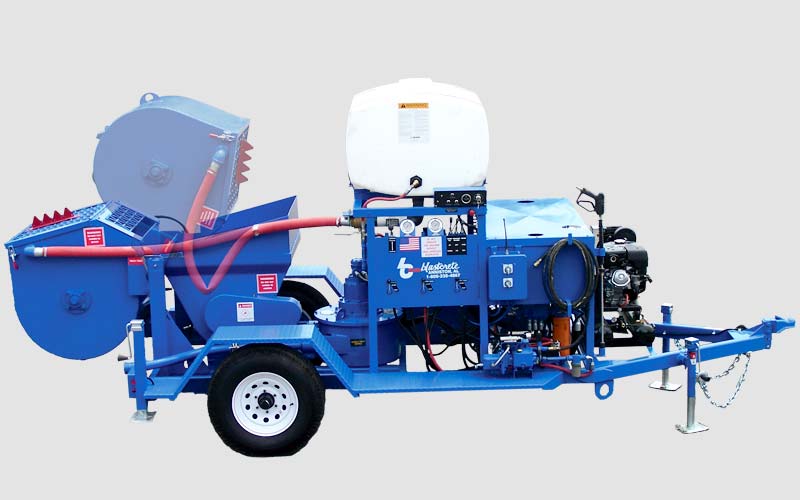

The D3522 can be configured as a trailer-mounted unit or a lower-profile skid-mounted machine, providing flexibility for transportation and job-site setup.
D3522 as Stucco Pumping Equipment
The right stucco pumping equipment can provide controlled material delivery and help contractors manage suitable stucco applications more efficiently.
The D3522's variable output allows the pumping rate to be adjusted for different project requirements. Its compact design can also be useful for contractors who need flexible equipment for repair and specialty construction work.
Because stucco formulations and material properties vary, contractors should verify that the specific stucco material is compatible with the D3522 pumping system before operation.
Key Features of the D3522 Stucco Pump
2-Inch Hydraulic Squeeze Pump
The D3522 uses a 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. This pumping system is designed for suitable construction and finishing materials.
Variable-Speed Operation
The D3522 provides output from 0 to 6 cubic yards per hour, giving operators control over the material delivery rate.
6 Cubic Foot Receiving Hopper
The machine includes a 6 cubic foot receiving hopper, providing material capacity for the pumping system.
400 PSI Pumping Pressure
The D3522 provides pumping pressure of up to 400 PSI, according to the supplied specifications.
Trailer or Skid Mounted
The D3522 can be supplied as a trailer-mounted machine or a lower-profile skid-mounted unit. These configurations provide options for transportation and job-site positioning.
Stucco Pump Applications
The D3522 is designed for several applications involving compatible materials.
Stucco Applications
As a stucco pump, the D3522 can be used for suitable stucco pumping applications. Its variable output provides flexibility when adjusting material delivery for different project requirements.
Plaster Applications
The machine can also be used as a plaster pump for various compatible plaster applications.
Concrete Repair
The D3522 can support suitable concrete repair work where controlled pumping of repair materials is required.
Block Fill
The pump can be used for compatible block fill applications where material needs to be delivered into masonry structures.
Epoxy Applications
The D3522 can also support appropriate epoxy pumping applications when the material is compatible with the pumping system.
D3522 Pump Specifications
Specification Details
Pump 2" D3522 Hydraulic Squeeze Pump
Pumping Pressure 400 PSI
Output 0–6 Cubic Yards Per Hour
Discharge 2" HD
Hopper 6 cu. ft.
Trailer Single 6,000 lb. capacity axle with electric braking and lights
Dimensions 166" × 88" × 54"
Weight 2,800 lbs.
Power Options for the D3522
The D3522 Pump is available with several power options:
Kubota water-cooled diesel
24 HP Honda gasoline engine
10 HP electric motor
Multiple power configurations allow contractors to select a setup appropriate for their project and operating environment.
Available Stucco Pump Options
The D3522 can be configured with additional options, including:
Hydraulic receiving hopper agitator
Pendant or wireless remote
Spare tire mounted
Skid mounted with forklift tubing
Hydraulic pressure washer
Air compressor mounted
These options can provide additional flexibility for contractors configuring their stucco pumping equipment.
Benefits of the D3522 Stucco Pump
The D3522 combines compact equipment design with variable-speed pumping and multiple mounting and power configurations.
Key characteristics include:
2-inch hydraulic squeeze pump
0–6 cubic yards per hour variable output
Up to 400 PSI pumping pressure
6 cubic foot receiving hopper
Trailer or skid-mounted configurations
Diesel, gasoline, or electric power options
Applications for stucco, plaster, concrete repair, epoxy, and block fill
For contractors searching for a stucco pump, the D3522 provides a flexible pumping option for suitable materials and applications.
Choosing Stucco Pumping Equipment
When choosing stucco pumping equipment, contractors should consider the stucco formulation, material consistency, aggregate size, required output, discharge size, pumping pressure, power source, and job-site conditions.
The D3522 provides variable-speed operation and a 2-inch discharge, but the suitability of the machine depends on the specific stucco product and application.
Always verify material compatibility and operating requirements with the equipment supplier before using the D3522 with a particular stucco formulation.
