Reliable shotcrete repair equipment is important for contractors working on concrete repair, restoration, rehabilitation, and specialty construction projects. The D3522 Pump is a compact 2-inch hydraulic squeeze pump designed for a range of suitable applications, including concrete repair, epoxy, block fill, plaster, and stucco.
With variable output from 0 to 6 cubic yards per hour and pumping pressure up to 400 PSI, the D3522 provides a flexible pumping solution for contractors looking for compact concrete rehabilitation equipment.
What Is the D3522 Pump?

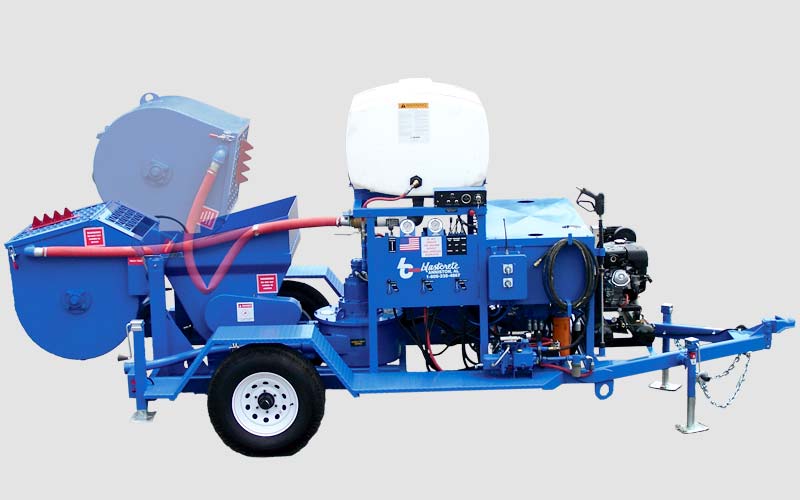

The D3522 is a compact 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. It features a 6 cubic foot receiving hopper and a 2-inch HD discharge.
The variable-speed pumping system provides output from 0–6 cubic yards per hour, allowing operators to adjust material delivery according to project requirements.
The machine can be configured as a trailer-mounted unit or as a lower-profile skid-mounted machine, giving contractors flexibility for transportation and job-site setup.
D3522 for Concrete Rehabilitation
Concrete rehabilitation projects often require equipment capable of supporting controlled material placement in repair and restoration work. The D3522 can be considered as part of concrete rehabilitation equipment for suitable materials and applications.
Its compact design and variable output can provide flexibility for repair contractors working on different project sizes. The machine can support suitable concrete repair applications as well as other compatible construction materials.
Before using the D3522 for a specific rehabilitation material, contractors should verify material compatibility and the required pumping specifications.
Shotcrete Repair Equipment and the D3522
When selecting shotcrete repair equipment, it is important to match the pumping machine to the specific material, application method, aggregate size, required output, and pumping requirements.
The D3522 is a 2-inch hydraulic squeeze pump intended for concrete repair and other applications listed by the manufacturer. Contractors considering it for a shotcrete-related repair application should confirm that the specific material and application method are compatible with the equipment.
This distinction is important because not every concrete repair or shotcrete material is suitable for every pump configuration.
Key Features of the D3522 Pump
2-Inch Hydraulic Squeeze Pump
The D3522 uses a 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. This provides the core pumping system for compatible construction and repair materials.
Variable Output
The pump provides an output range of 0–6 cubic yards per hour, allowing operators to adjust material delivery according to project requirements.
400 PSI Pumping Pressure
The D3522 provides pumping pressure of up to 400 PSI, according to the supplied specifications.
6 Cubic Foot Receiving Hopper
A 6 cubic foot receiving hopper provides material capacity before the material enters the pumping system.
Trailer or Skid Mounted
The D3522 can be supplied as a trailer-mounted unit or as a lower-profile skid-mounted machine, providing flexibility for transportation and job-site positioning.
Applications of the D3522
The D3522 can support multiple applications involving compatible materials.
Concrete Repair
The machine can be used for suitable concrete repair applications where controlled pumping of repair material is required.
Concrete Rehabilitation
As part of concrete rehabilitation equipment, the D3522 can support appropriate restoration and repair projects when the material and application are compatible with the pump.
Epoxy Applications
The pump can be used for appropriate epoxy pumping applications, subject to material compatibility.
Block Fill
The D3522 can support compatible block fill applications for masonry and construction projects.
Plaster and Stucco
The machine is also designed for various plaster and stucco applications, providing additional versatility for contractors.
D3522 Pump Specifications
Specification Details
Pump 2" D3522 Hydraulic Squeeze Pump
Pumping Pressure 400 PSI
Output 0–6 Cubic Yards Per Hour
Discharge 2" HD
Hopper 6 cu. ft.
Trailer Single 6,000 lb. capacity axle with electric braking and lights
Dimensions 166" × 88" × 54"
Weight 2,800 lbs.
Power Options
The D3522 Pump is available with several power configurations:
Kubota water-cooled diesel
24 HP Honda gasoline engine
10 HP electric motor
These options allow contractors to choose a power configuration appropriate for their project and operating environment.
Available D3522 Options
The D3522 can be equipped with additional options, including:
Hydraulic receiving hopper agitator
Pendant or wireless remote
Spare tire mounted
Skid mounted with forklift tubing
Hydraulic pressure washer
Air compressor mounted
These options provide additional flexibility when configuring the machine for different repair and rehabilitation projects.
Benefits of the D3522 for Concrete Rehabilitation
The D3522 combines a compact design with variable-speed pumping and multiple mounting and power configurations.
Key characteristics include:
2-inch hydraulic squeeze pump
Variable output from 0–6 cubic yards per hour
Up to 400 PSI pumping pressure
6 cubic foot receiving hopper
Trailer or skid-mounted configurations
Diesel, gasoline, or electric power options
Suitable applications for concrete repair, epoxy, block fill, plaster, and stucco
For contractors looking for concrete rehabilitation equipment, the D3522 provides a compact and configurable pumping option for suitable materials.
Selecting Shotcrete Repair Equipment
When choosing shotcrete repair equipment, contractors should evaluate the repair material, aggregate size, material consistency, required output, pumping pressure, discharge size, application method, and job-site conditions.
The D3522 provides a 2-inch discharge and variable output up to 6 cubic yards per hour. However, its suitability for a particular shotcrete or rehabilitation application should be confirmed before purchase or operation.
Shotcrete Repair Equipment: D3522 for Concrete Rehabilitation Applications
