Efficient material handling is an important part of many construction and repair projects. The right construction material pump can help contractors move compatible materials with controlled output and consistent pumping performance. The D3522 Pump is a compact 2-inch hydraulic squeeze pump designed for applications including concrete repair, epoxy, block fill, plaster, and stucco.
With variable output from 0 to 6 cubic yards per hour and pumping pressure up to 400 PSI, the D3522 provides a flexible option for contractors looking for cement pumping equipment and compact construction pumping solutions.

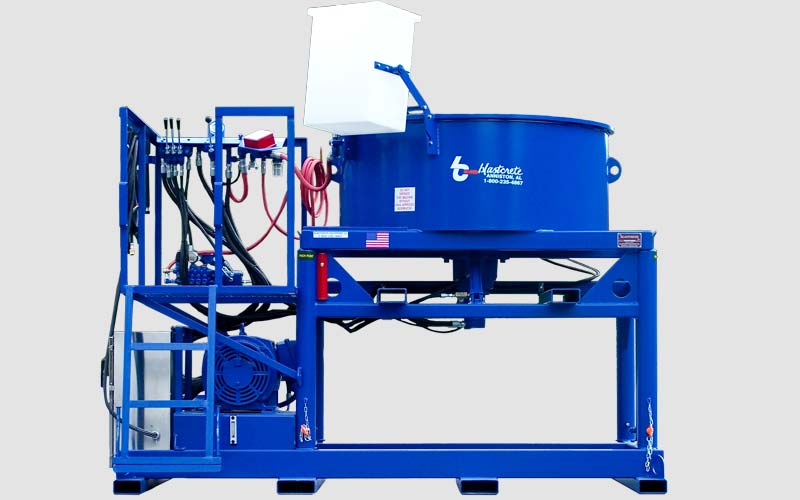

What Is the D3522 Pump?
The D3522 is a compact 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. It is designed for pumping suitable construction materials in repair, masonry, and specialty applications.
The machine includes a 6 cubic foot receiving hopper and a 2-inch HD discharge. Its variable-speed operation allows operators to adjust output from 0–6 cubic yards per hour according to project requirements.
The D3522 can be configured as a trailer-mounted unit or as a lower-profile skid-mounted machine, providing flexibility for transportation and job-site positioning.
D3522 as a Construction Material Pump
A construction material pump needs to provide suitable pumping capacity, mobility, and control for the materials being used. The D3522 combines a compact design with variable-speed operation and multiple power configurations.
The machine can be used for suitable applications involving concrete repair materials, block fill, epoxy, plaster, and stucco.
Because construction materials differ in consistency and composition, contractors should confirm that the specific material is compatible with the D3522 before operation.
D3522 as Cement Pumping Equipment
The D3522 can be considered for suitable cementitious material pumping applications. As cement pumping equipment, the machine provides a 2-inch discharge and variable output up to 6 cubic yards per hour.
The controlled output can help contractors adjust material delivery according to the requirements of the project.
However, cement and cement-based materials vary considerably. Material consistency, aggregate size, mix design, and pumping requirements should be evaluated before selecting the equipment.
Key Features of the D3522 Pump
2-Inch Hydraulic Squeeze Pump
The D3522 features a 2-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox. The hydraulic system provides the pumping mechanism for suitable construction materials.
Variable-Speed Output
The D3522 provides output from 0 to 6 cubic yards per hour, allowing operators to adjust pumping rates according to project requirements.
400 PSI Pumping Pressure
The machine provides pumping pressure of up to 400 PSI, based on the supplied specifications.
6 Cubic Foot Receiving Hopper
A 6 cubic foot receiving hopper provides material capacity before the material enters the pumping system.
Trailer or Skid Mounted
The D3522 can be supplied as a trailer-mounted machine or a lower-profile skid-mounted unit. This provides contractors with different options for transportation and job-site setup.
Applications of the D3522 Construction Material Pump
The D3522 is designed for several applications involving compatible materials.
Concrete Repair
The machine can support suitable concrete repair applications where controlled pumping of repair material is required.
Block Fill
The D3522 can be used for compatible block fill applications in masonry and construction projects.
Epoxy
The pump can support appropriate epoxy pumping applications when the material is compatible with the pumping system.
Plaster and Stucco
The D3522 is also designed for various plaster and stucco applications, providing versatility for specialty contractors.
D3522 Pump Specifications
Specification Details
Pump 2" D3522 Hydraulic Squeeze Pump
Pumping Pressure 400 PSI
Output 0–6 Cubic Yards Per Hour
Discharge 2" HD
Hopper 6 cu. ft.
Trailer Single 6,000 lb. capacity axle with electric braking and lights
Dimensions 166" × 88" × 54"
Weight 2,800 lbs.
Power Options
The D3522 Pump is available with multiple power options:
Kubota water-cooled diesel
24 HP Honda gasoline engine
10 HP electric motor
These options allow contractors to choose a configuration suitable for their operating environment and project requirements.
Available D3522 Options
The D3522 can be configured with additional equipment options, including:
Hydraulic receiving hopper agitator
Pendant or wireless remote
Spare tire mounted
Skid mounted with forklift tubing
Hydraulic pressure washer
Air compressor mounted
These options can provide additional flexibility when configuring the construction material pump for different job-site conditions.
Benefits of D3522 Cement Pumping Equipment
The D3522 combines compact construction with variable-speed pumping and flexible mounting options.
Key characteristics include:
2-inch hydraulic squeeze pump
Variable output from 0–6 cubic yards per hour
Up to 400 PSI pumping pressure
6 cubic foot receiving hopper
Trailer or skid-mounted configurations
Diesel, gasoline, or electric power options
Applications for concrete repair, block fill, epoxy, plaster, and stucco
For contractors looking for cement pumping equipment, the D3522 offers a compact and configurable pumping solution for suitable materials.
Choosing Construction Material Pumping Equipment
When selecting a construction material pump, contractors should consider the material type, mix consistency, aggregate size, required pumping output, discharge size, pumping pressure, power source, transportation requirements, and job-site conditions.
The D3522 provides a 2-inch discharge and variable output up to 6 cubic yards per hour. The correct configuration will depend on the specific material and application.
Before operation, users should confirm material compatibility and follow the equipment manufacturer's operating and maintenance recommendations.
