Efficient material handling is an important part of gunite, shotcrete, concrete repair, and rehabilitation work. The Blastcrete H 020 Gunite Machine Attachment is a hydraulic rotary gunite machine designed to provide variable material output and precise control for suitable spraying applications.
For contractors searching for Gunite Application Equipment or Gunite Pumping Equipment, the H 020 offers a compact attachment that can be paired with a compatible hydraulic power unit.

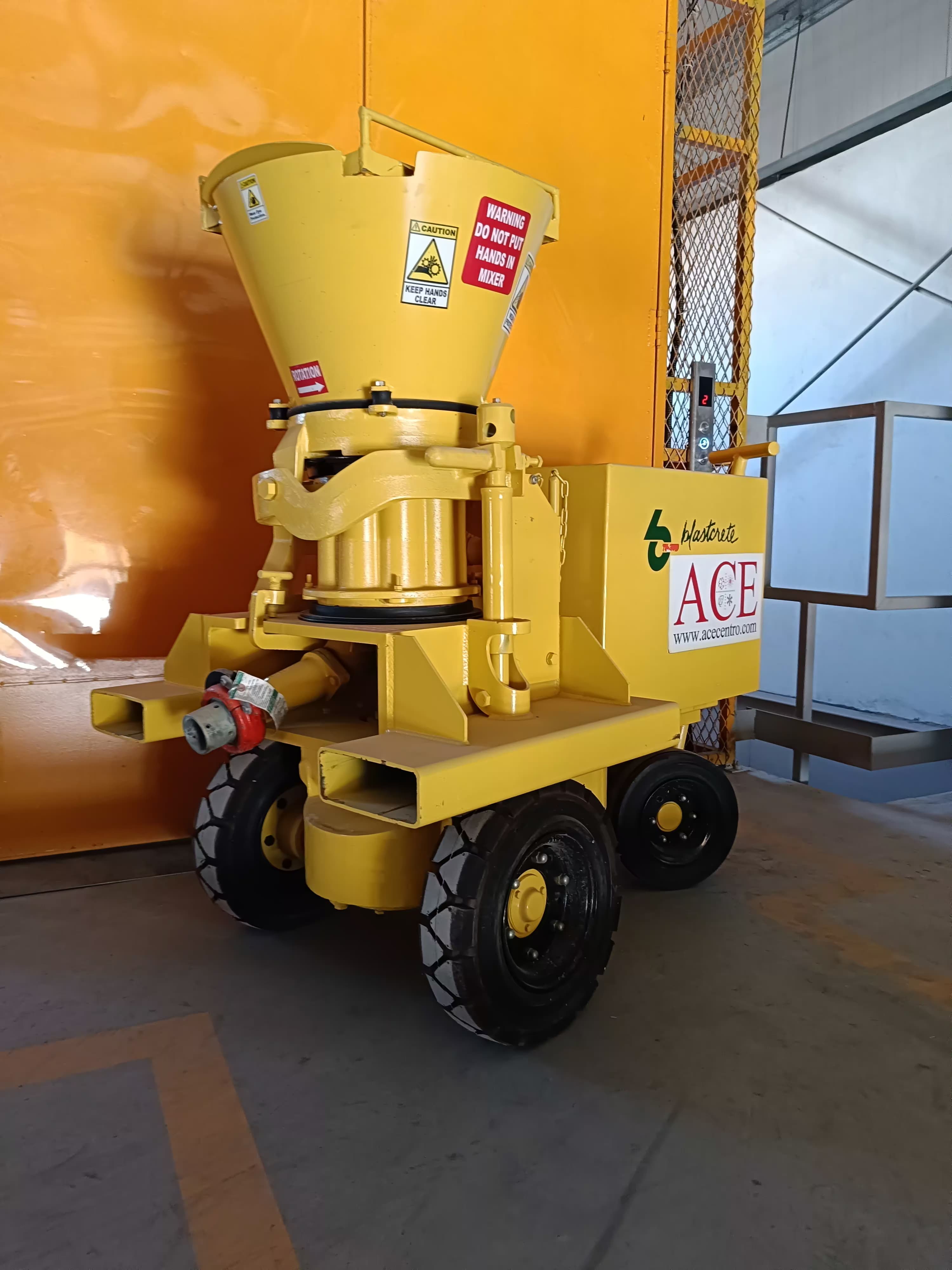

Blastcrete H 020 Gunite Machine Attachment
The Blastcrete Model H 020 is a hydraulic rotary gunite machine attachment with variable output from 0 to 5 cubic yards per hour. It features the Genuine Piccola single-point clamping system and is designed for precise material output control.
The hydraulic requirement is 10 GPM at 1,500 PSI. The unit can be used with any hydraulic power unit capable of supplying this capacity. Because the machine is hydraulically powered, the minimum air requirement is 225 CFM.
Request a Quote for the H 020
Download the H 020 Brochure
Features of the Gunite Application Equipment
The H 020 includes several features intended to support practical operation and equipment handling:
Genuine Piccola Single-Point Clamping System
Precise Material Output Control
Universal Mounting Plate
Forklift Pickup Tubing
Rotor of Your Choice
Variable output from 0–5 cubic yards per hour
Gunite Pumping Equipment Specifications
Specification H 020
Air Requirement 225 CFM minimum
Output 0–5 cubic yards per hour
Outlet 1.5 inches
Maximum Aggregate ¾ inch
Mounting Skid mount
Hydraulic Requirement 10 GPM @ 1,500 PSI
Estimated Wear Pad Life 200 tons
Dimensions 34" × 34" × 50"
Weight 1,250 lbs.
Hydraulic Operation and Material Control
The H 020 uses hydraulic power from an appropriate external hydraulic power unit. This configuration allows contractors to use an existing power source when it meets the specified 10 GPM at 1,500 PSI requirement.
Variable-speed operation provides an output range of 0–5 cubic yards per hour, allowing material delivery to be adjusted according to the application and working conditions.
Compact Design for Jobsite Applications
The H 020 measures 34 × 34 × 50 inches and weighs approximately 1,250 pounds. Its skid-mounted configuration provides a compact equipment format, while forklift pickup tubing can assist with moving and positioning the attachment.
The universal mounting plate also provides flexibility when integrating the Gunite Machine Attachment with compatible equipment.
Applications for Gunite Pumping Equipment
The H 020 can be considered for suitable applications involving:
Gunite applications
Appropriate shotcrete work
Concrete repair
Concrete rehabilitation
Construction material placement
Compatible dry-mix spraying applications
The machine has a 1.5-inch outlet and a maximum aggregate specification of ¾ inch. Always verify material compatibility and project requirements before operation.
Selecting the Right Gunite Application Equipment
When choosing Gunite Application Equipment, contractors should consider several factors:
Required production rate: The H 020 provides 0–5 cubic yards per hour.
Hydraulic capacity: The required hydraulic supply is 10 GPM at 1,500 PSI.
Air supply: A minimum of 225 CFM is specified.
Material size: Maximum aggregate is ¾ inch.
Mounting: The machine uses a skid mount and universal mounting plate.
Jobsite handling: Forklift pickup tubing is provided.
