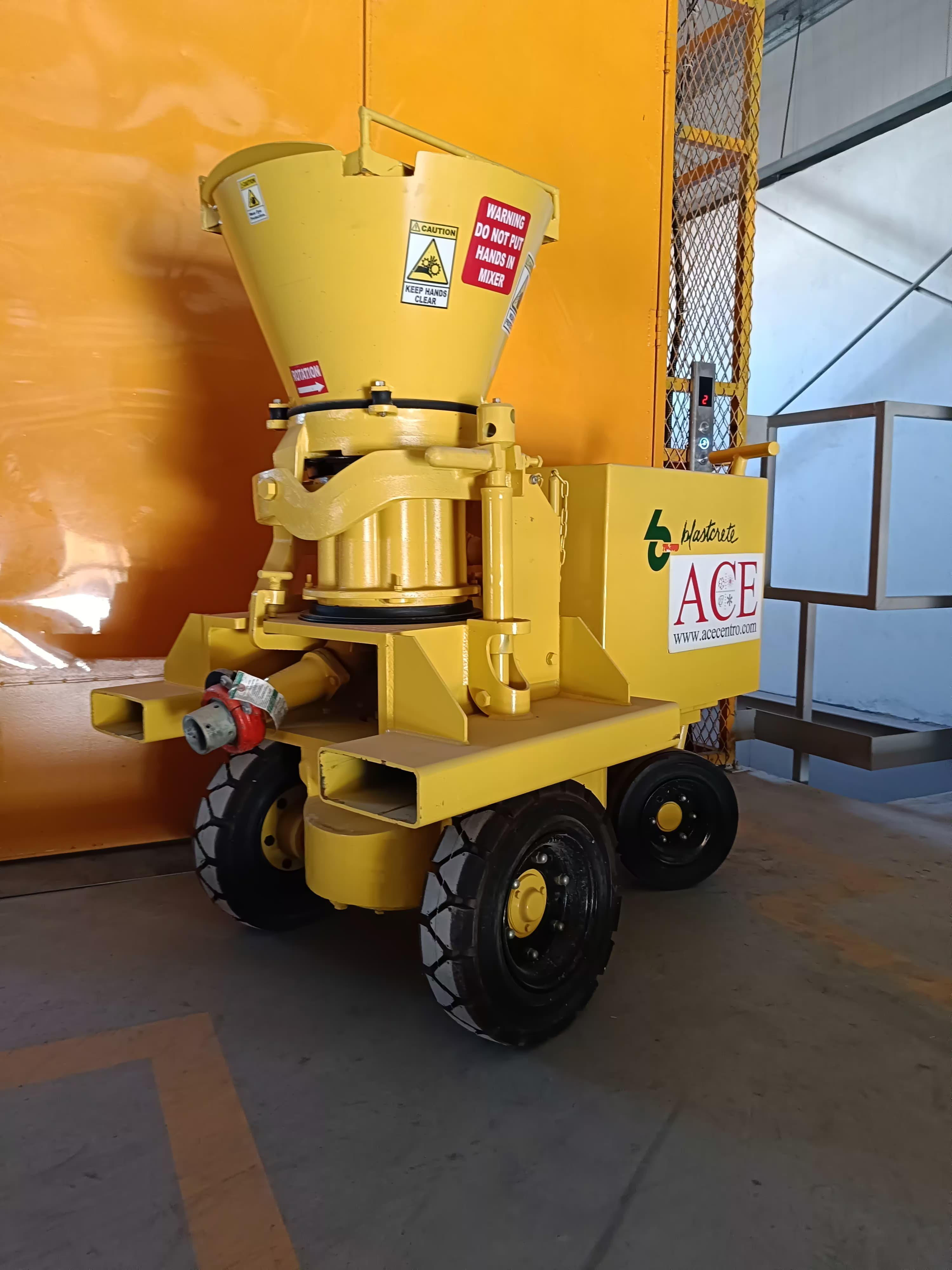

Modern restoration and construction projects often require equipment capable of placing cementitious materials with controlled and consistent output. The Blastcrete Model H 020 is a hydraulic rotary Gunite Machine Attachment designed for variable material delivery from 0 to 5 cubic yards per hour.
For contractors researching Gunite Equipment for Restoration or a Gunite Machine for Construction Projects, the H 020 offers a compact skid-mounted configuration, precise output control, and a hydraulic power system designed for use with a compatible hydraulic power unit.
Gunite Equipment for Restoration
Restoration work can involve repairing or rebuilding concrete surfaces where controlled material placement is important. Gunite equipment can be considered for suitable restoration applications where the selected material and spraying method meet project requirements.
The H 020 provides variable output from 0–5 cubic yards per hour, allowing operators to adjust the delivery rate within the machine's rated range.
Its Genuine Piccola single-point clamping system is designed to provide secure rotor clamping, while the universal mounting plate supports integration with compatible equipment.
Gunite Machine for Construction Projects
A Gunite Machine for Construction Projects can provide contractors with a specialized method for placing suitable cementitious materials. The H 020's hydraulic operation requires 10 GPM at 1,500 PSI, making it compatible with hydraulic power units capable of supplying this capacity.
Because the H 020 is hydraulically powered, its minimum air requirement is 225 CFM.
Key Features of the Blastcrete H 020
The machine includes:
Variable output of 0–5 cubic yards per hour
Genuine Piccola single-point clamping system
Precise material output control
Universal mounting plate
Forklift pickup tubing
Rotor selection
Skid-mounted configuration
These features provide contractors with flexibility when configuring the Gunite Machine Attachment for appropriate projects.
H 020 Technical Specifications
Specification Details
Machine Type Hydraulic rotary gunite machine attachment
Output 0–5 cubic yards/hour
Air Requirement 225 CFM minimum
Hydraulic Requirement 10 GPM @ 1,500 PSI
Outlet 1.5 inches
Maximum Aggregate ¾ inch
Mounting Skid mount
Estimated Wear Pad Life 200 tons
Dimensions 34" × 34" × 50"
Weight 1,250 lbs.
Compact Design for Construction and Restoration
The H 020 measures 34 × 34 × 50 inches and weighs approximately 1,250 pounds. Forklift pickup tubing can assist with equipment handling, while the skid-mounted design provides a compact configuration for suitable jobsites.
The 1.5-inch outlet and maximum aggregate size of ¾ inch are important specifications to consider when selecting compatible materials.
Choosing Gunite Equipment for Your Project
When evaluating Gunite Equipment for Restoration or a Gunite Machine for Construction Projects, contractors should review:
Required material output.
Maximum aggregate size.
Material compatibility.
Hydraulic power availability.
Required air capacity.
Equipment dimensions and handling requirements.
Project-specific operating and safety requirements.
