Modern construction projects require equipment that combines performance, mobility, and operator convenience. The D3522 Mixer / Pump is designed to provide reliable pumping and mixing performance while offering flexible control options, including a wireless remote concrete pump configuration and a pendant remote mixer pump option.
With its hydraulic squeeze pump, integrated spiral mixer, and advanced remote-control capabilities, the D3522 helps contractors improve efficiency, maintain precise operation, and reduce unnecessary downtime on demanding jobsites.
Improved Control with a Wireless Remote Concrete Pump
A wireless remote concrete pump provides operators with greater freedom of movement and improved visibility during pumping operations. Instead of staying directly beside the machine, operators can control important functions from a convenient location near the application area.
Benefits of wireless remote operation include:
Improved operator mobility
Better visibility during material placement
Easier control in challenging jobsite conditions
Increased operating efficiency
Reduced need for additional personnel
The D3522 Mixer / Pump can be equipped with wireless remote capability, allowing contractors to adapt the machine to different project requirements.
Pendant Remote Mixer Pump Option for Reliable Operation
The pendant remote mixer pump option provides a practical control solution for operators who prefer a direct wired connection. Pendant controls offer easy access to essential machine functions while maintaining reliable communication between the operator and equipment.
Advantages include:
Simple operation
Direct equipment control
Convenient handling during pumping tasks
Reliable performance in various environments
Whether using wireless or pendant control, the D3522 gives operators greater flexibility during concrete, grout, mortar, and shotcrete applications.

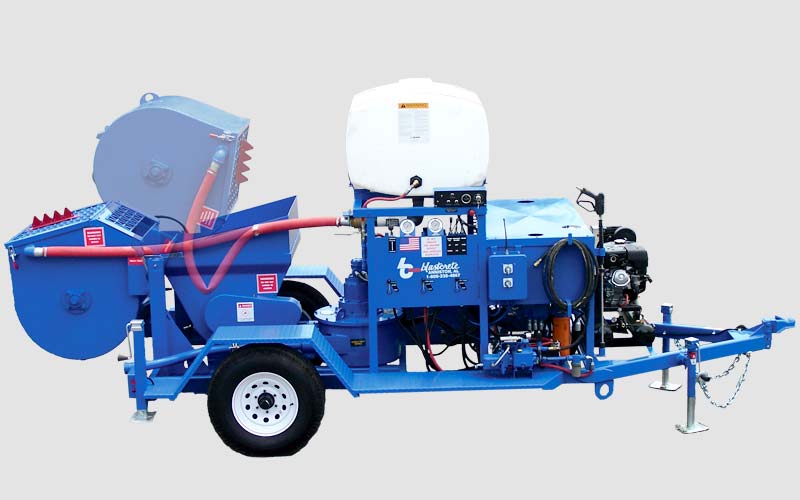

D3522 Mixer / Pump Overview
The D3522 Mixer / Pump combines mixing and pumping into one compact, trailer-mounted unit designed for professional construction applications.
The system includes:
2-inch hydraulic squeeze pump
Infinitely variable pumping speed from 0–6 cubic yards per hour
9 cu. ft. hydraulic spiral mixer
Hydraulic mixer dump system
12 cu. ft. receiving hopper with hydraulic agitator
High-speed single axle trailer
Electric braking package
Trailer lighting system
The primary wear component is the rubber pumping tube, which can typically be replaced in approximately 20 minutes, helping reduce maintenance time and keep projects moving.
Key Features
Hydraulic Spiral Mixer
The integrated mixer provides consistent material preparation.
Features include:
9 cu. ft. capacity
Hydraulic dump operation
Clean-out door for easier maintenance
Receiving Hopper System
Designed for efficient material handling:
12 cu. ft. capacity
Hydraulic agitator
Clean-out door
Reliable Engine Performance
The D3522 is equipped with dependable power options:
29 HP Kubota water-cooled diesel engine
Efficient hydraulic power delivery
Designed for continuous construction use
Hydraulic Squeeze Pump System
The pump system delivers:
Smooth material flow
Adjustable pumping speed
Reliable cement-based material handling
Reduced maintenance requirements
Durable Pumping Tube Design
The D3522 features:
Long-lasting rubber pumping tube
Approximately 20-minute replacement process
Reduced downtime
Lower maintenance costs
Technical Specifications
Specification Value
Length 204 inches
Width 88 inches
Height (Water Tank) 89 inches
Height (Mixer Dump Position) 86 inches
Charging Height 48 inches
Output Capacity 0–6 YPH
Mixer Capacity 9 cu. ft.
Receiving Hopper Capacity 12 cu. ft.
Power Options
The D3522 Mixer / Pump offers flexible power configurations.
Kubota Diesel Engine
Kubota V1505
29 HP
Water-cooled diesel engine
Electric Motor
20 HP electric motor
Starter and disconnect included
Suitable for indoor applications
Optional Equipment
The D3522 can be customized with additional options, including:
Pendant remote control
Wireless remote control
150-gallon water tank with 2-inch flow meter
Spare tire mount
Hydraulic pressure washer
Dual axle trailer
Mounted air compressor
Benefits of the D3522 Remote-Controlled Mixer / Pump
For contractors seeking a wireless remote concrete pump or a pendant remote mixer pump, the D3522 provides:
Flexible operator control options
Improved jobsite efficiency
Complete mixing and pumping capability
Adjustable output control
Reliable hydraulic squeeze pump performance
Heavy-duty planetary gearbox drive
Durable rubber pumping tube
Fast maintenance procedures
Reduced operating costs
Easy transportation between jobsites
Applications
The D3522 Mixer / Pump is ideal for:
Concrete pumping
Grout placement
Mortar pumping
Shotcrete applications
Masonry construction
Foundation repair
Structural rehabilitation
Infrastructure projects
Industrial maintenance
