Efficient material handling is an important part of successful gypsum flooring and field-batching projects. Contractors need equipment that can mix materials effectively, maintain a steady supply, and deliver consistent pumping performance throughout the job.

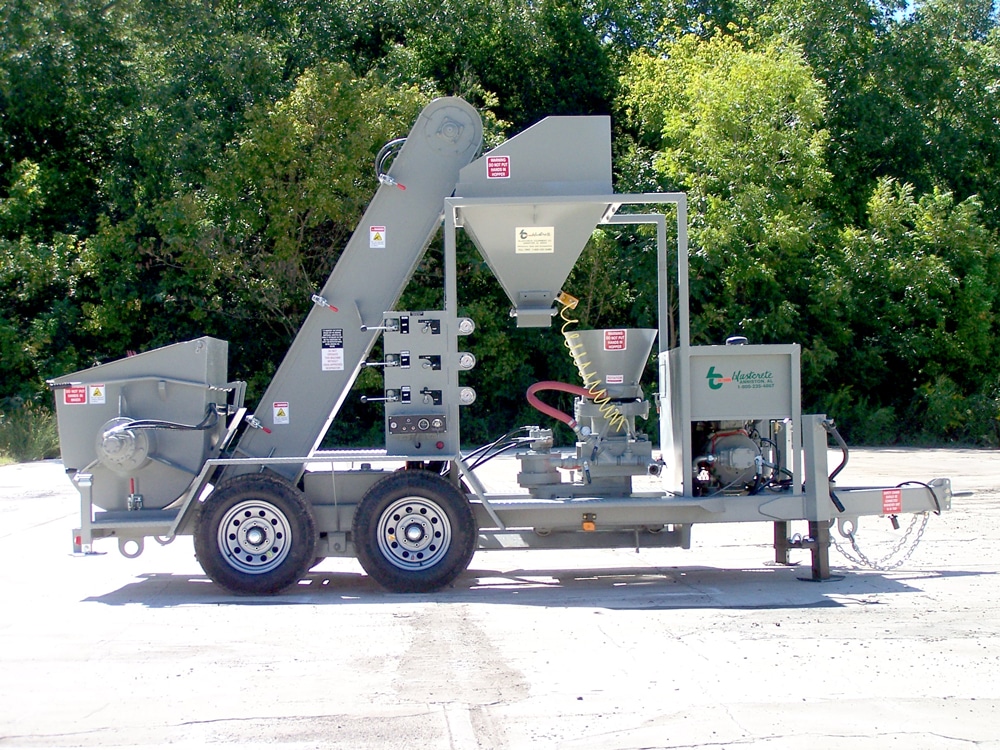

The Blastcrete D6528 Mixer/Pump is designed for field batching and pumping up to 12 cubic yards per hour. By combining a hydraulic spiral mixer, receiving hopper, and hydraulic squeeze pump in one machine, the D6528 provides a practical solution for contractors looking for a professional gypsum pumping machine and a high performance mixer pump.
D6528 for Professional Gypsum Applications
The D6528 is built around a simple material-handling sequence. Material is mixed in the machine's 9 cubic foot hydraulic spiral mixer before being hydraulically discharged into the 12 cubic foot receiving hopper.
From the hopper, the material enters the D6528's 3-inch hydraulic squeeze pump. The pump provides variable output from 0 to 12 cubic yards per hour, allowing operators to control material delivery according to project requirements.
This integrated approach allows contractors to manage field batching and pumping with a single equipment system.
Professional Gypsum Pumping Machine
Gypsum flooring applications can require reliable material delivery from the mixing area to the placement location. A dedicated professional gypsum pumping machine can help simplify this process by combining mixing and pumping functions.
The D6528 is designed to provide a direct material path:
Batching → Mixing → Hydraulic Dump → Receiving Hopper → Pumping
This workflow can reduce unnecessary material handling and help crews maintain an organized production process.
The D6528 is a popular solution for gypsum flooring applications and is designed with features intended to support practical job-site operation.
High Performance Mixer Pump for Field Batching
A high performance mixer pump should provide sufficient mixing capacity, dependable pumping, and flexibility for different operating conditions.
The D6528 offers:
9 cubic foot hydraulic spiral mixer
12 cubic foot receiving hopper
3-inch hydraulic squeeze pump
Variable output from 0 to 12 cubic yards per hour
Hydraulic mixer dump
Hydraulic hopper agitator
Heavy-duty planetary gearbox
Diesel and electric power configurations
These components work together to provide an integrated field-batching and pumping system.
9 Cubic Foot Hydraulic Spiral Mixer
The D6528 features a 9 cubic foot hydraulic spiral mixer designed for field batching.
The mixer includes a hydraulic dump function that allows material to move directly into the receiving hopper after mixing. A clean-out door is also provided to help with equipment cleanup and routine maintenance.
The hydraulic design connects the mixing stage directly with the pumping process, helping contractors move material efficiently through the machine.
12 Cubic Foot Receiving Hopper
After mixing, the material is discharged into a 12 cubic foot receiving hopper.
The hopper is equipped with a hydraulic agitator that helps maintain material movement before it reaches the squeeze pump. This creates an intermediate stage between mixing and pumping while keeping the material-handling process integrated.
The hopper's capacity also provides a suitable material reservoir for the pumping system.
3-Inch Hydraulic Squeeze Pump
The D6528 uses a 3-inch hydraulic squeeze pump driven by a heavy-duty planetary gearbox.
With variable-speed operation from 0 to 12 cubic yards per hour, the pump allows operators to adjust material delivery according to the application.
The pumping system also incorporates long-lasting pumping tubes, supporting the machine's focus on practical, dependable operation.
Consistent Material Delivery
For gypsum flooring projects, maintaining an appropriate material flow can be an important part of coordinating the pumping and placement crews.
The D6528's variable-speed pump allows operators to adjust the output rather than operating at one fixed rate. This flexibility can help contractors coordinate pumping with the pace of material placement.
The integrated hopper and hydraulic agitator also provide a dedicated transition between mixing and pumping.
D6528 for Gypsum Flooring
The D6528 is particularly well suited to gypsum flooring applications. Its integrated design allows contractors to batch material in the field and pump it directly to the application area.
Instead of using separate machines for mixing and pumping, the D6528 combines both functions into one unit. This can simplify equipment logistics and provide a more direct material-handling process.
For contractors working on gypsum flooring projects, the D6528 offers a combination of mixing capacity and variable pumping output designed for field applications.
Power Options
The D6528 is available with diesel and electric power options, providing flexibility for different job-site environments.
Diesel Configuration
The diesel version features a Kubota V1505 29 HP water-cooled diesel engine.
This configuration provides an independent power source for field operations and can be useful where electrical service is limited or unavailable.
Electric Configuration
The electric version uses a 30 HP electric motor with starter and disconnect.
This configuration can be appropriate for projects where suitable electrical power is available.
D6528 Specifications
Specification D6528
Length 204 inches
Width 88 inches
Water Tank Height 89 inches
Mixer Height, Dump Position 86 inches
Charging Height 48 inches
Output Capacity 0–12 cubic yards per hour
Mixer Capacity 9 cubic feet
Receiving Hopper Capacity 12 cubic feet
Pump 3-inch hydraulic squeeze pump
Optional Equipment
The D6528 can be configured with several options to meet different contractor and job-site requirements.
Available options include:
Pendant or wireless remote
150-gallon water tank with 2-inch flow meter
Spare tire mounted
Hydraulic pressure washer
Dual axles
Mounted air compressor
These options can add flexibility for equipment control, transportation, cleaning, and water management.
Designed for Demanding Field Applications
A professional pumping machine needs to fit the realities of construction work. The D6528 combines hydraulic mixing, material handling, and pumping in a single system while providing variable output control.
Its 9 cubic foot mixer and 12 cubic foot hopper provide the material-handling capacity needed to support field batching, while the 3-inch squeeze pump provides controlled material delivery.
The combination of these components makes the D6528 a practical high performance mixer pump for gypsum flooring and other compatible applications.
D6528: An Integrated Mixing and Pumping Solution
The D6528 is designed to simplify the process of preparing and delivering material. The mixer handles batching, the hydraulic dump transfers material to the hopper, and the squeeze pump delivers it to the placement area.
Key features include:
9 cubic foot hydraulic spiral mixer
12 cubic foot receiving hopper
3-inch hydraulic squeeze pump
0–12 cubic yards per hour variable output
Hydraulic agitator
Heavy-duty planetary gearbox
Diesel or electric power options
Multiple optional accessories
For contractors searching for a professional gypsum pumping machine, the D6528 provides an integrated solution designed around field batching and pumping.
Choose the D6528 Mixer/Pump
The Blastcrete D6528 combines mixing and pumping capabilities into one machine designed for field applications. Its hydraulic spiral mixer, receiving hopper, and variable-speed squeeze pump make it a useful option for gypsum flooring and other compatible material-placement projects.
If you are evaluating a high performance mixer pump for professional field batching, the D6528 offers flexible power configurations, controlled pumping output, and an integrated material-handling system.
D6528: Professional Gypsum Pumping Machine for High-Performance Applications
