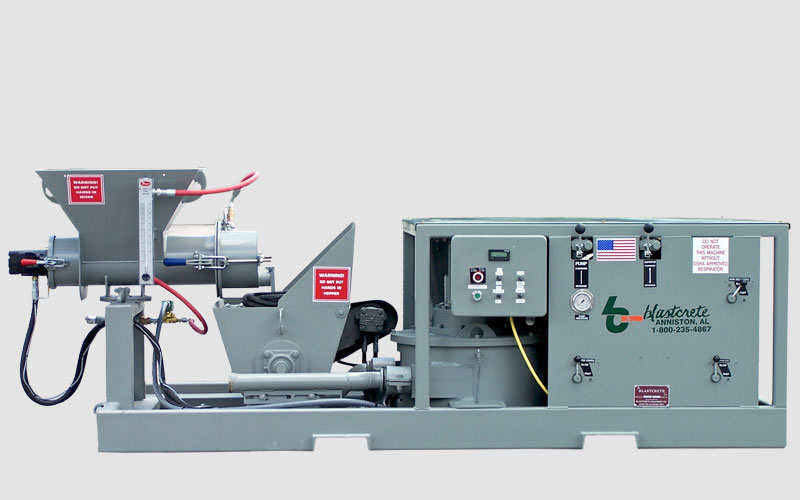

Looking for reliable Blastcrete refractory equipment for demanding industrial applications? The Blastcrete MX-10 Mixer/Pump is a specialized mixing and pumping machine designed for dense refractory shotcrete and pump-cast installations. Combining a high-torque hydraulic pan mixer with a 3-inch ultra-high-pressure swing tube piston pump, the MX-10 provides an integrated solution for preparing and delivering refractory materials in challenging industrial environments.
Since 1996, the MX-10 has been an established choice for monolithic refractory installations. With a specified pumping pressure of 2,200 PSI and a stated material delivery capacity of up to 10 tons per hour, this machine is designed to support demanding refractory placement operations.
The MX-10 is also commonly used to pump suitable refractory materials over vertical distances exceeding 300 feet, depending on material properties, pipeline configuration, and operating conditions. Its swing-out receiving hopper provides convenient access to the lower hopper and swing tube section for cleaning and maintenance.
Request a Quote or Download the Brochure to discover how Blastcrete refractory equipment can support your industrial refractory installation requirements.
What Is Blastcrete Refractory Equipment?
Blastcrete refractory equipment is designed to support specialized material mixing, pumping, and placement applications. The MX-10 Mixer/Pump combines material preparation and high-pressure pumping in one machine, making it suitable for contractors working with compatible refractory materials.
Its high-torque hydraulic pan mixer prepares refractory mixes, while the ultra-high-pressure piston pump delivers the material through a suitable pumping line. This integrated configuration can help contractors manage demanding refractory installation projects in industrial facilities.
For businesses searching for reliable refractory pumping machinery, the Blastcrete MX-10 offers a specialized solution for refractory shotcrete and pump-cast applications.
Key Features of the Blastcrete MX-10 Mixer/Pump
1. Ultra-High-Pressure Swing Tube Piston Pump
The MX-10 features a 3-inch × 24-inch ultra-high-pressure swing tube piston pump with a specified pumping pressure of 2,200 PSI.
This system is designed for demanding refractory pump-cast and shotcrete applications where compatible materials must be transported through a suitable pumping line.
The high-pressure pumping configuration supports industrial installations involving dense refractory materials and extended delivery distances.
2. High-Torque Hydraulic Pan Mixer
The MX-10 includes a hydraulic pan mixer with a capacity of 2,200 pounds.
The stated mixing time is approximately 1.5 to 2 minutes, helping prepare compatible refractory materials for pumping and placement.
Consistent mixing is important for achieving the material properties required by the selected installation method. Operators should follow the refractory manufacturer's recommended mixing procedures.
3. High Material Output Capacity
The Blastcrete MX-10 is designed to deliver up to 10 tons of refractory material per hour under suitable operating conditions.
Its technical specifications also list a volumetric output range of 0–12 cubic yards per hour. Actual production depends on material density, mix formulation, pipeline configuration, and operating conditions.
This capacity makes the MX-10 worth evaluating for industrial refractory projects that require substantial material placement.
4. Extended Vertical Pumping Capability
The MX-10 is commonly used to pump suitable refractory materials over vertical distances exceeding 300 feet.
This capability can support installations where refractory materials must reach elevated or difficult-to-access locations in industrial facilities.
Actual pumping performance depends on material characteristics, pipeline diameter and layout, elevation, and job-site conditions.
5. Swing-Out Receiving Hopper
The MX-10 features a swing-out receiving hopper with a stated capacity of 2,500 pounds and a hydraulic agitator.
The swing-out design provides convenient access to the lower hopper and swing tube section for cleaning and maintenance. Forklift tubing mounted to the lower hopper also facilitates flat-pack removal.
These design features support equipment servicing and handling when performed according to the manufacturer's procedures.
6. Integrated Water Measurement System
The machine includes a Fill-Rite water meter and a 20-gauge dousing bucket for fast water introduction.
These components support water measurement and material preparation. Water addition should follow the refractory manufacturer's recommended mix design to maintain the required material properties.
7. Reliable Electronic Controls
The MX-10 features solid-state electronics and solid-state valve control. CE certification is also listed among its features.
Confirm the applicable certification documentation and electrical
Blastcrete Refractory Equipment MX-10 Mixer/Pump for Industrial Applications
